SMC CD55B25-5M Compact Cylinder

In stock3 unitsReady to ship

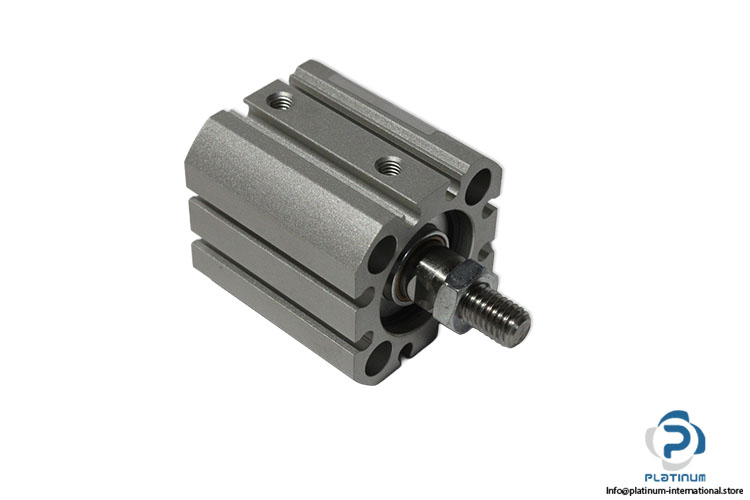

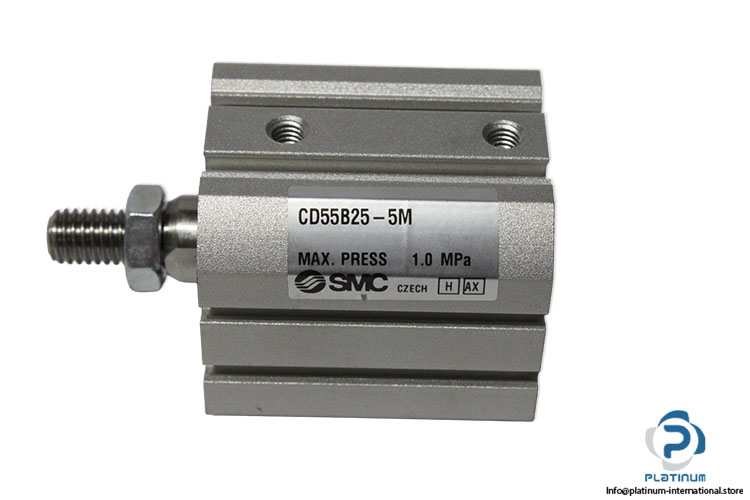

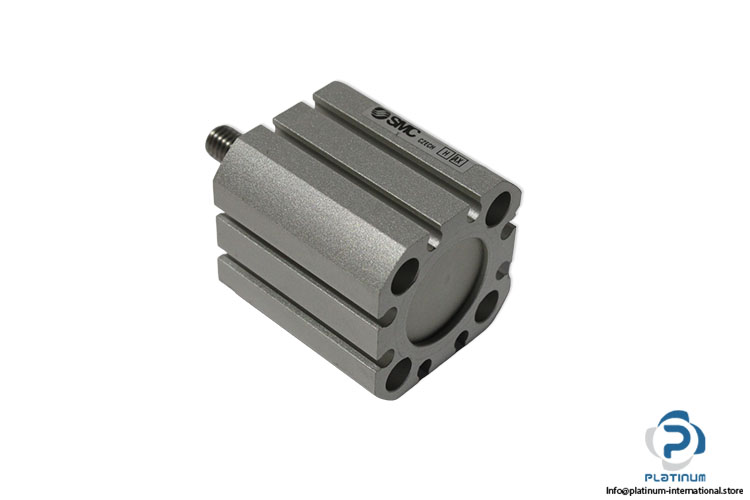

The SMC CD55B25 5M Compact Cylinder is a precision pneumatic actuator featuring a 25 mm bore, 5 mm stroke, built-in magnet, aluminum alloy body, and stainless steel piston rod. Designed for reliable single-acting operation, it is ideal for compact industrial automation and pneumatic motion applications.

Manufacturer
SMC
SKU
1097439
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

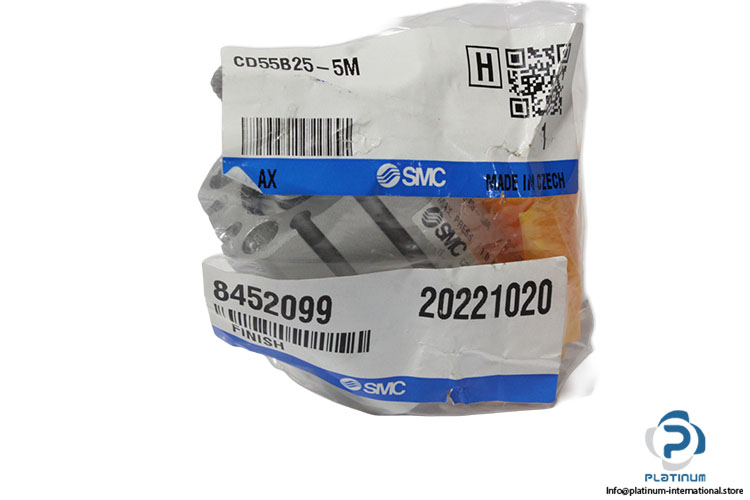

Ref. No.8452099 20221020
CodeH AX
SeriesC55
FluidAir
Stroke5 mm
Bore Size25 mm
Operating ModeSingle acting, Single Rod end male thread
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole/Both ends tapped common (Standard)
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa
Piston speed50 to 500 mm/s
Cushion TypeRubber bumper on both ends
LubricationPneumatic (Non-lube)
Port size5MM
Material BodyAluminum alloy
Material Piston rodStainless steel
Material SealNBR
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097439
Weight0,20
