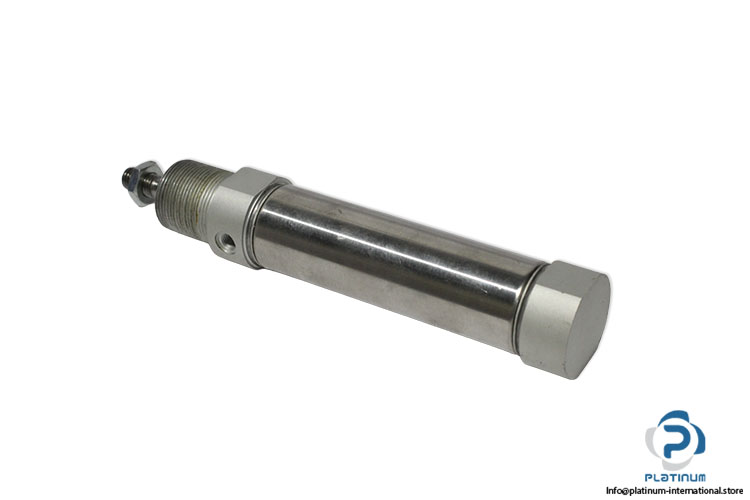

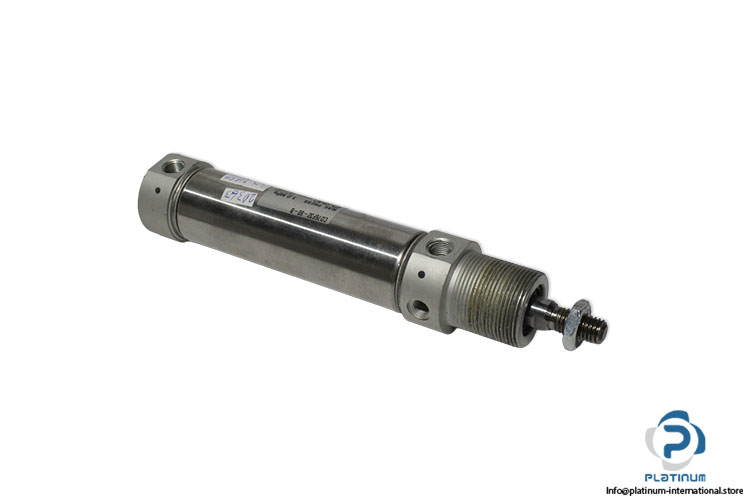

SMC CD76F32-80-B AIR Cylinder
New
In stock1 unitReady to ship
Air Cylinder SMC CD76F32-80-B Air Cylinder is a double-acting pneumatic cylinder with 32 mm bore, 80 mm stroke, built-in magnet, front nose mounting, and operating pressure up to 1.0 MPa for industrial automation applications.
80ActingActuatorAirAutomationBbuiltC76CD76F32CompactCushionCylinderDoubleFrontinIndustrialMAGnosePneumaticRODRubberSingleSMC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

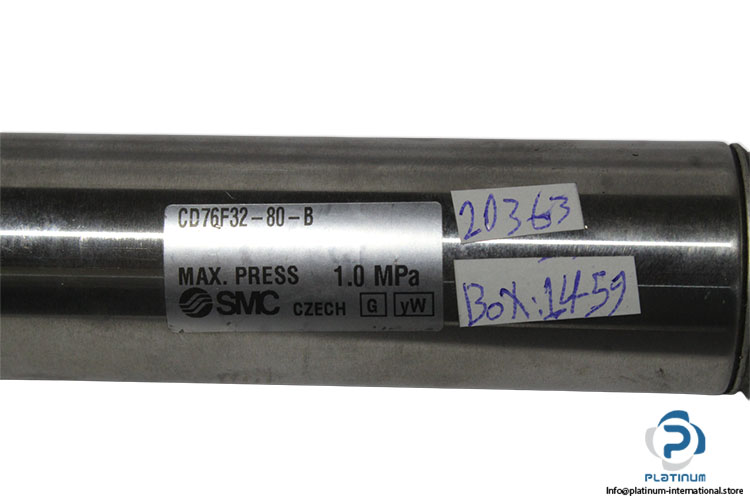

| Code | G yW |
| Series | C76 |
| Fluid | Air |
| Stroke | 80 mm |
| Bore Size | 32 mm |
| Piston Rod Diameter | 12 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Rubber cushion (Standard) |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Front nose |
| Magnet | Built-in magnet |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M10 x 1.5 |
| Port size | G1/8 |
| Material Rod cover | aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | Carbon steel |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097354 |
| Weight | 0,40 |
