SMC CD85F20-350-B-X2018 ISO Cylinder
New
In stock1 unitReady to ship

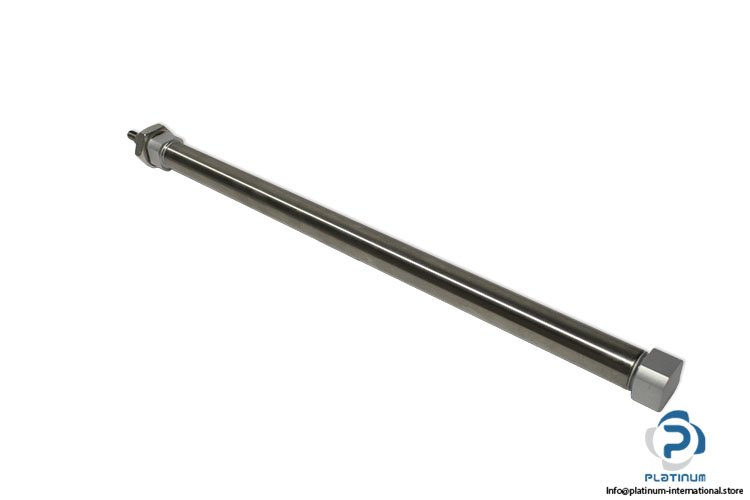

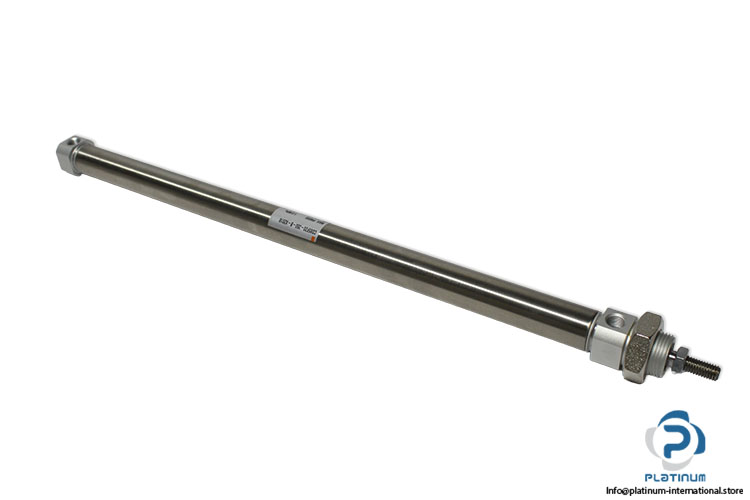

ISO Cylinder SMC CD85F20-350-B-X2018 ISO Cylinder is a double acting pneumatic cylinder with 350 mm stroke, 20 mm bore, built-in magnet, front nose mounting, and special long stroke configuration for precision motion control applications
350ActingActuatorAirBC85CD85F20CylinderDoubleFrontIndustrialISOlongmountnosePneumaticRODSingleSMCStrokeX2018
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

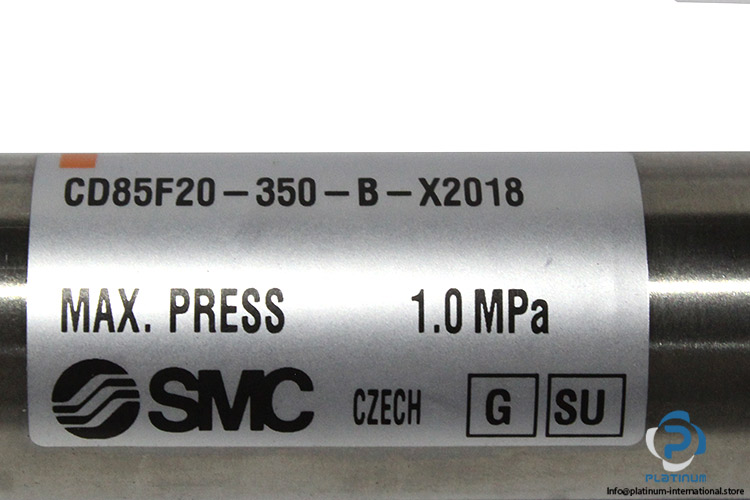

| Code | G SU |
| Series | C85 |
| Fluid | Air |
| Stroke | 350 mm |
| Bore Size | 20 mm |
| Piston Rod Diameter | 8 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Rubber cushion |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Front nose |
| Magnet | Built-in magnet |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M8 x 1.25 |
| Port size | G1/8 |
| Suffix | X2018, Special order suffix indicating a Long Stroke |
| Material Rod cover | aluminum alloy |
| Material Seals | NBBR |
| Material Piston Rod | stainless steel |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097352 |
| Weight | 0,45 |
