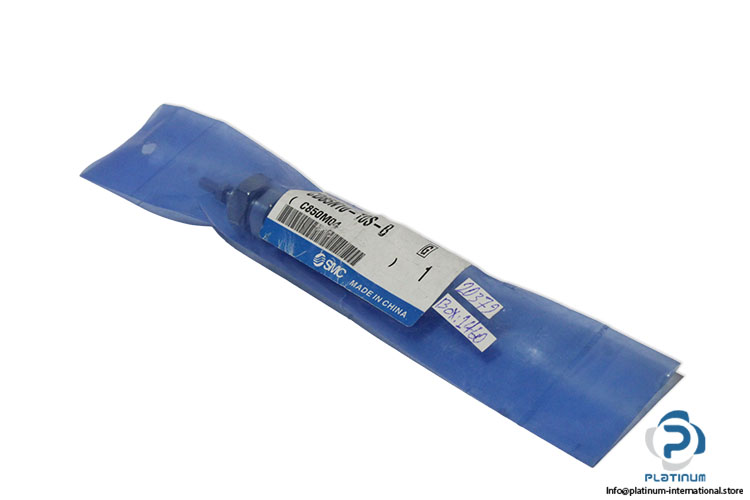

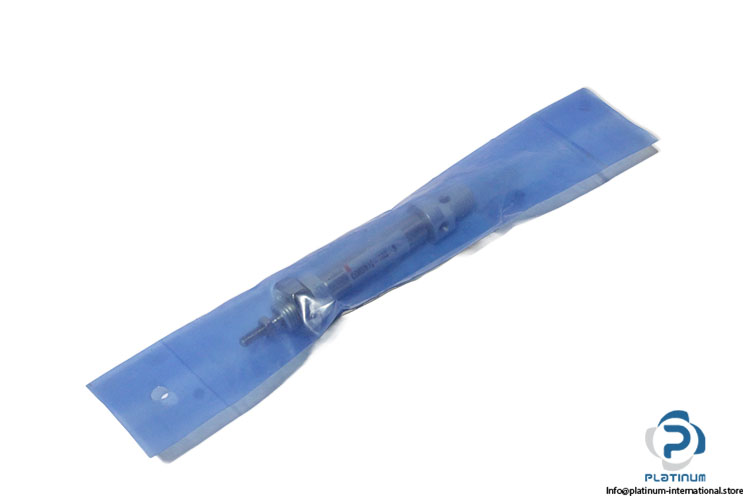

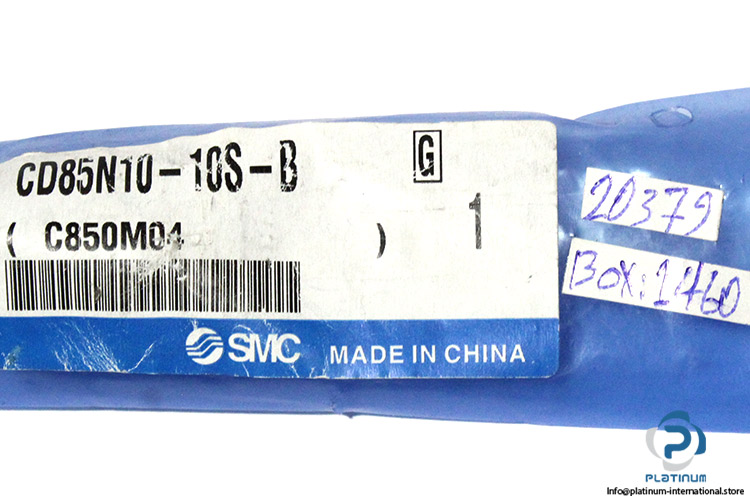

SMC CD85N10-10S-B ISO Cylinder
New
In stock6 unitsReady to ship
ISO Cylinder SMC CD85N10-10S-B ISO Cylinder is a compact pneumatic cylinder with 10 mm bore and 10 mm stroke, double acting single rod operation, built-in magnet, and operating pressure up to 1.0 MPa for precision automation applications.
ActingActuatorAirAluminumC85CompactCylinderDoubleIndustrialISOMagnetPneumaticReturnRODSingleSMCspringStandard
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | G / C850M04 |
| Series | C85 |
| Fluid | Air |
| Stroke | 10 mm |
| Bore Size | 10 mm |
| Piston Rod Diameter | 4 mm |
| Operating Mode | Double acting, Single rod |
| Action | Spring Return |
| Cushion Type | Rubber cushion (standard) |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Basic integrated clevis (N-type) |
| Magnet | Built-in magnet |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M4 x 0.7 |
| Port size | 5mm |
| Material Rod cover | aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | stainless steel |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097371 |
| Weight | 0,05 |
