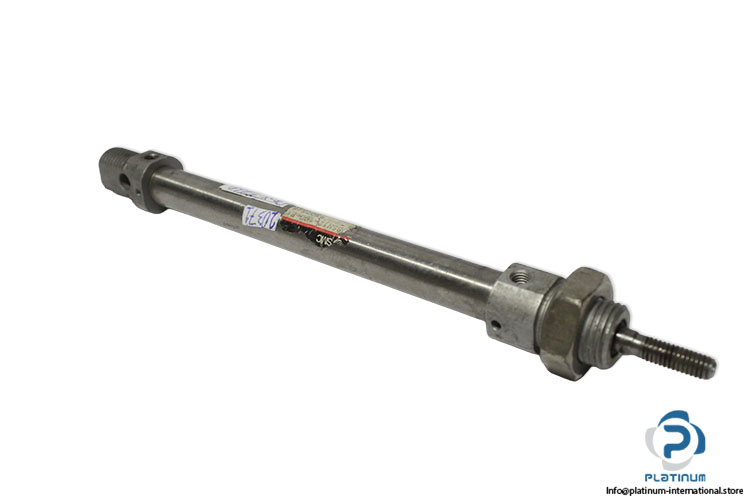

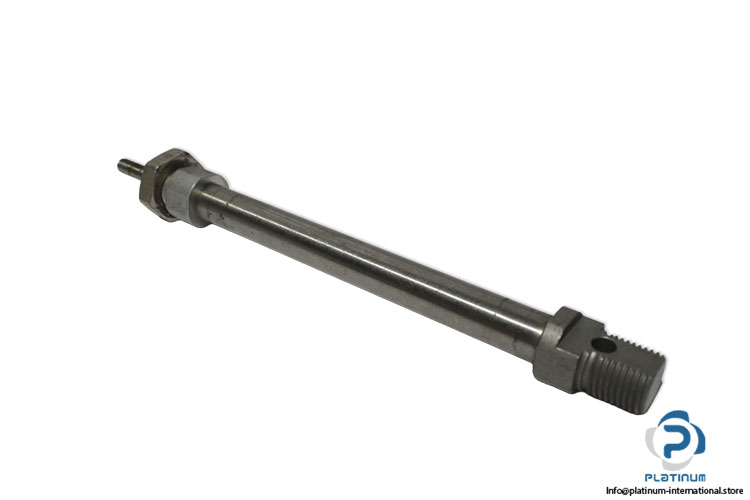

SMC CD85N12-100-B ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder SMC CD85N12-100-B ISO Cylinder is a double-acting pneumatic cylinder with 100 mm stroke, 12 mm bore, stainless steel piston rod, built-in magnet, and operating pressure up to 1.0 MPa for industrial automation applications.
100ActingActuatorAirBC85CD85N12CompactCylinderDoubleIndustrialISOPneumaticRODSingleSMCstainlessSteel
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

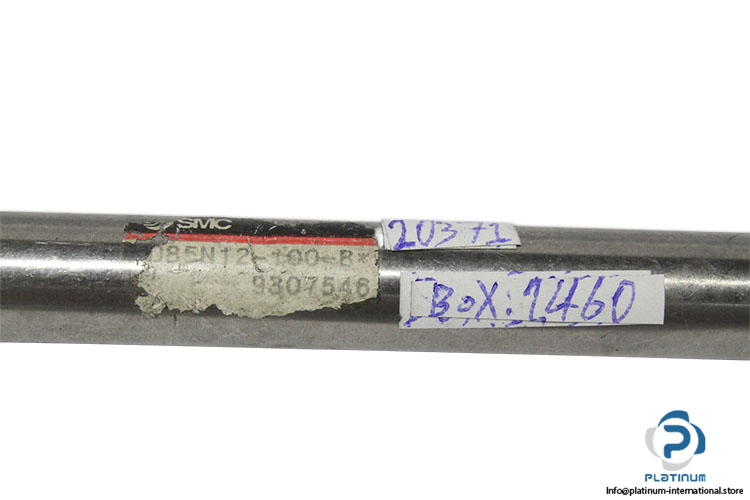

| Code | 9307546 |
| Series | C85 |
| Fluid | Air |
| Stroke | 100 mm |
| Bore Size | 12 mm |
| Piston Rod Diameter | 6 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Rubber bumper (standard) |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Basic integrated clevis (N-type) |
| Magnet | Built-in for auto-switch capability |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M6 x 1 |
| Port size | 5 mm |
| Material Rod cover | aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | stainless steel |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097364 |
| Weight | 0,10 |
