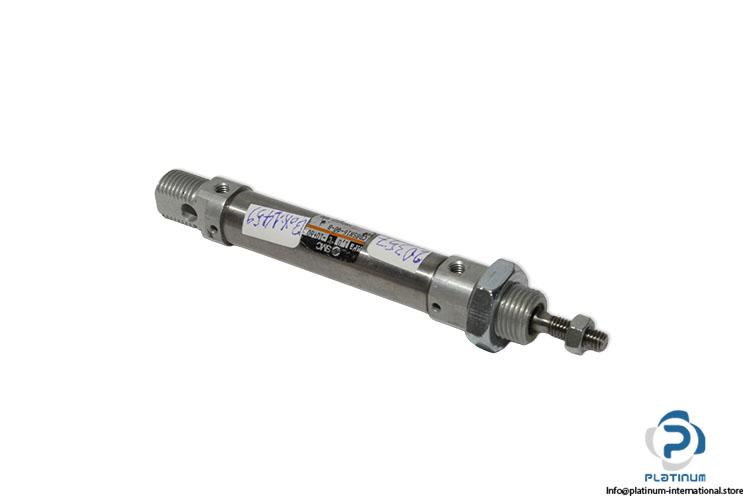

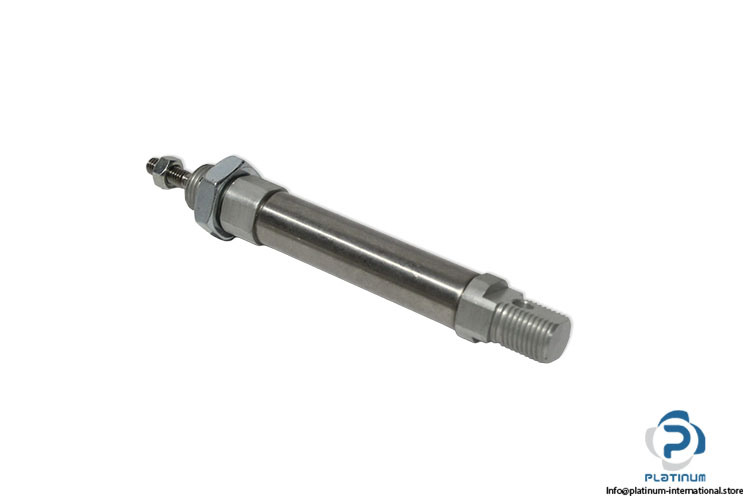

SMC CD85N16-40-B ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder SMC CD85N16-40-B is a compact double acting ISO pneumatic cylinder with 16 mm bore, 40 mm stroke, built-in magnet, clevis mounting and stainless steel piston rod for reliable automation performance.
40ActingActuatorAirBC85CD85N16CompactCylinderDoubleIndustrialISOLinearPneumaticRODSeriesSMCstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

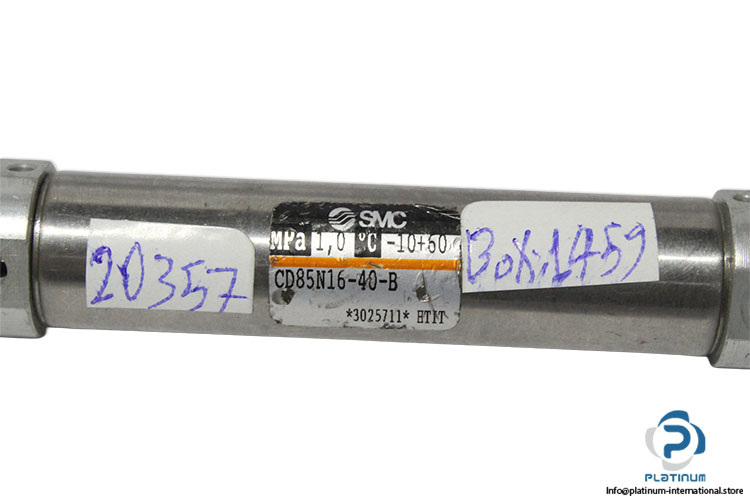

| Code | *3025711* BTIT |
| Series | C85 |
| Fluid | Air |
| Stroke | 40 mm |
| Bore Size | 16 mm |
| Piston Rod Diameter | 6 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Rubber cushion (Standard) |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Basic integrated clevis (N-type) |
| Magnet | Built-in magnet |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M6 x 1 |
| Port size | 5mm |
| Material Rod cover | aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | stainless steel |
| Ambient and fluid temperature | -20 to 80°C |
| Operating temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097348 |
| Weight | 0,10 |
