SMC CD85N25-300C-B ISO Cylinder
New
In stock1 unitReady to ship

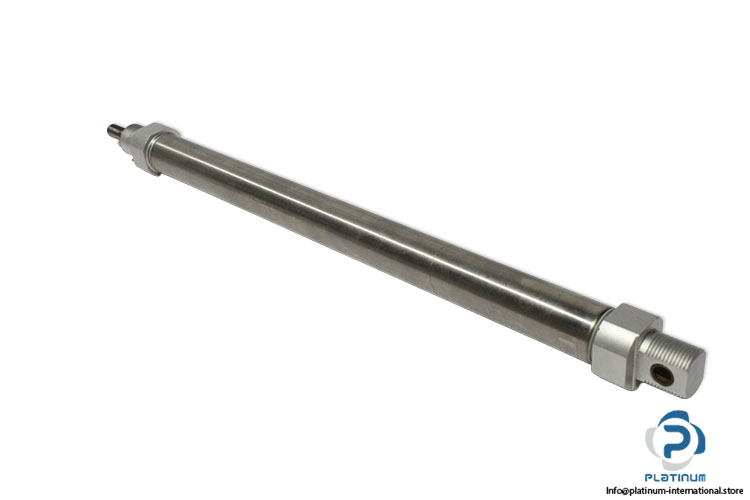

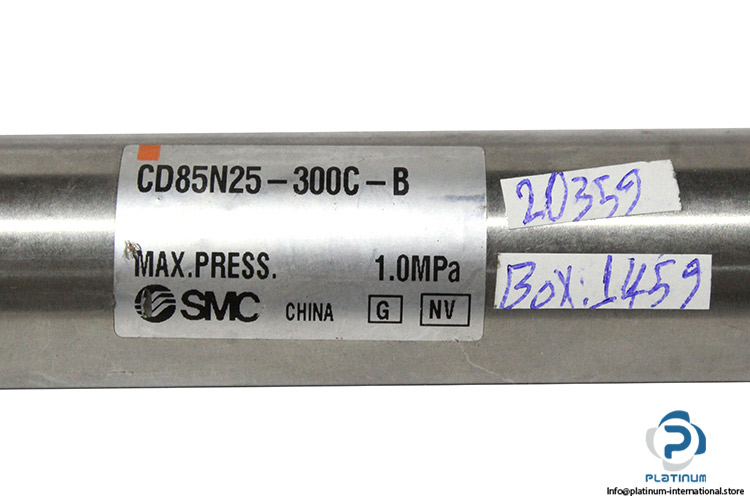

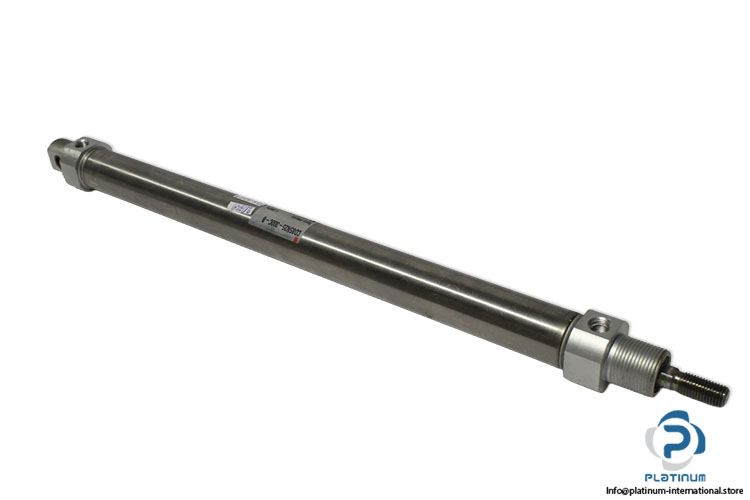

ISO Cylinder SMC CD85N25-300C-B ISO Cylinder is a double-acting pneumatic cylinder with 25 mm bore, 300 mm stroke, built-in magnet, air cushion, and stainless steel piston rod for reliable automation performance.
300CActingActuatorAirBC85CD85N25CylinderDoubleIndustrialISOPneumaticRODSeriesSingleSMCstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | G NV |
| Series | C85 |
| Fluid | Air |
| Stroke | 300 mm |
| Bore Size | 25 mm |
| Piston Rod Diameter | 10 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Air cushion |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting Type | Basic integrated clevis (N-type) |
| Magnet | Built-in magnet |
| Auto switch mounting type | Band mounting |
| Shape | Circular |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston speed | 50 to 1500 mm/s |
| Piston rod thread | M10 x 1.25 |
| Port size | G1/8 |
| Material Rod cover | aluminum alloy |
| Material Seals | NBBR |
| Material Piston Rod | stainless steel |
| Ambient and fluid temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097350 |
| Weight | 0,55 |
