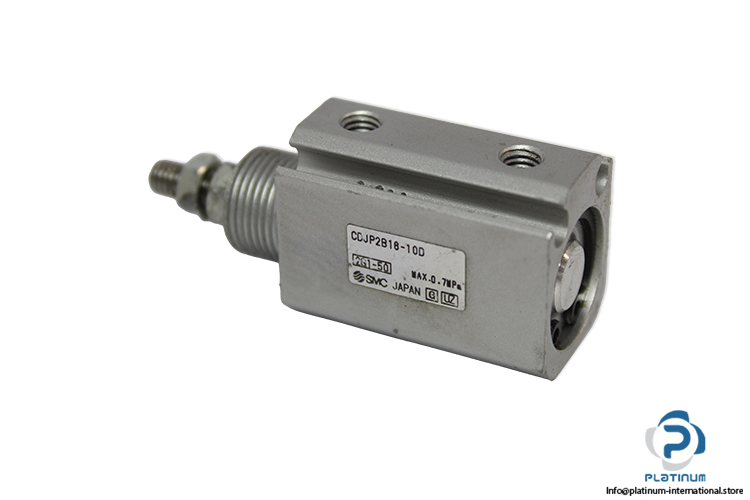

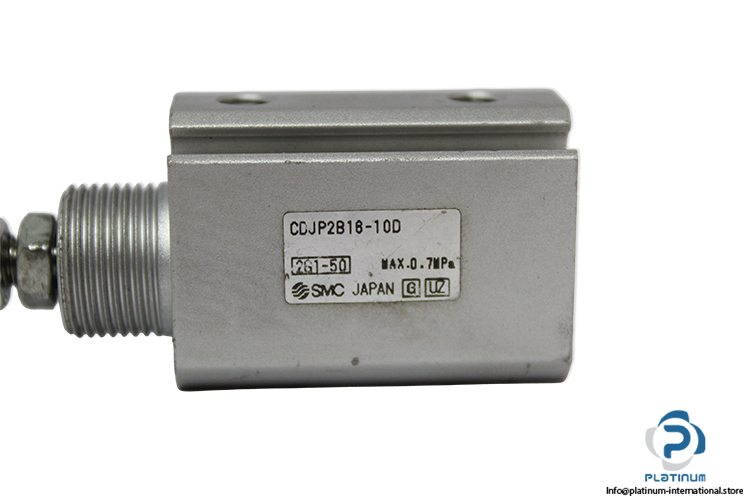

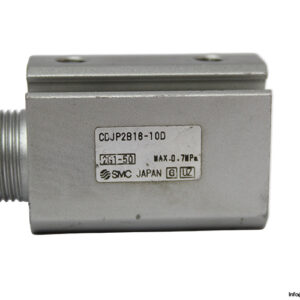

SMC CDJP2B16-10D PIN Cylinder

In stock1 unitReady to ship

Pin Cylinder

Compact SMC pin cylinder with auto switch designed for precise linear actuation, non-lube performance, and reliable double-acting operation.

Manufacturer
SMC
SKU
1089260
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SMC CDJP2B16-10D Pin Cylinder With Auto Switch

A compact and reliable pin cylinder from SMC designed for precise linear actuation in automation equipment. Built for long service life and smooth, accurate performance, this model offers excellent speed control, non-lube operation, and robust double-acting functionality suitable for high-efficiency pneumatic systems. Manufacturer: SMC

Type: Pin Cylinder With Auto Switch

Model: CDJP2B16-10D

Series: CJP

Code: 261-50

Best Recommendation:

This SMC pin cylinder is an excellent choice for customers seeking compact, high-precision pneumatic actuation. Its durable non-lube design reduces maintenance needs, while the wide piston speed range makes it ideal for fast-cycling automation. Recommended for assembly machines, positioning applications, packaging equipment, and compact automation systems requiring dependable and repeatable motion control.

Operating MediumAir
Stroke Length10 mm
Piston Diameter16 mm
Rod End ThreadMale Thread
Proof Pressure1 MPa
Max. Operating Pressure0.7 MPa
Mode of OperationDouble Acting Single Rod
Pneumatic Connection5 mm
LubricationNon-lube
Piston Speed10 to 500 mm/s
Ambient and Fluid Temperature-10 to 60°C
For more compatible pneumatic products, explorePneumatic Cylinders Pneumatic Components
