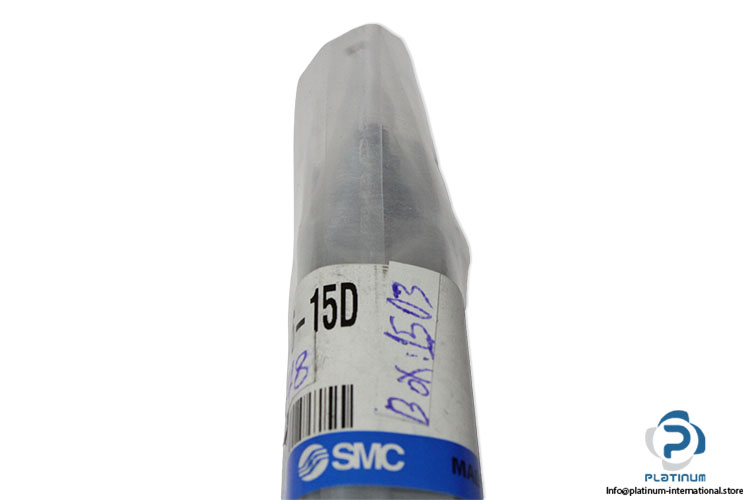

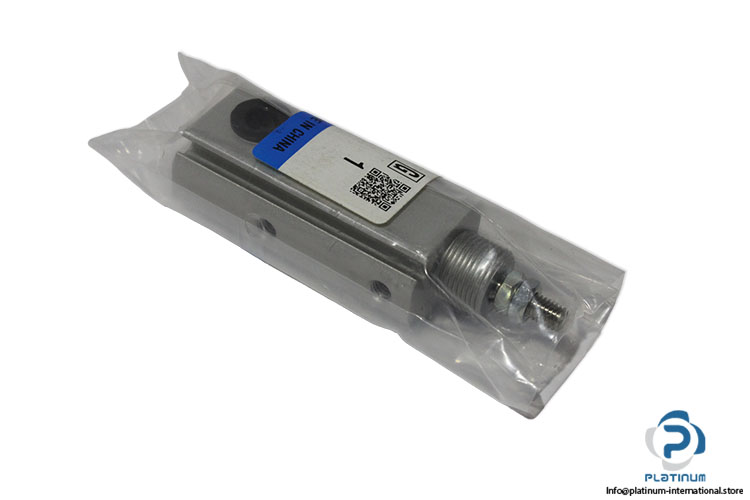

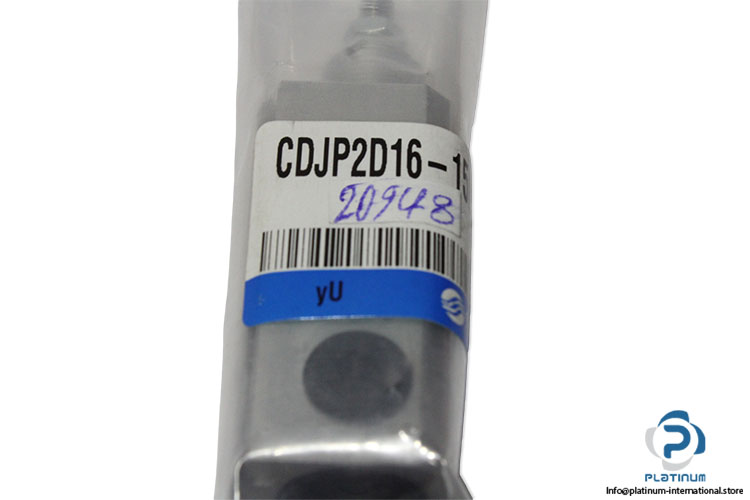

SMC CDJP2D16-15D PIN Cylinder

In stock2 unitsReady to ship

The SMC CDJP2D16-15D Pin Cylinder is a compact pneumatic actuator featuring a 16 mm bore, 15 mm stroke, double-acting operation, and a built-in magnet for auto switch compatibility. Designed with an aluminum alloy body and stainless steel piston rod, it delivers reliable performance in industrial automation applications.

Manufacturer
SMC
SKU
1097435
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SeriesCJP2
FluidAir
Stroke15 mm
Bore Size16 mm
Operating ModeDouble acting, male thread, Single rod
MagnetWith auto switch Built-in magnet
Mounting TypeClevis
Proof pressure1 MPa
Operating pressuremax. 0.7 MPa
Piston speed10 to 500 mm/s
Cushion TypeRubber bumper
LubricationNot required (Non-lube)
Port size5MM
Material BodyAluminum alloy
Material Piston rodStainless steel
Material SealNBR
Ambient and fluid temperature-10 to 60°C
Dimensions58.5 x 20 x 24.5 mm
ConditionNew
Stock KeyJO-004
SKU1097435
Weight0,05
