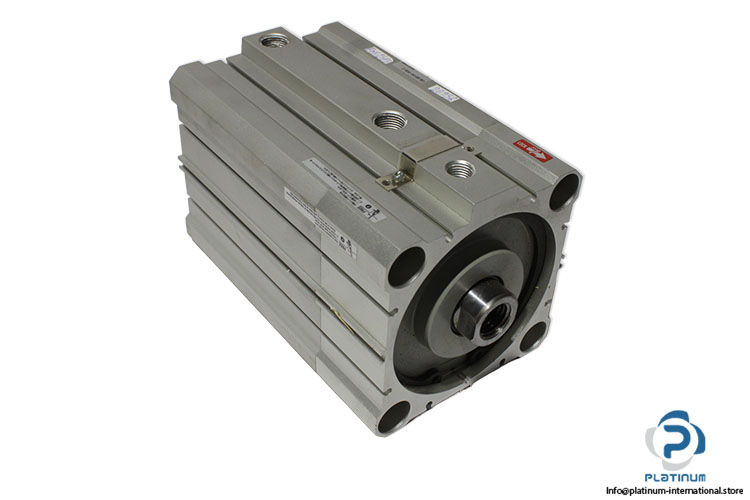

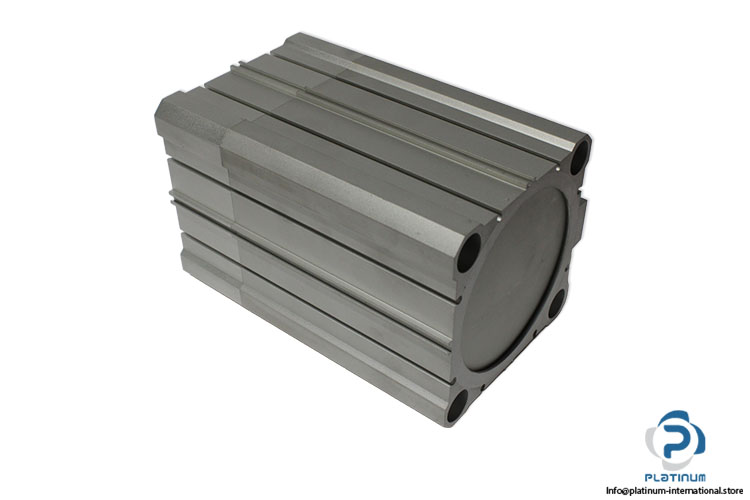

SMC CDLQB100-60D-F Compact Cylinder With Lock
New
In stock1 unitReady to ship
The SMC CDLQB100-60D-F Compact Cylinder With Lock is a reliable pneumatic actuator featuring a 100 mm bore, 60 mm stroke, double-acting operation, and spring locking mechanism. Designed with a built-in magnet and durable metal construction, it delivers precise and secure motion control for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

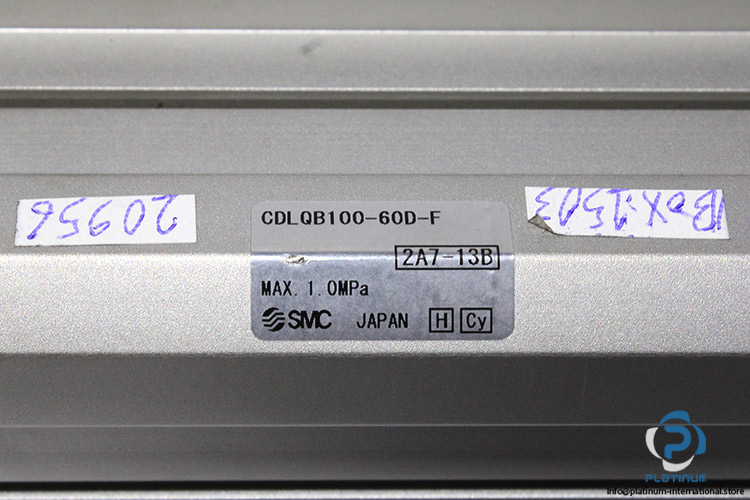

| Code | 2A7-13B / H Cy |
| Series | C55 |
| Fluid | Air |
| Stroke | 60 mm |
| Bore Size | 100 mm |
| Operating Mode | Double acting, Single rod |
| Magnet | With auto switch Built-in magnet |
| Mounting Type | Through-hole/ Both ends tapped common (Standard) |
| Locking direction | One direction |
| Locking action | Spring locking (Exhaust locking) |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1 MPa S |
| Piston speed | 50 to 500 mm/s |
| Cylinder Port size | G3/8 |
| Unlocking port size | G1/4 |
| Material Cylinder tube | Aluminum alloy |
| Material Piston rod | Carbon steel |
| Material Lock ring | Carbon steel |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097443 |
| Weight | 5,70 |
