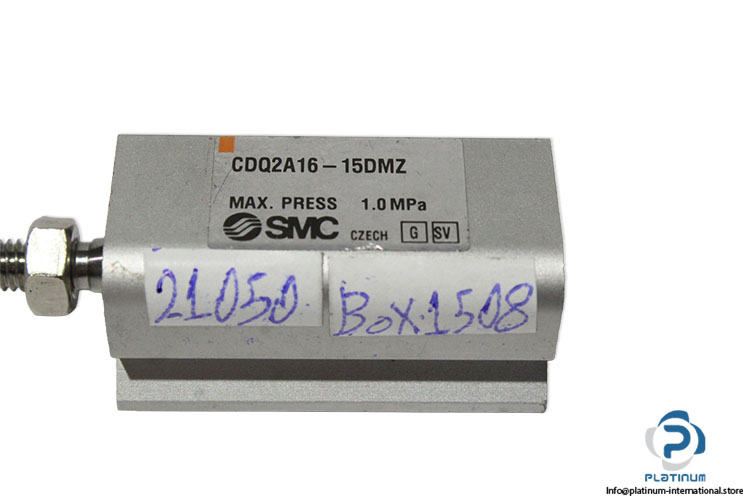

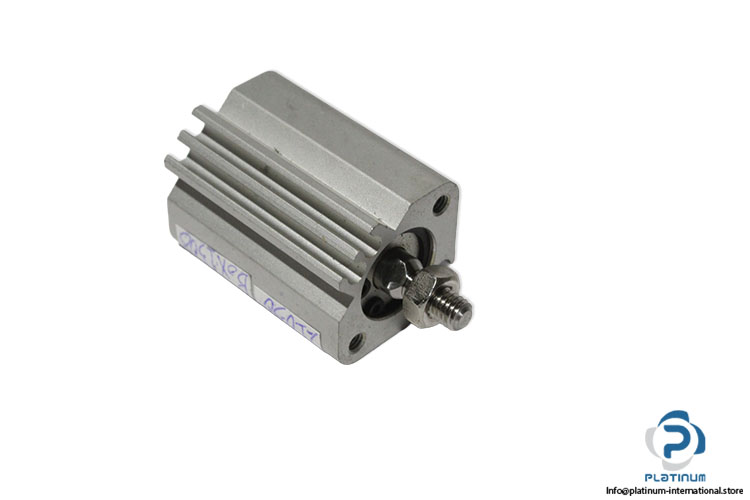

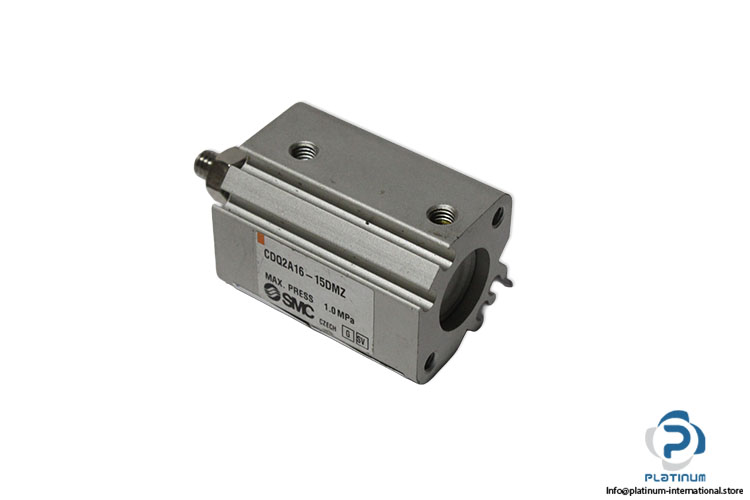

SMC CDQ2A16-15DMZ Compact Cylinder

In stock1 unitReady to ship

Compact Cylinder SMC compact pneumatic cylinder with double-acting operation, integrated magnet, and durable aluminum construction for precise linear motion in industrial automation systems.

Manufacturer
SMC
SKU
1097535
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeG SV
SeriesCQ2
FluidAir
Stroke15 mm
Bore Size16 mm
Proof pressure1.5 mpa
MagnetWith auto switch magnet
Operating ModeDouble Acting
Mounting TypeBoth ends tapped
Piston speed50 to 500 mm/s
Operating pressuremax. 1 MPa
LubricationNot required (Non-lube)
Rod end threadSingle rod male thread
Port size5MM
Material Cylinder tubeAluminum alloy
Material Piston rodStainless steel
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097535
Weight0,10
