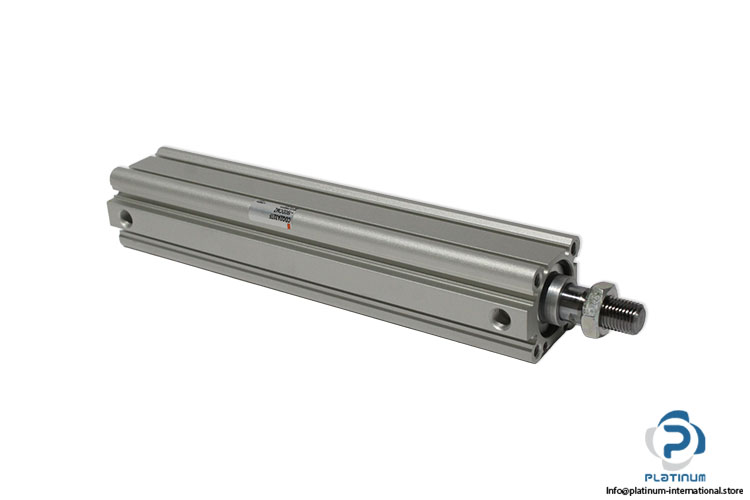

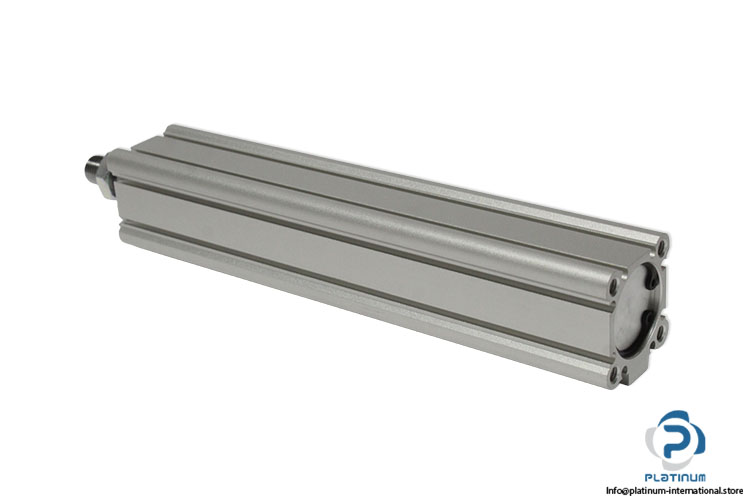

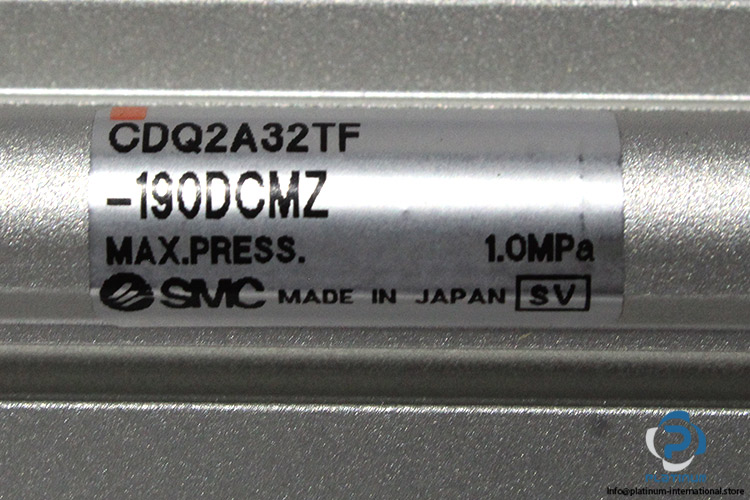

SMC CDQ2A32TF-190DCMZ Compact Cylinder

In stock4 unitsReady to ship

Compact Cylinder SMC CDQ2A32TF 190DCMZ Compact Cylinder is a precision pneumatic actuator with 32 mm bore size, 190 mm stroke, double acting operation, and built-in magnet, designed for reliable industrial automation applications.

Manufacturer
SMC
SKU
1097402
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeSV
SeriesCQ2-Z
FluidAir
Stroke190 mm
Bore Size32 mm
Piping typeBuilt-in One-touch fittings
Piping port sizeM5 x 0.8
Operating ModeDouble acting, Male thread
MagnetWith auto switch Built-in magnet
Mounting TypeBoth ends tapped style
Cushion TypeWith rubber bumper
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa
Piston speed50 to 500 mm/s
LubricationPneumatic (Non-lube)
Shapesquare
Port sizeG1/8
Material Cylinder TubeAluminum
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097402
Weight1,10
