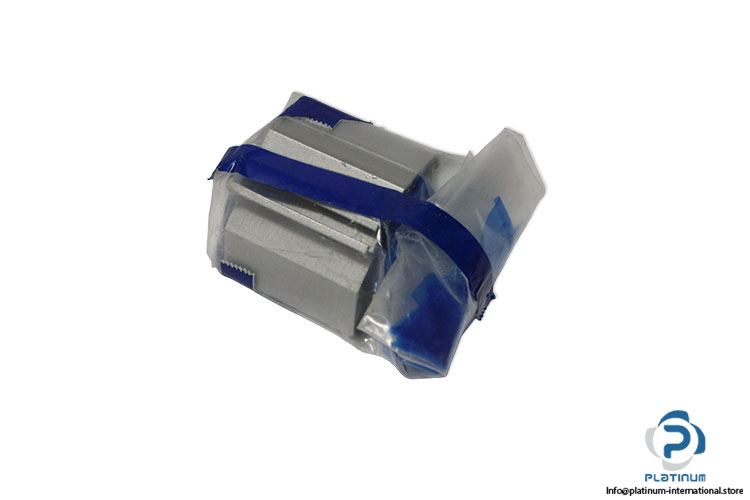

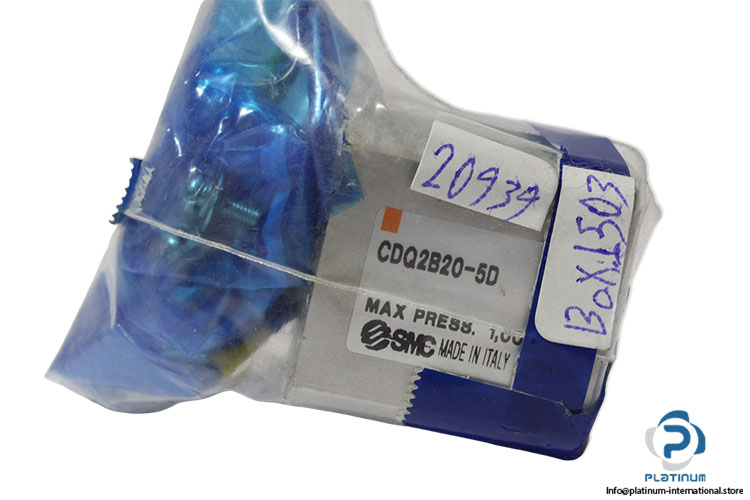

SMC CDQ2B20-5D Compact Cylinder

In stock1 unitReady to ship

Compact Cylinder SMC CDQ2B20 5D Compact Cylinder from the CQ2 series is a double-acting pneumatic cylinder with a 20 mm bore size, 5 mm stroke, operating pressure up to 1 MPa, and built-in magnet for reliable industrial automation applications.

Manufacturer
SMC
SKU
1097426
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SeriesCQ2
FluidAir
Stroke5 mm
Bore Size20 mm
Piping port sizeM5 x 0.8
Operating ModeDouble acting, female thread
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole (Standard)
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa/10 bar
Piston speed50 to 500 mm/s
LubricationPneumatic (Non-lube)
Port size5MM
Material Cylinder TubeAluminum alloy
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097426
Weight0,10
