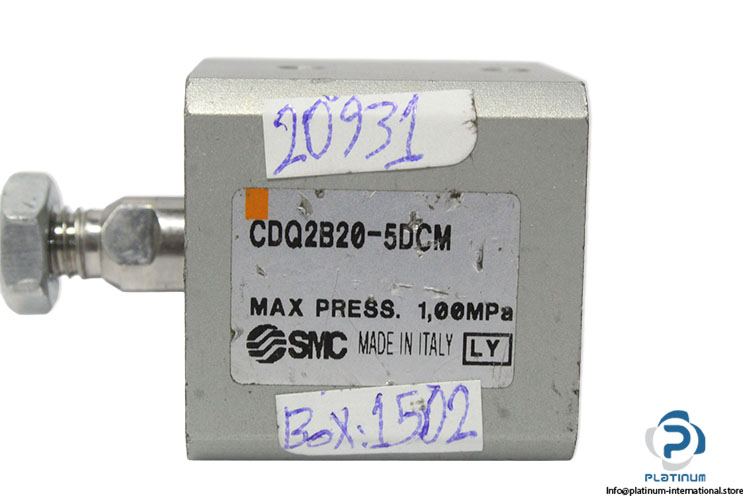

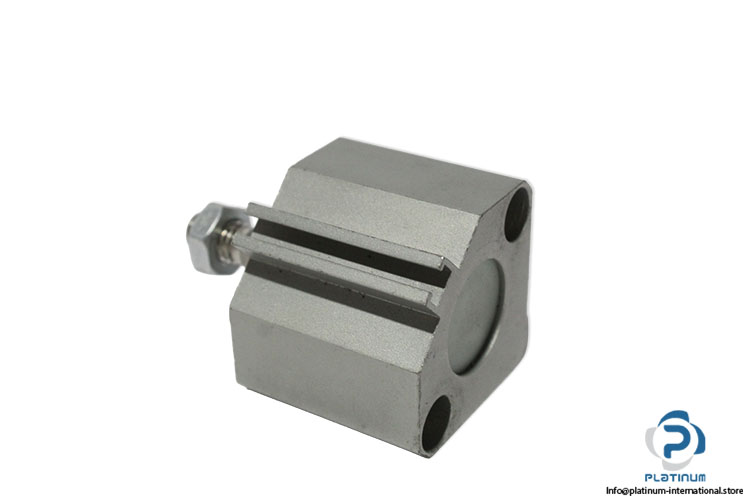

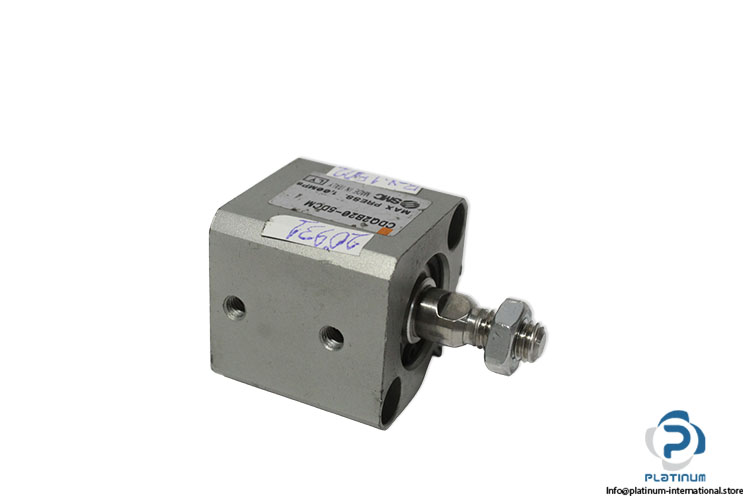

SMC CDQ2B20-5DCM Compact Cylinder

In stock1 unitReady to ship

The SMC CDQ2B20-5DCM Compact Cylinder is a precision pneumatic actuator featuring a 20 mm bore, 5 mm stroke, double acting operation, and a built-in magnet for auto switch compatibility, delivering reliable and efficient linear motion in industrial automation systems.

Manufacturer
SMC
SKU
1097418
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeLY
SeriesCQ2
FluidAir
Stroke5 mm
Bore Size20 mm
Piping port sizeM5 x 0.8
Operating ModeDouble acting, male thread
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole (Standard)
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa/10 bar
Piston speed50 to 500 mm/s
LubricationPneumatic (Non-lube)
Port size5MM
Material Cylinder TubeAluminum alloy
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097418
Weight0,10
