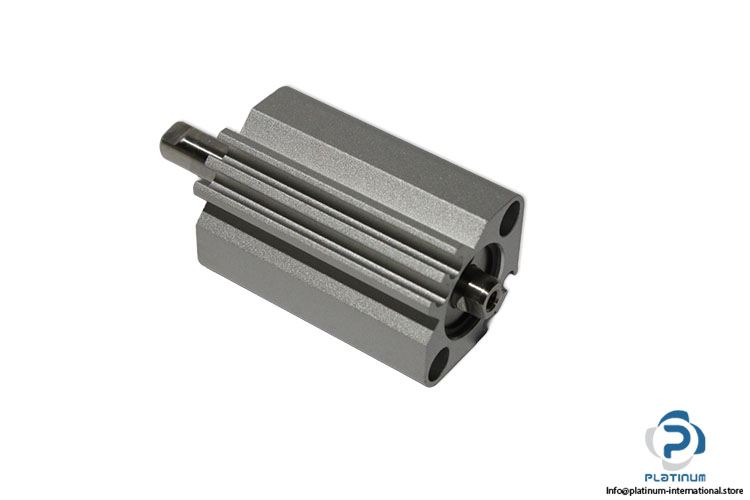

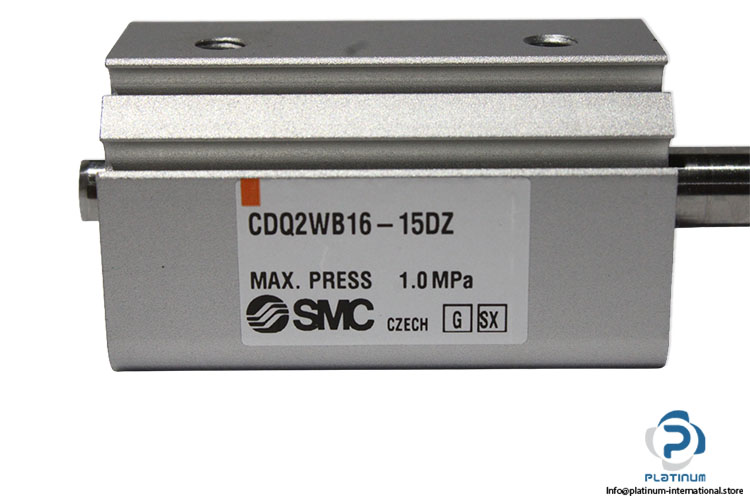

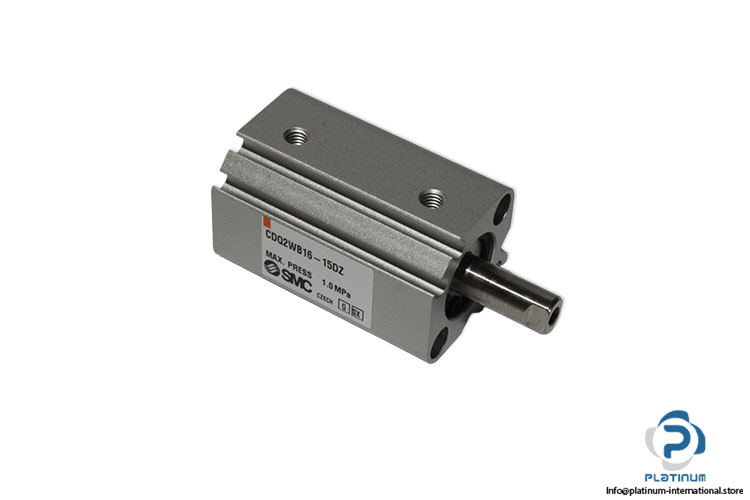

SMC CDQ2WB16-15DZ Compact Cylinder
New
In stock1 unitReady to ship
The SMC CDQ2WB16-15DZ Compact Cylinder is a precision pneumatic actuator featuring a 16 mm bore, 15 mm stroke, double-acting double rod configuration, and built-in magnet. Designed with an aluminum alloy body and non-lube operation, it delivers reliable performance in industrial automation systems.
ActingActuatorAirAluminumAutomationCompactCQ2CylinderDoubleIndustrialLubeNonPneumaticPneumaticsRODSMC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | G SX |
| Series | CQ2-Z |
| Fluid | Air |
| Stroke | 15 mm |
| Bore Size | 16 mm |
| Operating Mode | Double acting, female thread, Double rod |
| Auto switch mounting groove | 2 surfaces |
| Magnet | With auto switch Built-in magnet |
| Mounting Type | Through-hole (Standard) |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1 MPa/10 bar |
| Piston speed | 50 to 500 mm/s |
| Lubrication | Not required (Non-lube) |
| Port size | 5MM |
| Material Cylinder Tube | Aluminum alloy |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097436 |
| Weight | 0,10 |
