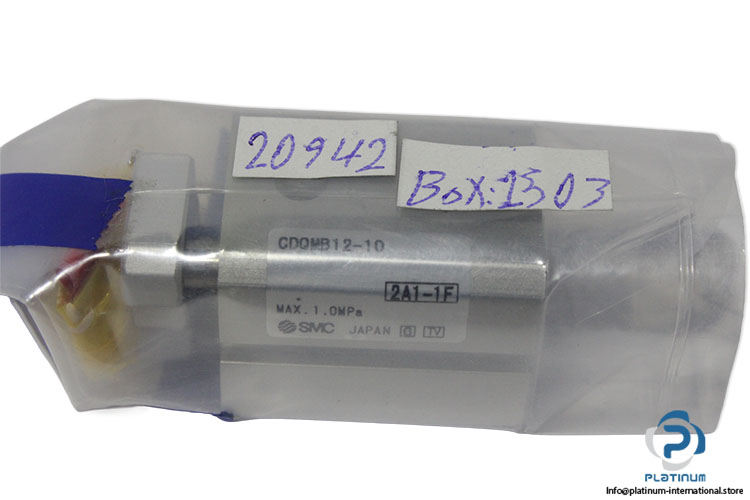

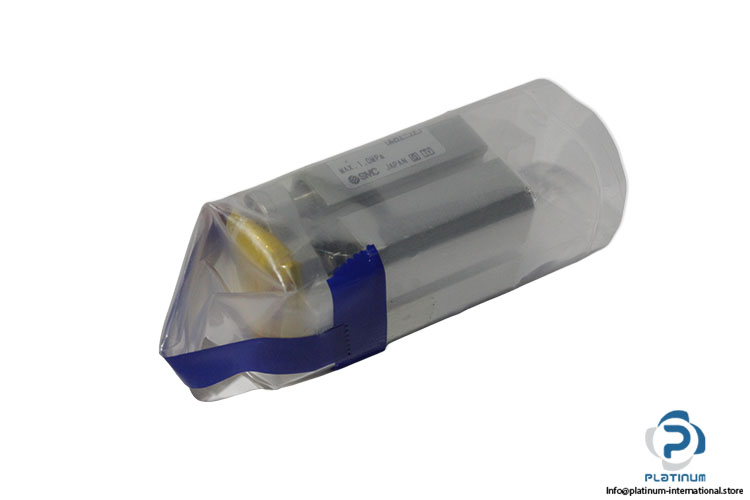

SMC CDQMB12-10 Compact Guide Cylinder

In stock2 unitsReady to ship

The SMC CDQMB12-10 Compact Guide Cylinder is a high-precision pneumatic actuator featuring a 12 mm bore, 10 mm stroke, double-acting single rod operation, and a built-in magnet. Designed with an aluminum alloy body and stainless-steel guide rod, it delivers reliable motion control for industrial automation applications.

Manufacturer
SMC
SKU
1097429
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Code2A1-1F
SeriesCQM
FluidAir
Stroke10 mm
Bore Size12 mm
Operating ModeDouble acting, Single rod
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole (Standard)
Cushion TypeRubber bumper on both ends
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa/10 bar
Piston speed50 to 500 mm/s
LubricationPneumatic (Non-lube)
Port size5MM
Material Cylinder TubeAluminum alloy
Material Guide rodStainless steel
Material sealNBR
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097429
Weight0,05
