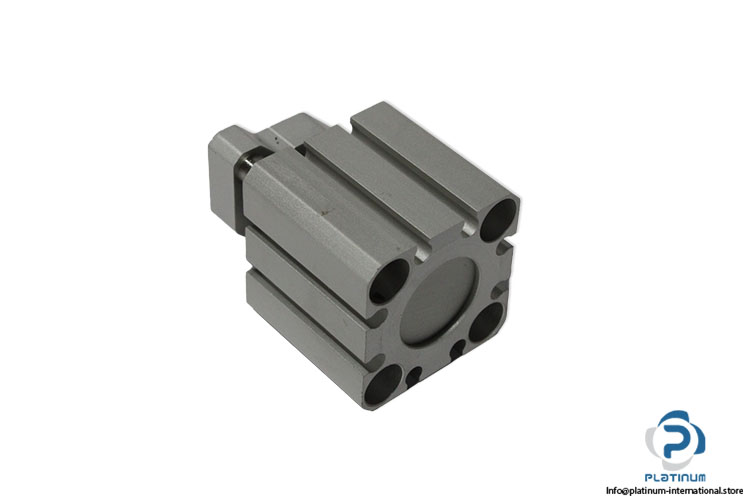

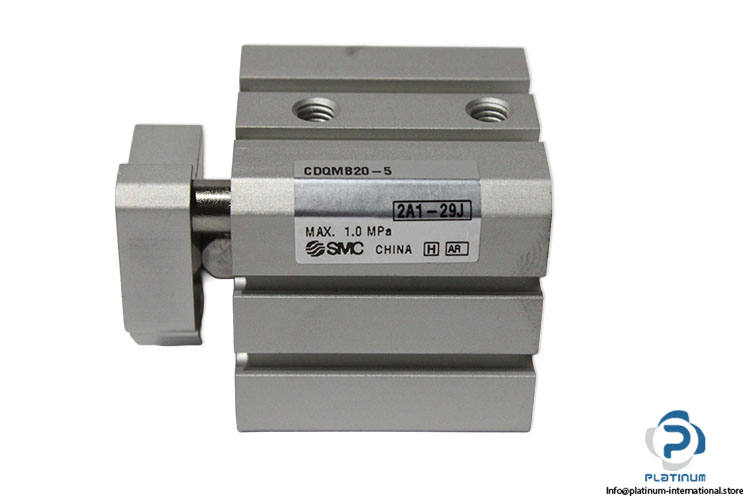

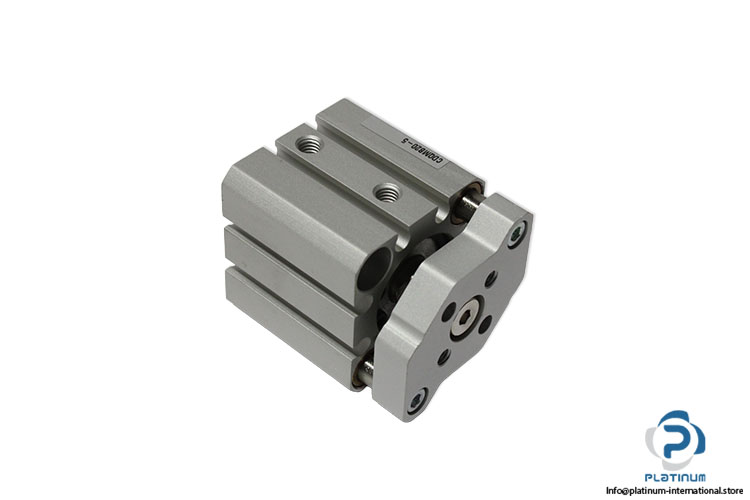

SMC CDQMB20-5 Compact Guide Cylinder

In stock3 unitsReady to ship

SMC CDQMB20-5 Compact Cylinder (Guide Rod Type) The SMC CDQMB20-5 Compact Cylinder is a high-performance pneumatic actuator featuring a 20 mm bore, 5 mm stroke, double acting single rod operation, and a built-in magnet for precise and reliable motion control in industrial automation systems.

Manufacturer
SMC
SKU
1097437
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Code2A1-29J /H AR
SeriesCQM
FluidAir
Stroke5 mm
Bore Size20 mm
Operating ModeDouble acting, Single rod
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole (Standard)
Proof pressure1.5 MPa
Operating pressuremax. 1 MPa/10 bar
Piston speed50 to 500 mm/s
LubricationNot required (Non-lube)
Port size5MM
Material Cylinder TubeAluminum alloy
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097437
Weight0,15
