SMC CDU20-15D Compact Cylinder
Used
In stock1 unitReady to ship

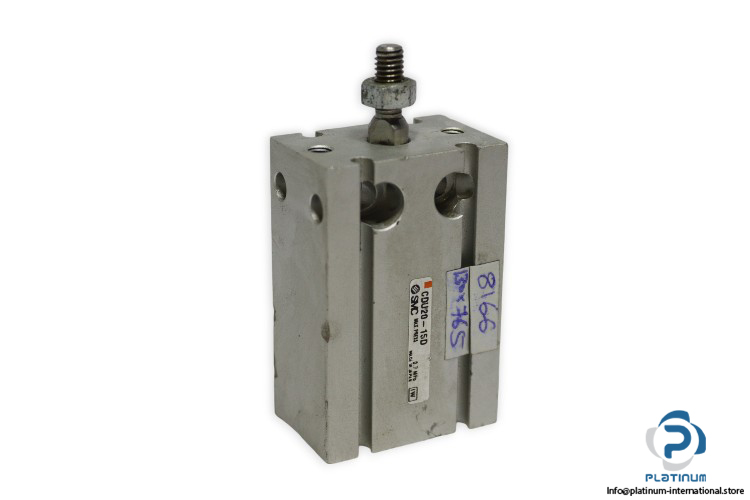

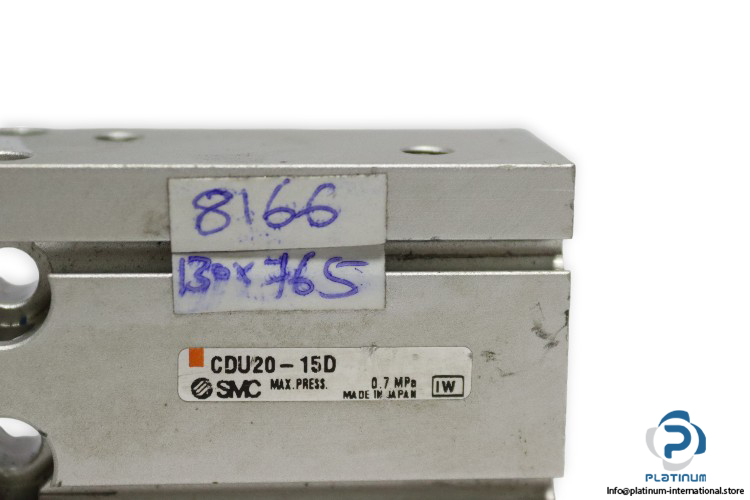

SMC CDU20-15D Free Mount Cylinder The SMC CDU20-15D Free Mount Cylinder is a compact pneumatic actuator with a 20 mm bore, 15 mm stroke, double-acting operation, and built-in magnet. Designed with an aluminum alloy body and stainless steel piston rod, it delivers reliable performance in industrial automation applications.
ActingActuatorAirAluminumAutomationbuiltCompactCylinderDoublefreeinIndustrialMagnetmomountPneumaticRODSingleSMC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | H0 |
| Series | CU |
| Fluid | Air |
| Stroke | 15 mm |
| Bore Size | 20 mm |
| Operating Mode | Double acting, male thread, Single rod |
| Magnet | With auto switch Built-in magnet |
| Proof pressure | 1,05 MPa |
| Operating pressure | max. 0.7 MPa |
| Piston speed | 50 to 500 mm/s |
| Cushion Type | Rubber bumper |
| Lubrication | Non-lube |
| Port size | 5MM |
| Material Body | Aluminum alloy |
| Material Piston rod | Stainless steel |
| Material Seal | NBR |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | Used |
| SKU | 1053057 |
| Weight | 0,15 |
