SMC CP95SDB80-50 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
SMC ISO Cylinder CP95SDB80-50 is designed for pneumatic applications with a 80 mm bore diameter, 50 mm stroke, and a maximum pressure of 10 bar. It features a square shape, double operation mode, and a G 3/8 pneumatic connection for efficient operation.3/880boreconnectionCP95SDB80-50CylinderDoubleEndEquipmentGIndustrialISOmalemmModeOperationPistonPneumaticRODShapeSMCSquareSystems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

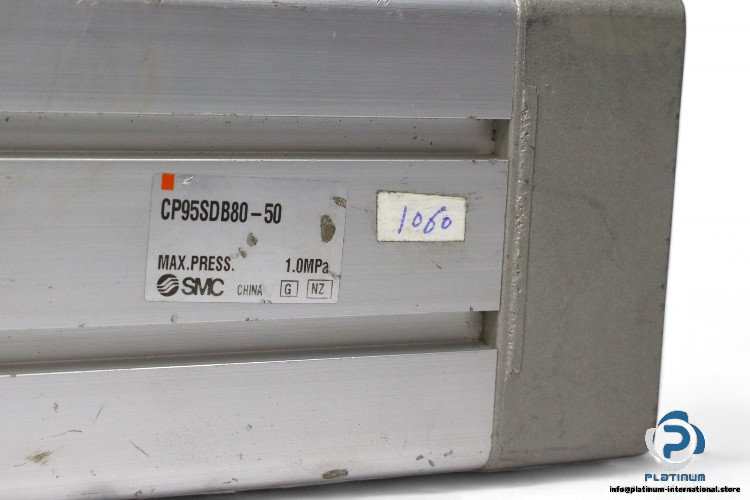

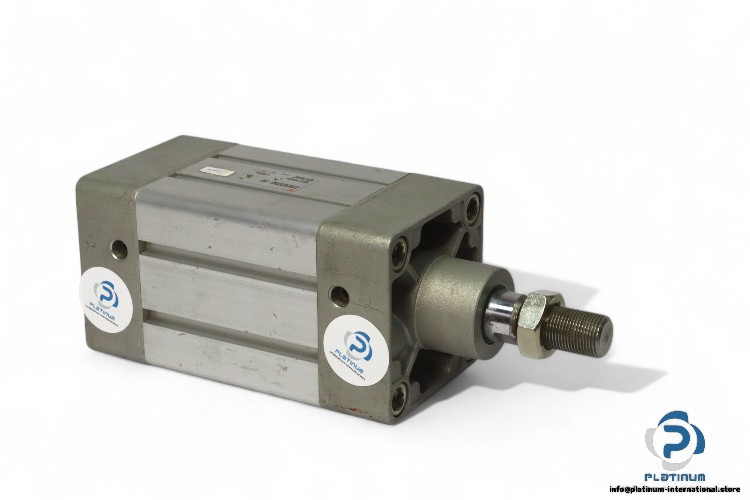

SMC ISO Cylinder CP95SDB80-50
The SMC ISO Cylinder CP95SDB80-50 is designed for high-performance pneumatic systems. With a durable construction and optimized for compressed air applications, this cylinder is ideal for use in industrial machinery requiring reliable operation and precise movement.
Manufacturer: SMC
Model: CP95SDB8050
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 50 mm
- Bore x Stroke: 80 x 50 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 95 x 210 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
