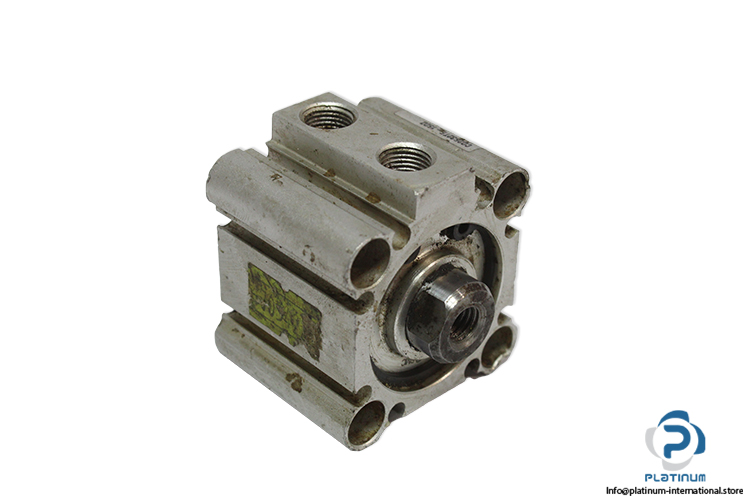

SMC CQ2B32TF-15DZ Compact Cylinder
Compact Cylinder
SMC CQ2 series compact pneumatic cylinder with 32 mm bore and 15 mm stroke, designed for precise and space-saving automation applications.SMC CQ2B32TF-15DZ Compact Cylinder
A high-performance compact pneumatic cylinder from SMC, designed for applications requiring precise linear motion in limited installation spaces. The CQ2 series offers reliable double-acting operation, smooth motion control, and long service life, making it ideal for modern industrial automation systems. Manufacturer: SMC
Type: Compact Cylinder
Series: CQ2

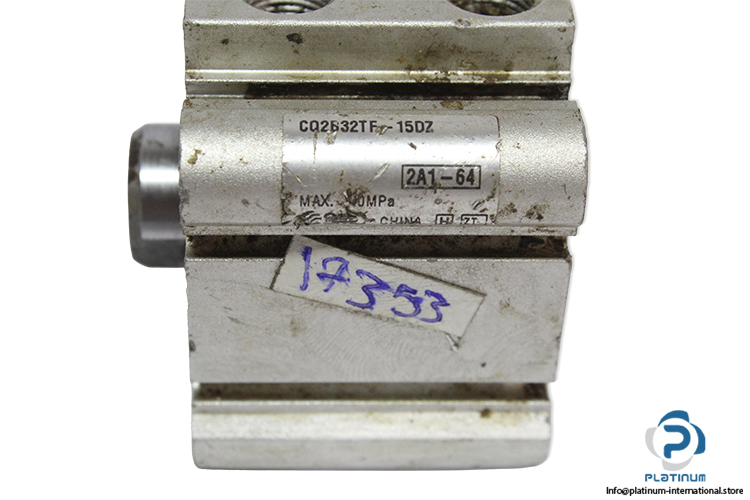

Model: CQ2B32TF-15DZ
Code: 2A1-64
Recommendation:
This SMC compact cylinder is ideal for pneumatic automation systems requiring accurate positioning and space-saving design. For optimal system performance and long-term reliability, it is recommended to use this cylinder together with high-quality Sensors, suitable pneumatic Filters, and compatible automation components available from Platinum International.
| Fluid | Air |
| Stroke Length | 15 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | Female |
| Piston Speed | 50 to 500 mm/s |
| Maximum Operating Pressure | 1.0 MPa |
| Mode of Operation | Double Acting |
| Pneumatic Connection | G 1/8 |
| Ambient Temperature | -10 °C to +70 °C |
