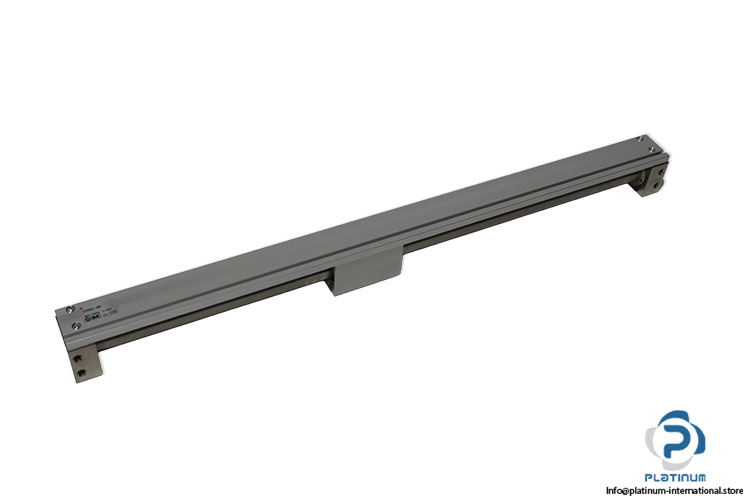

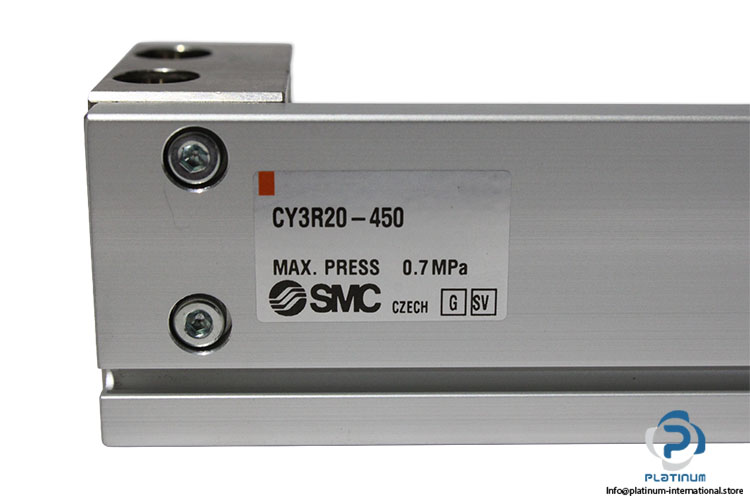

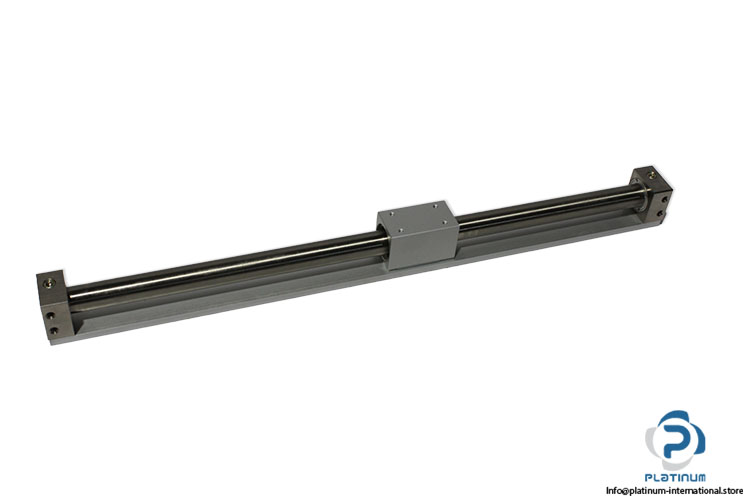

SMC CY3R20-450 Magnetically Coupled Rodless Cylinder
New
In stock1 unitReady to ship
Rodless Cylinder SMC CY3R20-450 Magnetically Coupled Rodless Cylinder is a direct mount pneumatic actuator with 450 mm stroke, 20 mm bore size, built-in magnet, and operating pressure up to 0.7 MPa for precise linear motion applications.
450ActuatorAircoupledCY3RCY3R20CylinderDirectIndustrialLinearMagneticallyMotionmountPneumaticRodlessSeriesSMC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | G SV |
| Series | CY3R |
| Fluid | Air |
| Stroke | 450 mm |
| Bore Size | 20 mm |
| Piping type | Standard |
| Port thread | M thread |
| Port size | 7mm |
| Magnet | Built-in magnet |
| No. of auto switch | 2 |
| Switch rail | With switch rail |
| Mounting | Direct mount type |
| Operating pressure | max. 0.7 MPa |
| Proof pressure | 1.05 MPa |
| Piston speed | 50 to 500 mm/s |
| Cushion | Rubber bumper |
| Lubrication | Not required (non-lube) |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097391 |
| Weight | 1,35 |
