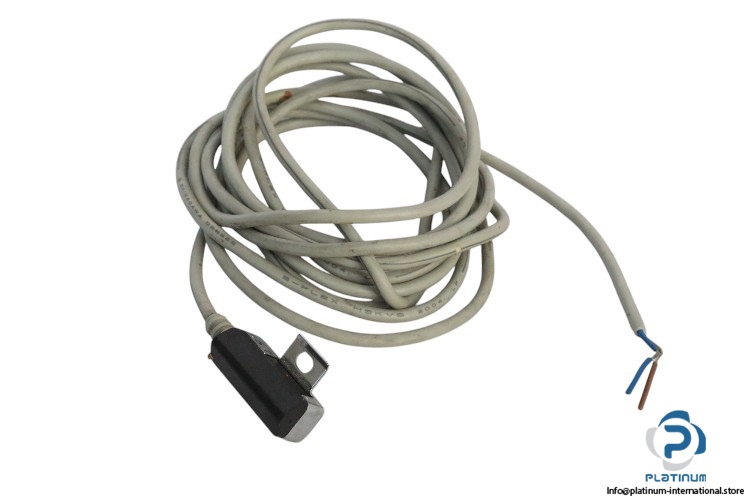

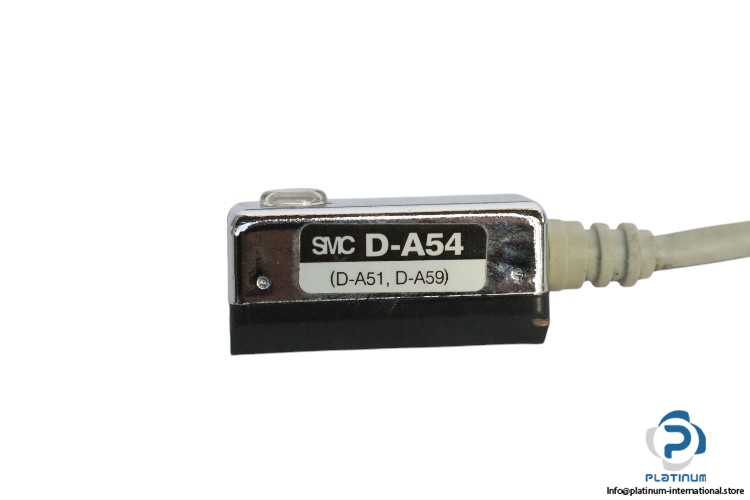

SMC D-A54 Reed Auto Switch Sensor
New
In stock7 unitsReady to ship
29,99$
SMC Reed Auto Switch Sensor/ Magnetic Sensor DA54 with a load voltage of 24 V DC/100 V AC/200 V AC and maximum load current range of 5 to 50 mA. CE marking, with built-in contact protection and red LED indicator.
10020024ACAutobuilt-inCEContactCurrentdcIndicatorLEDLoadMagneticMarkingmaximumMountingPLCProtectionRedReedRelaySensorSMCSwitchTie-RodVvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SMC Reed Auto Switch Sensor/ Magnetic Sensor DA54
SMC Reed Auto Switch Sensor/ Magnetic Sensor DA54 is designed for reliable operation in industrial applications, offering high performance and precision. It is an ideal choice for controlling and monitoring systems using relays and PLCs. Below are the key technical specifications:
- Manufacturer: SMC
- Type: Reed Auto Switch Sensor/ Magnetic Sensor
- Model: DA54
- Alternative Model: D-A51, D-A59
- Series: D-A
Technical Data:
- Applicable Load: Relay, PLC
- Load Voltage: 24 V DC/100 V AC/200 V AC
- Maximum Load Current and Range:
- 5 to 50 mA (24 V DC)
- 5 to 25 mA (100 V AC)
- 5 to 12.5 mA (200 V AC)
- Contact Protection Circuit: Built-in
- Electrical Entry: Grommet
- Connection: Cable
- Auto Switch Mounting Style: Tie-rod
- Internal Voltage Drop:
- 2.4 V or less (to 20 mA)
- 3.5 V or less (to 50 mA)

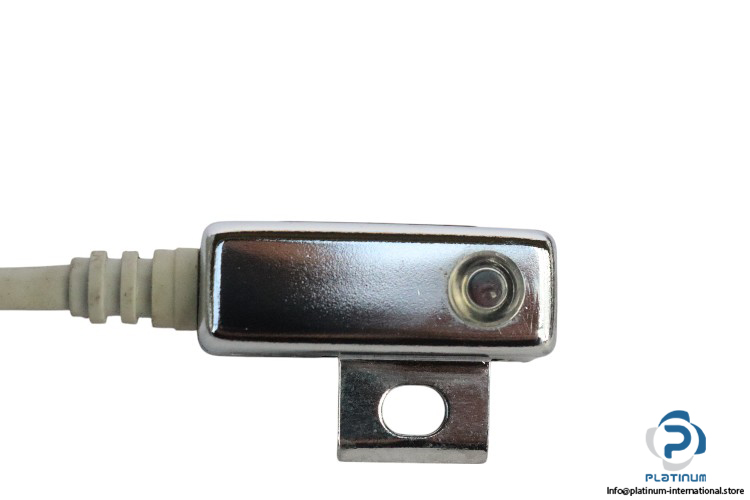

- Indicator Light: Red LED illuminates when turned ON
- Standard: CE marking
