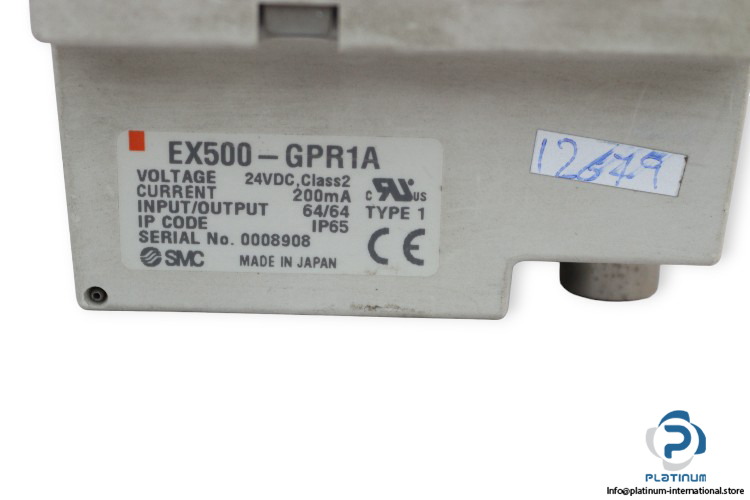

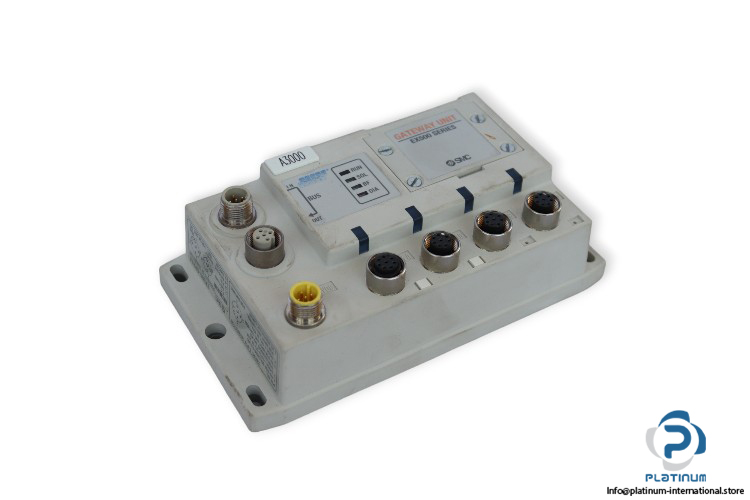

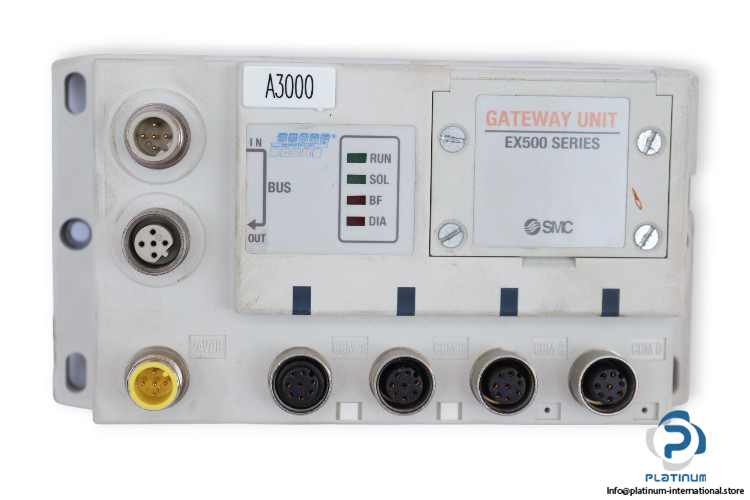

SMC EX500-GPR1A Gate WAY Unit

Manufacturer: SMC
Type: Gate Way Unit
Model: EX500GPR1A

Series: EX500
Applicable System:
Protocol: PROFIBUS DP
Version: DP-V0
Supply Voltage: 24 V DC
Rated Current Consumption: 200 mA
I/O Occupation Area (Inputs/Outputs): 64 / 64
Inputs No.: 64-Inputs (16 x 4 Branches)
Outputs No.: 64-Outputs (16 x 4 Branches)
Communication Speed: 9.6 K / 19.2 K / 45.45 K / 93.75 K / 187.5 K / 500 K / 1.5 M / 3 M / 6 M / 12 Mbps
Configuration File: GSD File

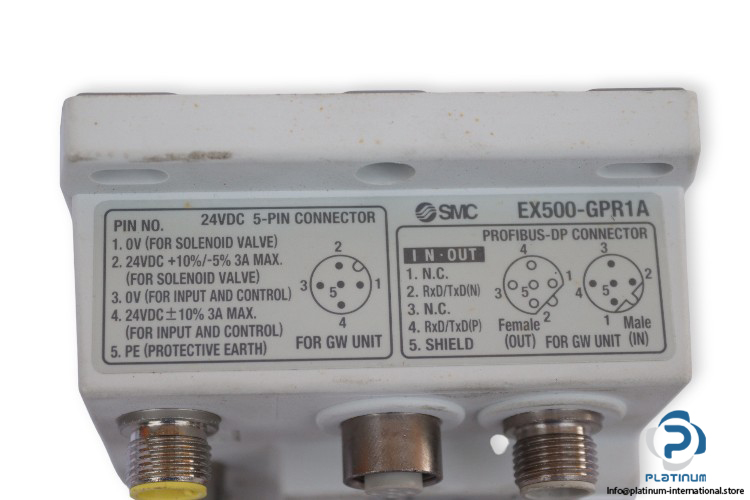

Part Description:
– Communication Male Connector (M12, 5-Pins, Plug Reverse Key)
– Communication Female Connector (M12, 5-Pins, Socket Reverse Key)
– Power Supply Male Connector 5-Pins
– 4 x Branch Female Connector 8-Pins
Protection Class: IP65
Temperature: 5 … 45 °C
Dimensions: 88 x 148 x 49.9 mm
