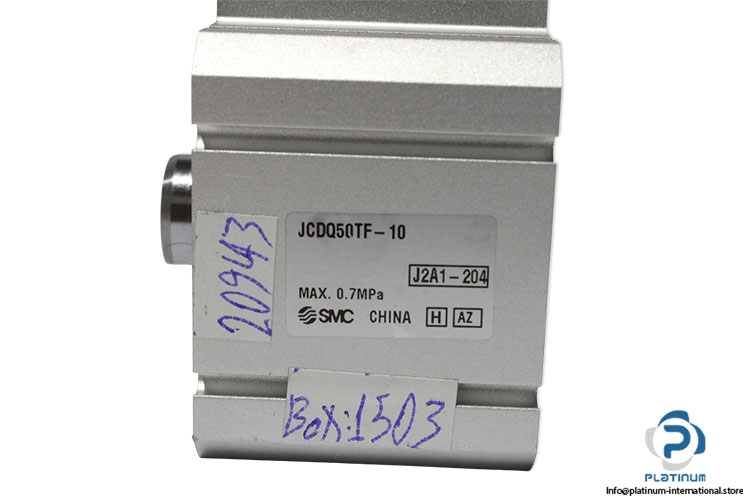

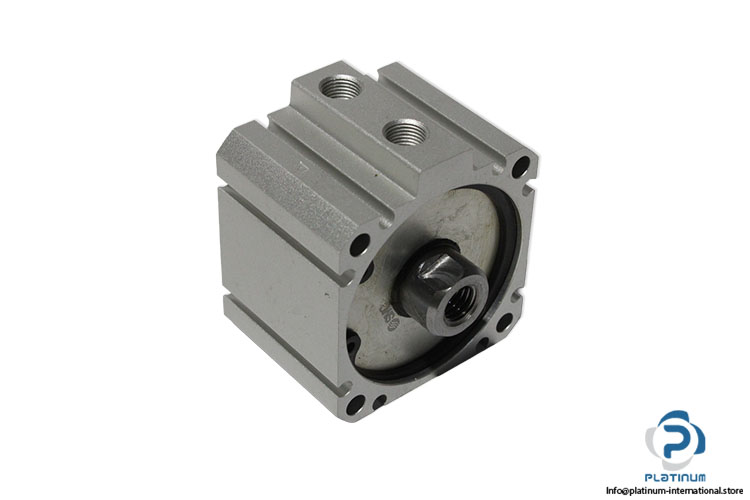

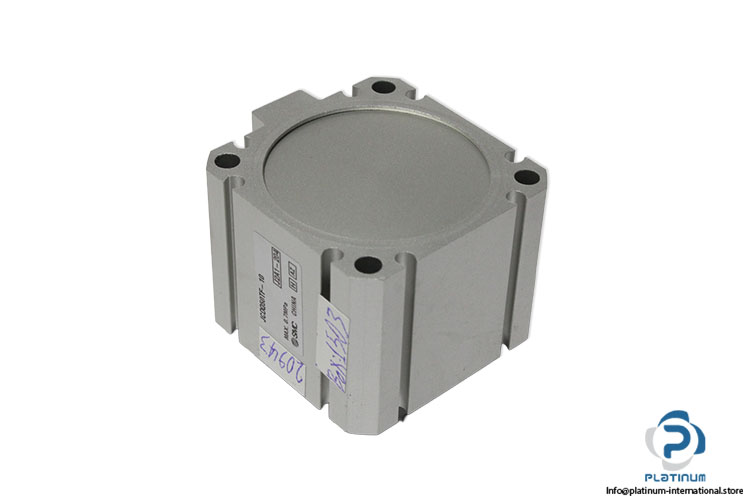

SMC JCDQ50TF-10 Compact Cylinder

In stock1 unitReady to ship

The SMC JCDQ50TF 10 Compact Cylinder is a reliable pneumatic actuator featuring a 50 mm bore, 10 mm stroke, double-acting operation, and a built-in magnet for auto switch compatibility. Designed for efficient and precise motion control in compact industrial automation applications.

Manufacturer
SMC
SKU
1097430
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeJ2A1-204 / H AZ
SeriesJCQ
FluidAir
Stroke10 mm
Bore Size50 mm
Operating ModeDouble acting, Female thread
MagnetWith auto switch Built-in magnet
Mounting TypeThrough-hole (Standard)
Cushion TypeRubber bumper
Proof pressure1 MPa
Operating pressuremax. 0.7 MPa
Piston speed50 to 500 mm/s
LubricationNot required (Non-lube)
Port sizeG1/8
Ambient and fluid temperature5 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097430
Weight0,30
