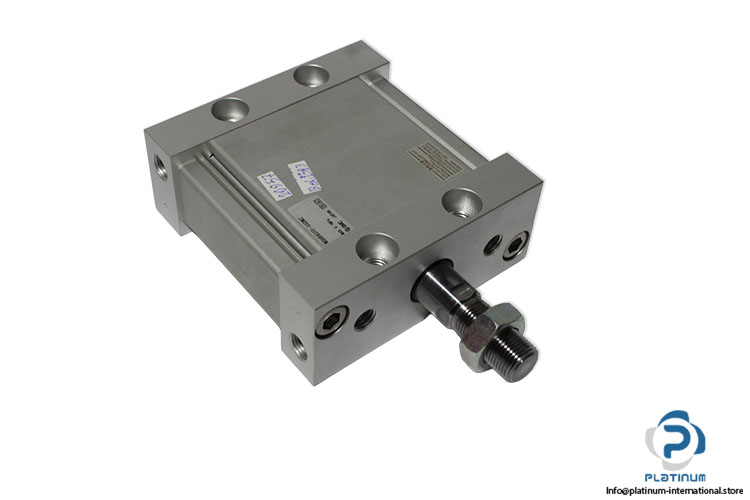

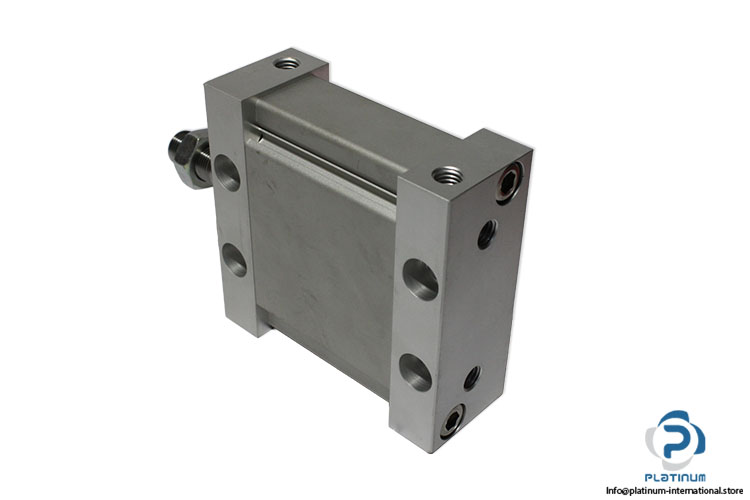

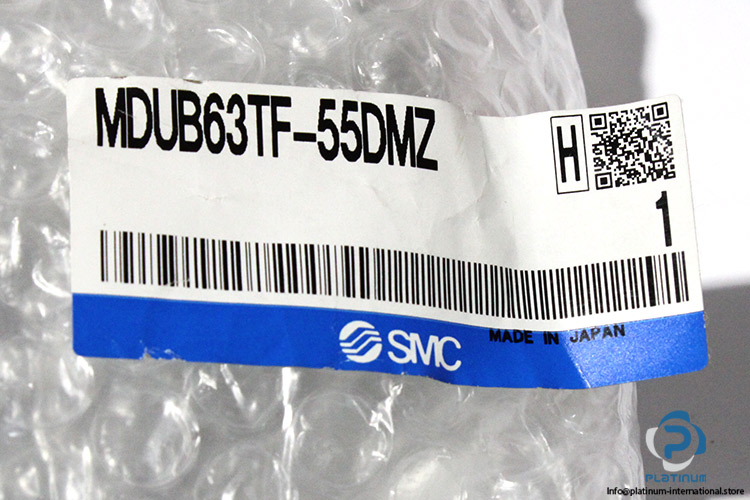

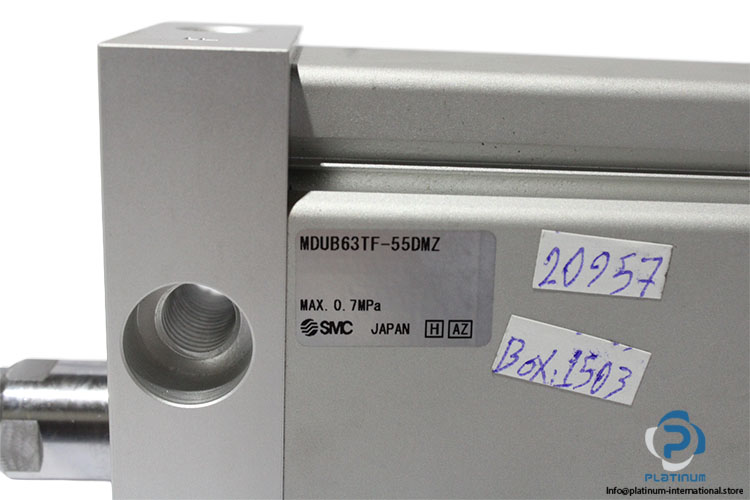

SMC MDUB63TF-55DMZ Plate Cylinder

In stock1 unitReady to ship

The SMC MDUB63TF 55DMZ Plate Cylinder is a compact double-acting pneumatic actuator with a 63 mm bore, 55 mm stroke, built-in magnet for auto switch compatibility, and durable aluminum alloy construction, designed for precise motion control in industrial automation systems.

Manufacturer
SMC
SKU
1097444
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeH AZ
SeriesMU
FluidAir
Stroke55 mm
Bore Size63 mm
Operating ModeDouble acting, Rod end male thread
MagnetWith auto switch Built-in magnet
Mounting TypeBasic
Proof pressure1.05 MPa
Operating pressuremax. 0.7 MPa
Piston speed50 to 500 mm/s
Cushion TypeRubber bumper
LubricationNot required (Non-lube)
Port sizeG1/4
Material Rod coverAluminum alloy
Material Piston rodCarbon steel
Material SealNBR
Ambient and fluid temperature-10 to 60°C
ConditionNew
Stock KeyJO-004
SKU1097444
Weight1,70
