SMC MGPL20-100 Compact Guide Cylinder

In stock1 unitReady to ship

COMPACT GUIDE CYLINDER

High-precision compact guide cylinder by SMC with double-acting function, 100 mm stroke, and 20 mm piston. Enhanced with attachments including a REED switch, pneumatic gripper, and laser sensor for advanced automation applications.

Manufacturer
SMC
SKU
1085848
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SMC MGPL20-100 COMPACT GUIDE CYLINDER

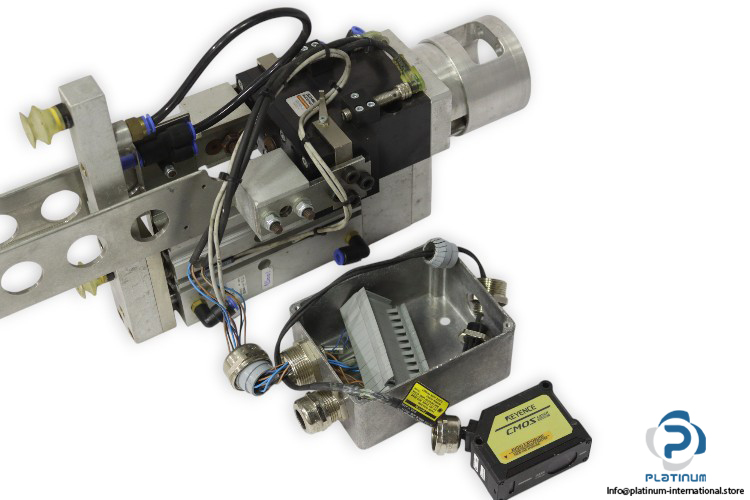

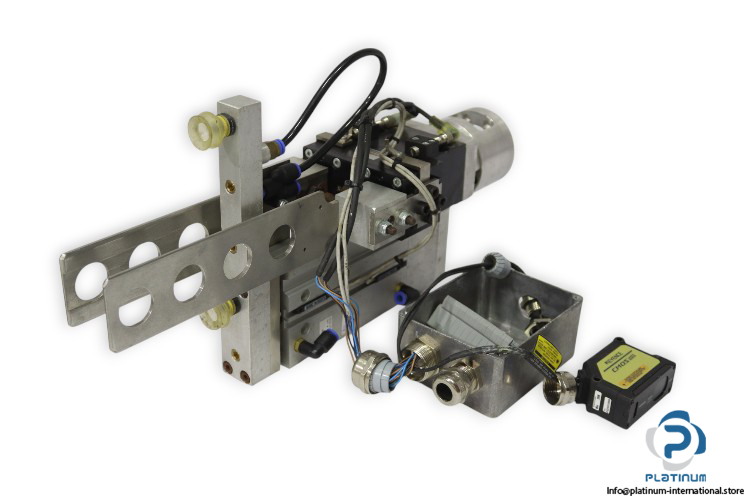

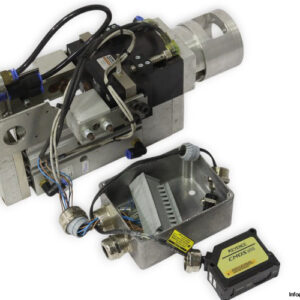

The SMC MGPL20-100 is a high-performance compact guide cylinder designed for precision linear motion applications. With double-acting operation, ball bushing bearings, and robust construction, it ensures stable guidance under lateral loads. It includes advanced attachments like a REED switch, pneumatic parallel gripper, and long-distance laser sensor for enhanced automation integration.

Manufacturer: SMC

Type: Compact Guide Cylinder

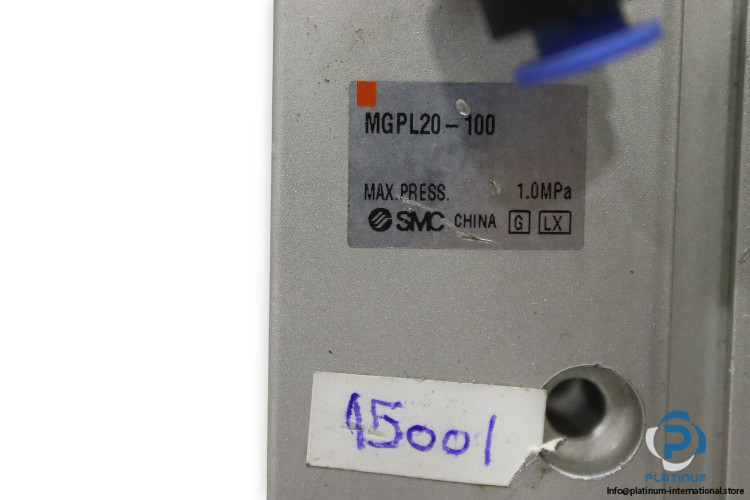

Model: MGPL20-100

Code: G/LX

Connection6 mm
Pressure1 MPa
Stroke100 mm
Piston Diameter20 mm
Bearing TypeBall Bushing
ActionDouble Acting
Ambient and Fluid Temperature-10 to 60 °C

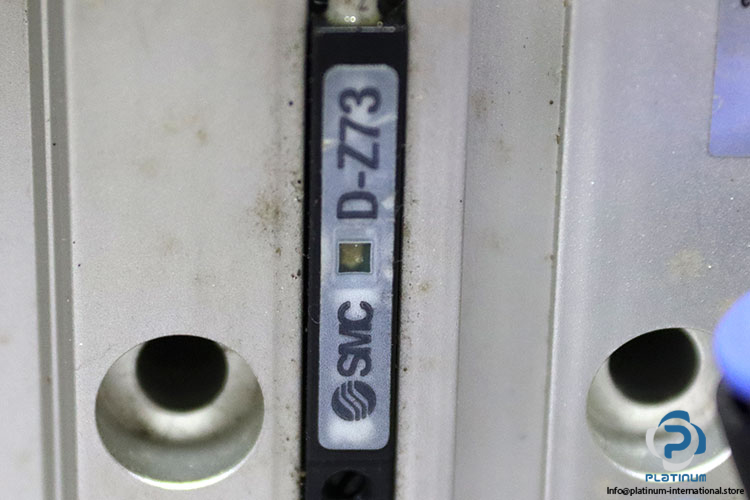

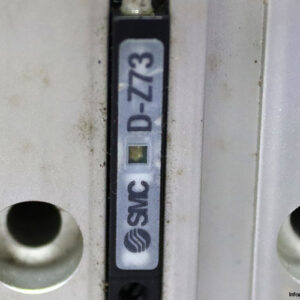

Attachment 1SMC D-Z73 REED SWITCH
Electrical Entry DirectionIn-line
Load Voltage24 V DC
Maximum Load Current5 to 40 mA
Internal Voltage Drop2.4 V or less

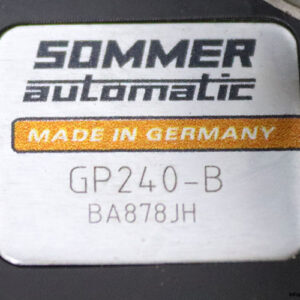

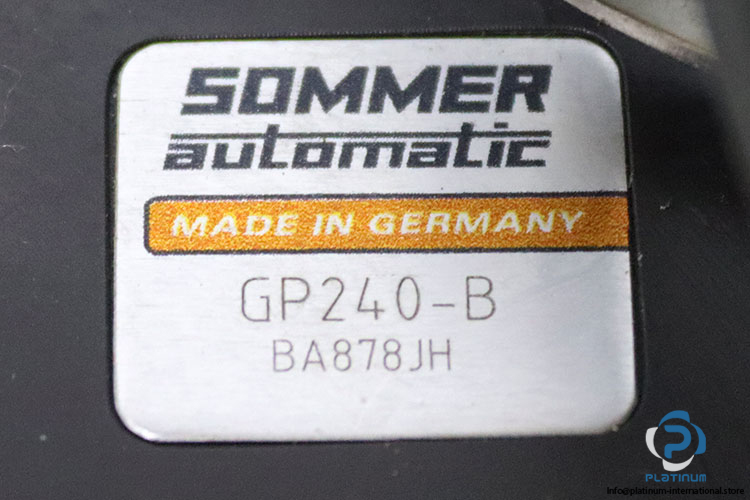

Attachment 2SOMMER AUTOMATIC GP240-B PNEUMATIC PARALLEL GRIPPER
Part No.BA878JH
Stroke Per Jaw20 mm
Gripping Force510 N

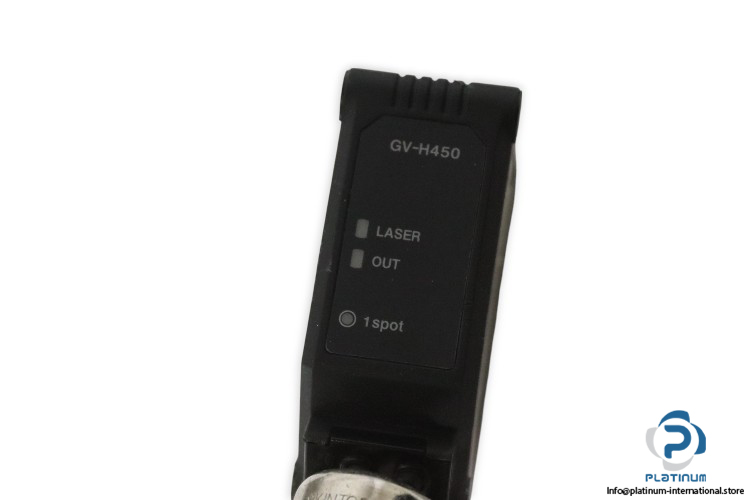

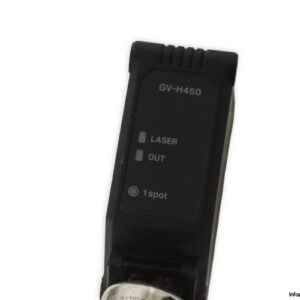

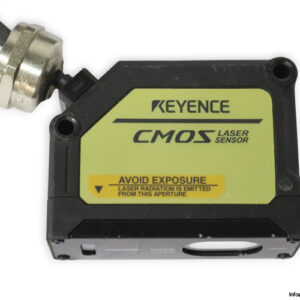

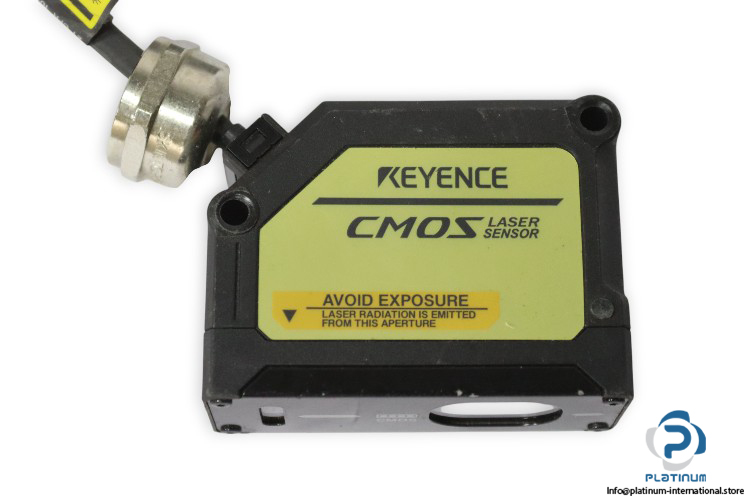

Attachment 3KEYENCE GV-H450 LASER SENSOR

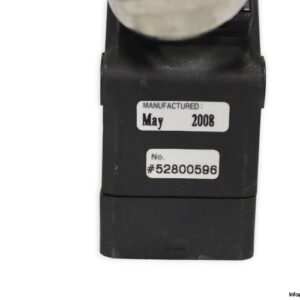

Part No.52800596
Light SourceVisible Semiconductor Laser, 655 nm
Detection Distance (Amplifier Display)160 to 450 mm
Possible Display Range295 to -50
Standard Detection Deviation3 mm
Enclosure RatingIP67
SMC KGL16-04 Male Elbow Connector
New

SMC

SMC KGL16-04 Male Elbow Connector

SKU: 1102159

Qty: 11

Available through quotation
SMC KQ2L16-03AS Male Elbow Connector
New

SMC

SMC KQ2L16-03AS Male Elbow Connector

SKU: 1102160

Qty: 3

Available through quotation
SMC KGC16-00 Tube CAP
New

SMC

SMC KGC16-00 Tube CAP

SKU: 1102168

Qty: 17

Available through quotation
SMC KGU12-03 Branch
New

SMC

SMC KGU12-03 Branch

SKU: 1102170

Qty: 10

Available through quotation
SMC KGL10-03 Male Elbow Connector
New

SMC

SMC KGL10-03 Male Elbow Connector

SKU: 1102162

Qty: 20

Available through quotation
