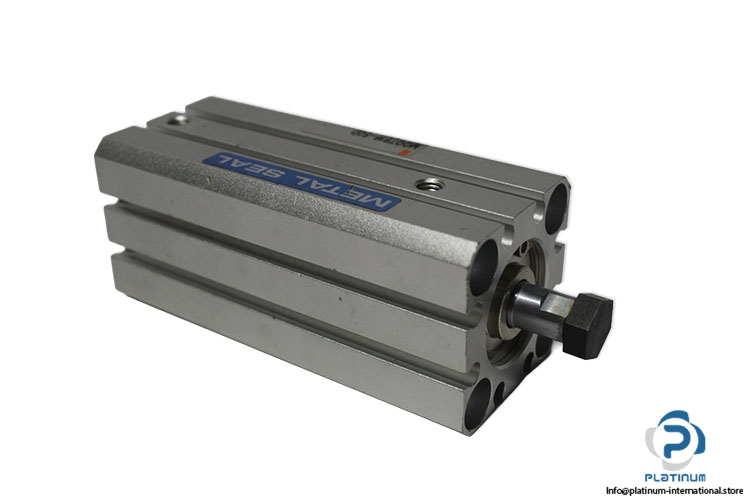

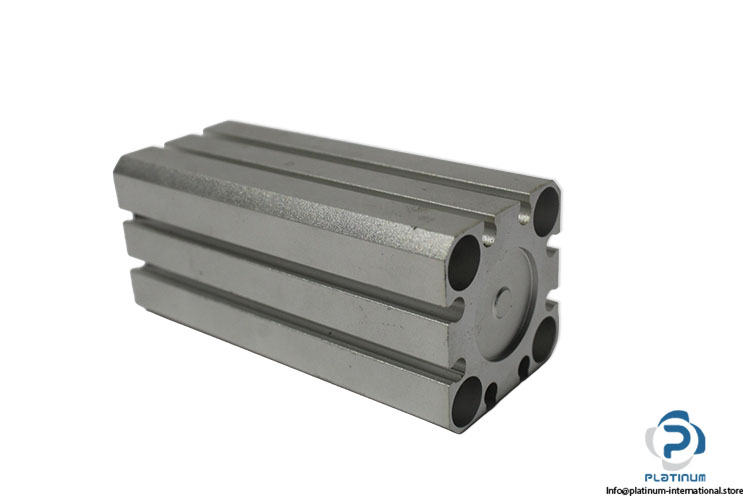

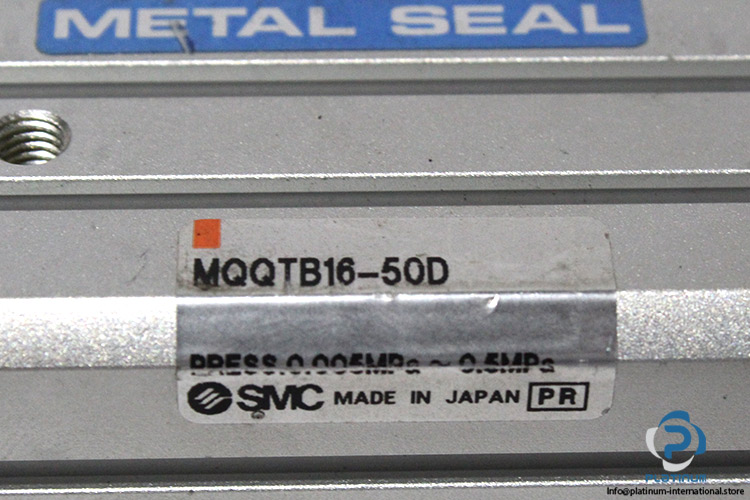

SMC MQQTB16-50D Compact LOW Friction Cylinder
New
In stock2 unitsReady to ship
Compact Low Friction Cylinder SMC MQQTB16 50D Compact Low Friction Cylinder is a double-acting pneumatic cylinder with 16 mm bore size, 50 mm stroke, operating pressure of 0.005–0.5 MPa, and durable stainless steel piston construction for precision automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | P R |
| Series | MQQ |
| Fluid | Air |
| Stroke | 50 mm |
| Bore Size | 16 mm |
| Operating Mode | Double acting, Single Rod end Female thread |
| Cushion Type | Rubber bumper (Standard) |
| Rod Direction | One Side |
| Mounting Type | Through hole & Double end tapped (Standard) |
| Proof pressure | 1.05 MPa |
| Operating pressure | 0.005-0.5 MPa |
| Piston speed | 0.3 to 300 mm/s |
| Lubrication | Not required (non-lube) |
| Port size | 5MM |
| Material Rod | Carbon steel |
| Material Seal | Metal |
| Material Piston | Special stainless steel |
| Ambient and fluid temperature | -10 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097409 |
| Weight | 0,25 |
