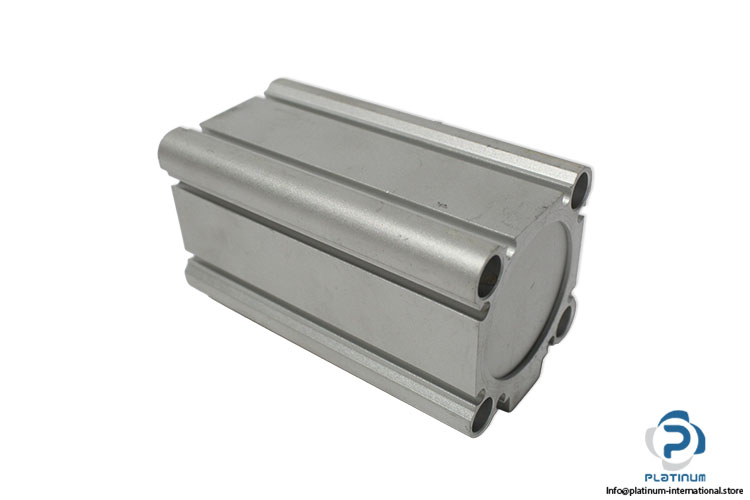

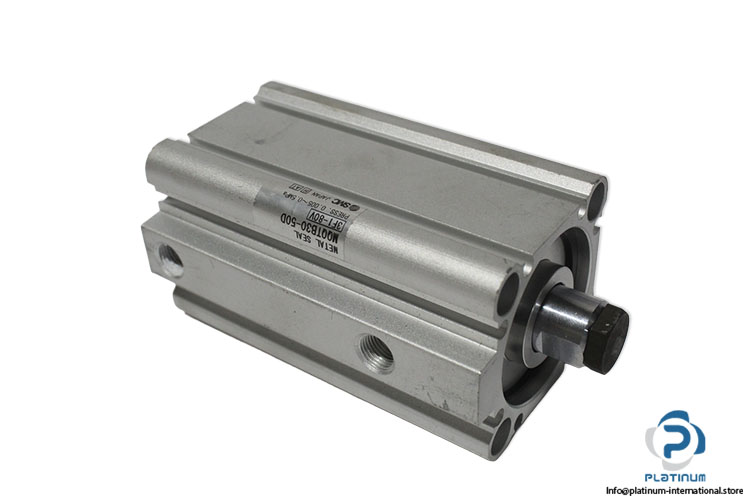

SMC MQQTB30-50D Compact LOW Friction Cylinder
New
In stock14 unitsReady to ship
Compact Low Friction Cylinder SMC MQQTB30-50D compact low friction pneumatic cylinder with 30 mm bore, 50 mm stroke, double acting operation, G1/8 port, and stainless steel piston for precision automation applications.
50DActingActuatorAirAutomationCompactCylinderDoubleFrictionIndustriallowMQQMQQTB30PneumaticSeriesSMC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

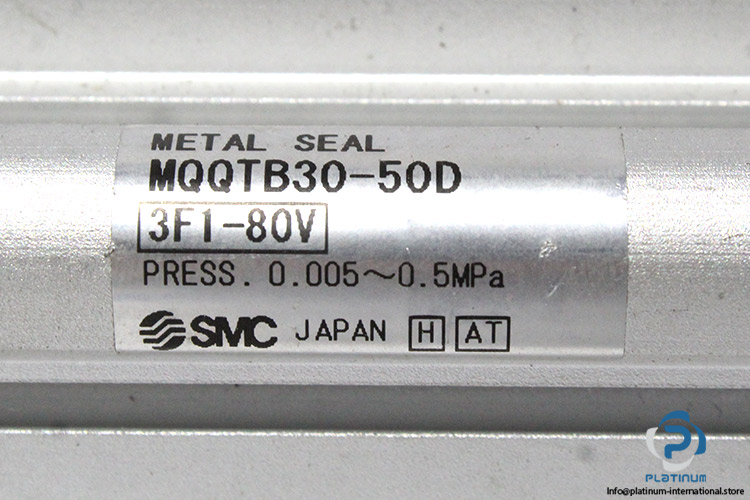

| Code | 3F1-80V / H AT |
| Series | MQQ |
| Fluid | Air |
| Stroke | 50 mm |
| Bore Size | 30 mm |
| Operating Mode | Double acting, Single Rod end Female thread |
| Cushion Type | Rubber bumper (Standard) |
| Rod Direction | One Side |
| Mounting Type | Through hole & Double end tapped (Standard) |
| Proof pressure | 1.05 MPa |
| Operating pressure | 0.005-0.5 MPa |
| Piston speed | 0.3 to 300 mm/s |
| Lubrication | Not required (non-lube) |
| Port size | G1/8 |
| Material Rod | Carbon steel |
| Material Seal | Metal |
| Material Piston | Special stainless steel |
| Ambient and fluid temperature | -10 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097396 |
| Weight | 0,80 |
