SMC MXQ12-10 AIR Slide Table
Used
In stock1 unitReady to ship
Air Slide Table
SMC MXQ12-10 air slide table with 50 mm stroke, 16 mm piston diameter, and double-acting operation. Designed for precise pneumatic linear motion with non-lube operation and compact construction.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

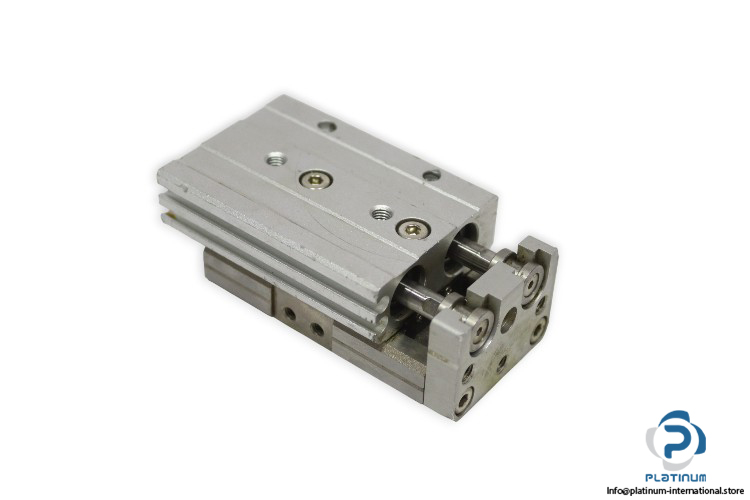

SMC MXQ12-10 Air Slide Table
The SMC MXQ12-10 is a compact air slide table designed for precise linear motion in pneumatic automation systems. It provides smooth, stable operation with high rigidity and accurate guidance, making it suitable for positioning and transfer applications.
Manufacturer: SMC
Type: Air Slide Table
Model: MXQ12-10
Series: MXQ
Connection
| Fluid | Air |
| Stroke Length | 50 mm |
| Piston Diameter | 16 mm |
| Operating Pressure | 0.15 to 0.7 MPa |
| Proof Pressure | 1.05 MPa |
| Mode Of Operation | Double Acting |
| Piston Speed | 50 to 500 mm/s |
| Cushion | Rubber Bumper (Standard, With Stroke Adjuster) |
| Pneumatic Connection | 5 mm |
| Lubrication | Non-Lube |
| Cleanliness Class (ISO Class) | 13-/22- : Class 5 |
| Ambient And Fluid Temperature | -10 to 60 °C |
| Connection Size | 5 mm |
