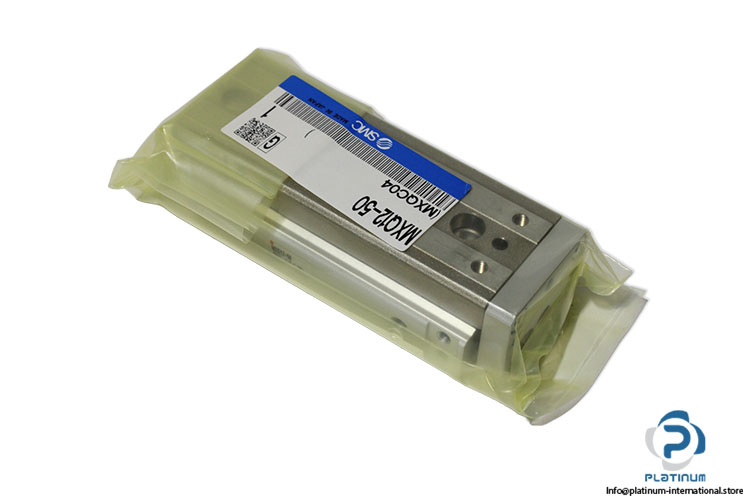

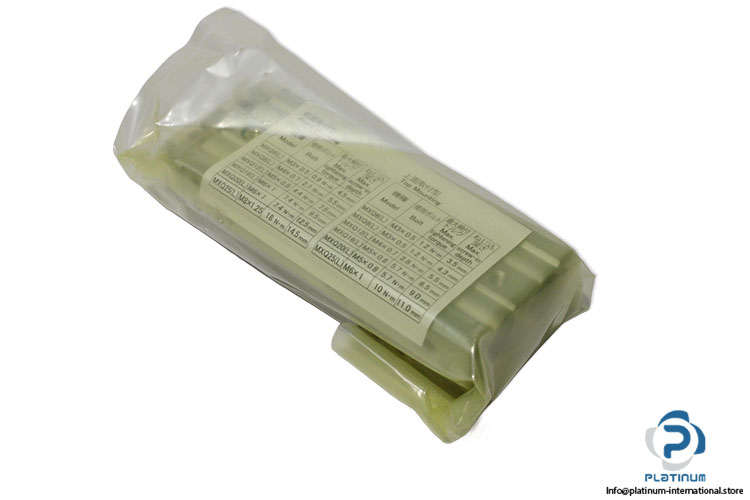

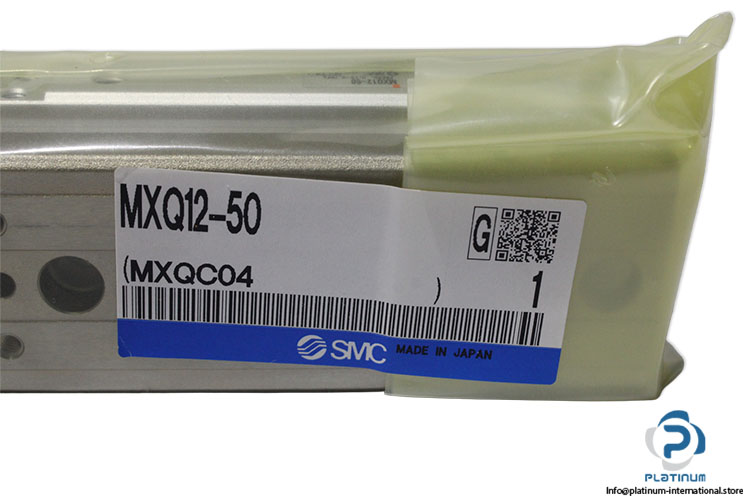

SMC MXQ12-50 AIR Slide Table
New
In stock4 unitsReady to ship
111,11$
The SMC MXQ12-50 Air Slide Table is a compact pneumatic actuator designed for precise linear motion and reliable positioning. Featuring a 50 mm stroke, 12 mm bore size, double-acting operation, and non-lube design, it is ideal for industrial automation and precision handling applications.
ActingActuatorAirANDAutomationCylinderDoubleEquipmenthandlingIndustrialLinearMotionMXQPickPlacePneumaticPrecisionSlideSMCSystemTable
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | MXQC04 / G |
| Series | MXQ |
| Fluid | Air |
| Stroke | 50 mm |
| Bore Size | 12 mm |
| Operating Mode | Double acting |
| Adjuster option | Without adjuster |
| Operating pressure | 0.15-0.7 MPa |
| Proof pressure | 1.05 MPa |
| Piston speed | 50 to 500 mm/s |
| Lubrication | Non-lube |
| Port size | 5MM |

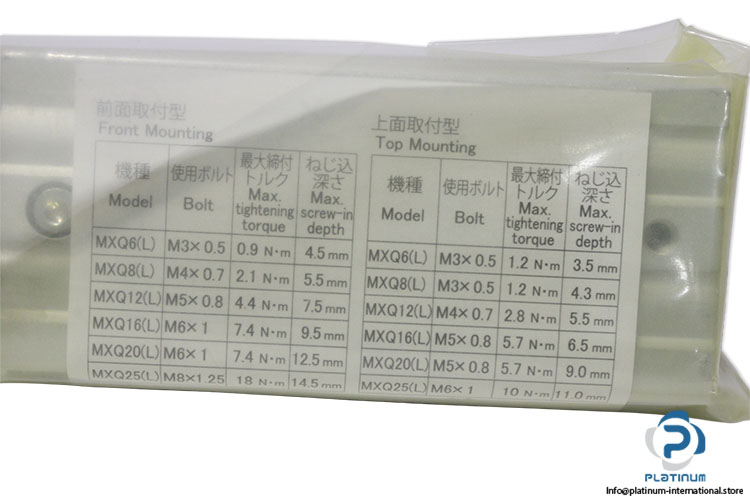

| Tightening Torque | Front Mounting (max. 4.4 N.m, Screw-in Depth 7.5 mm) , Top Mounting (max. 2.8 N.m, Screw-in Depth 5.5 mm) |
| Top Mounting Bolt Size | M4 x 0.7 |
| Front Mounting Bolt size | M5 x 0.8 |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097495 |
| Weight | 0,50 |
