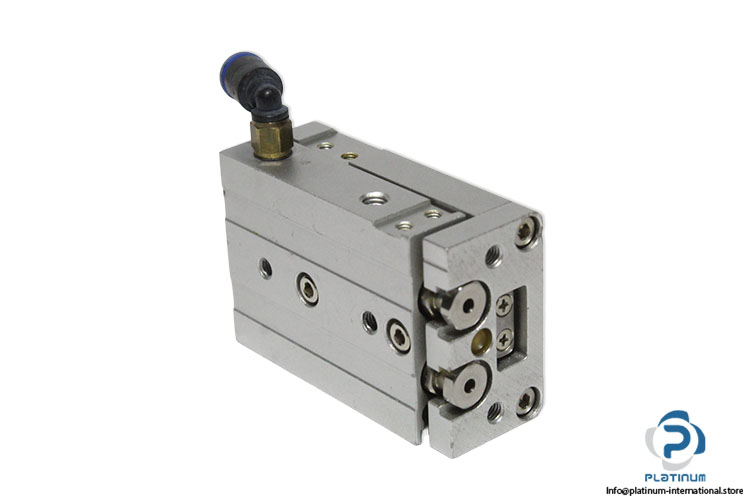

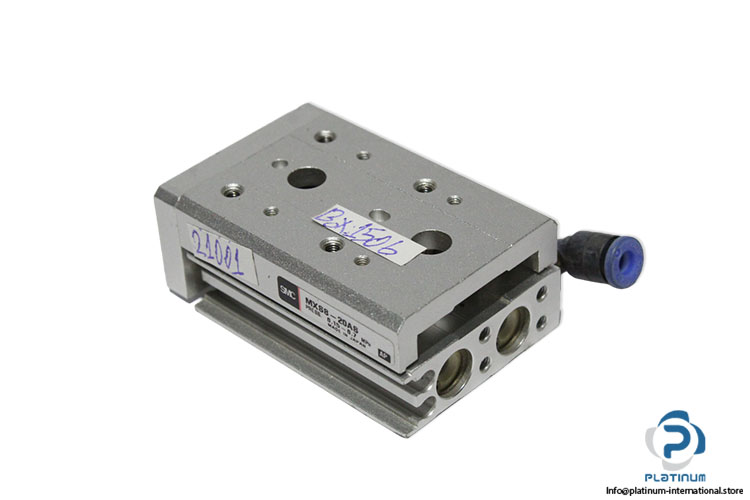

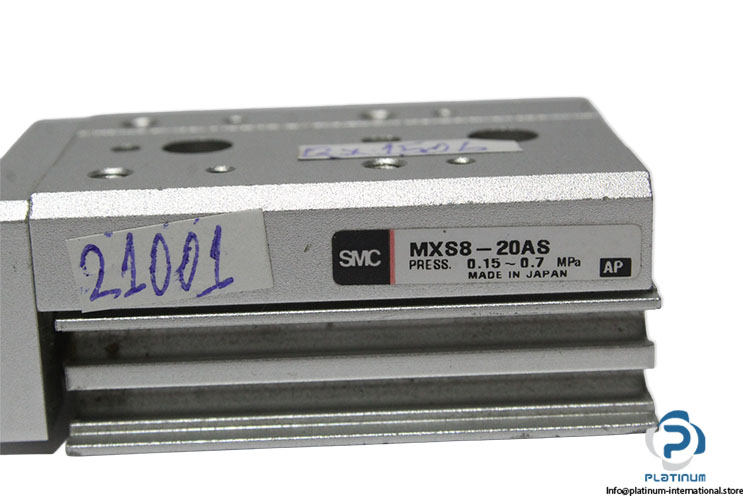

SMC MXS8-20AS AIR Slide Table
New
In stock1 unitReady to ship
111,11$
SMC MXS820AS Air Slide Table Without Adjuster The SMC MXS820AS Air Slide Table Without Adjuster is a compact pneumatic actuator designed for precise linear motion and reliable automation performance. Featuring an 8 mm bore size, 20 mm stroke, double-acting operation, and non-lube design, it is ideal for high-precision industrial motion applications.
ActingActuatorAirAutomationCompactComponentsCylinderDoubleIndustrialLinearMXSPneumaticPrecisionSeriesSlideSMCTable
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | AP |
| Series | MXS |
| Fluid | Air |
| Stroke | 20 mm |
| Bore Size | 8 mm |
| Piping port size | M5 x 0.8 |
| Operating Mode | Double acting |
| Proof pressure | 1.05 MPa |
| No. of auto switch | 2 |
| Operating pressure | 0.15-0.7 MPa |
| Piston speed | 50 to 500 mm/s |
| Cushion Type | Rubber bumper |
| Lubrication | Non-lube |
| Port size | 5MM |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097486 |
| Weight | 0,15 |
