SMC PS1000-R06L Electronic Pressure Switch
New
In stock2 unitsReady to ship
Electronic Pressure Switch
The SMC PS1000-R06L is an electronic pressure switch designed for air and non-corrosive gas applications. It offers precise pressure control with a set pressure range of “0.1 to 0.45 MPa, 1 MPa max operating pressure, and IP40 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

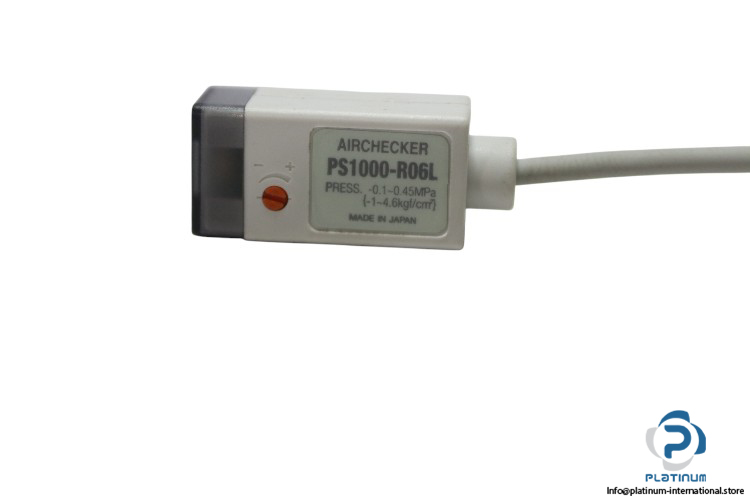

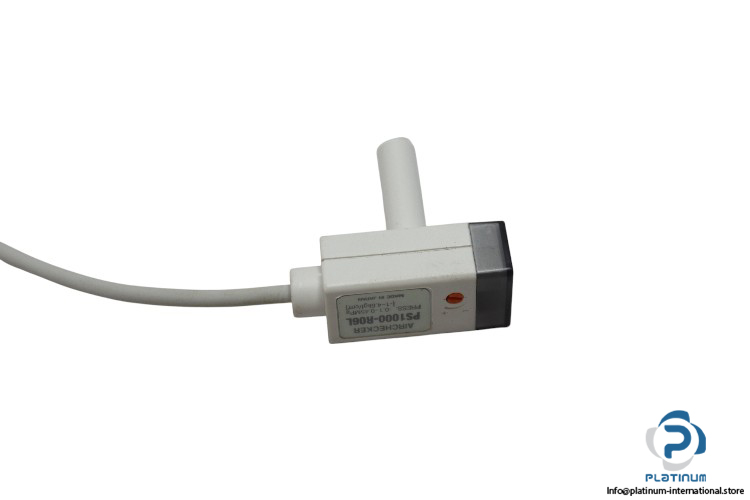

SMC PS1000-R06L Electronic Pressure Switch / Air Checker
The SMC PS1000-R06L is an electronic pressure switch designed for precise pressure monitoring and control. Suitable for air and non-corrosive gases, it features a set pressure range of “0.1 to 0.45 MPa and a maximum operating pressure of 1 MPa. With a 3-meter cable and a wide operating temperature range, it provides reliable performance for industrial applications.
Manufacturer: SMC
Type: Electronic Pressure Switch / Air Checker
Model: PS1000-R06L
Technical Data:
- Piping: 6 mm diameter

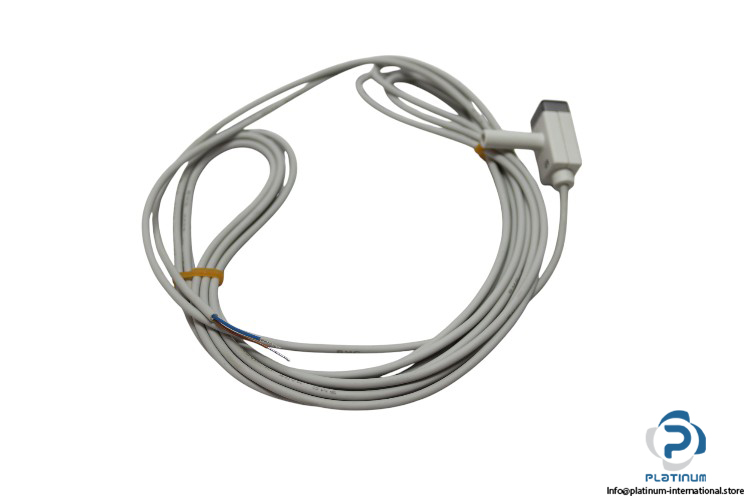

- Cable Length: 3 m
- Max Operating Pressure: 1 MPa
- Set Pressure: “0.1 to 0.45 MPa
- Applicable Fluid: Air, Non-corrosive gas, Non-flammable gas
- Power Supply Voltage: 12 to 24 VDC
- Current Output Type: 5 to 40 mA
- Degree of Protection: IP40
- Operating Temperature Range: 0 to 60°C
- Wetted Parts Material:
- Pressured Sensor Part: Silicon
- Body Part: PBT
- O-ring: NBR
