SMC PSE550-28-AC2 LOW Differential Pressure Sensor

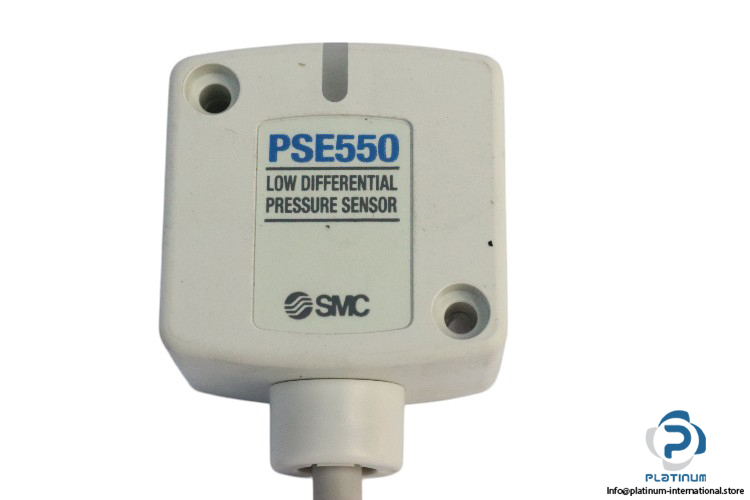

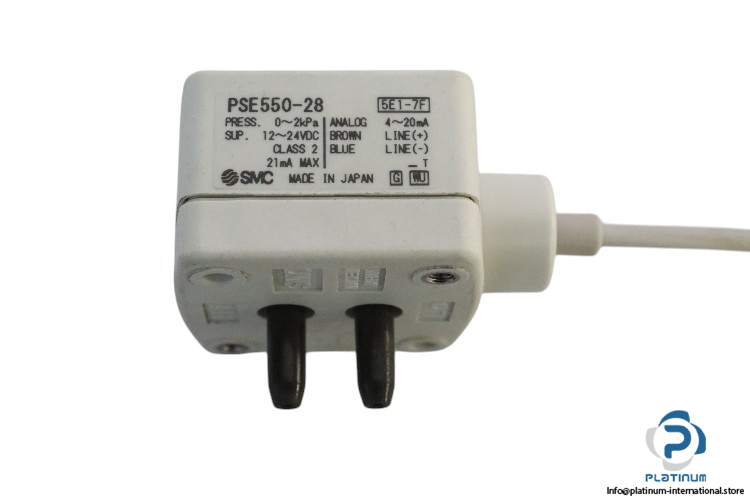

SMC PSE550-28-AC2 Low Differential Pressure Sensor

The SMC PSE550-28-AC2 Low Differential Pressure Sensor is an advanced sensor designed for precise measurement of differential pressure in various applications. It is suitable for use with air, non-corrosive gases, and non-flammable gases, offering a wide operating pressure range and reliable output specifications for industrial environments.

• Manufacturer: SMC
• Type: Low Differential Pressure Sensor
• Model: PSE550-28-AC2

Technical Specifications:

• Rated Differential Pressure Range: 0 to 2 kPa
• Operating Pressure Range: “50 to 50 kPa
• Proof Pressure: 65 kPa
• Applicable Fluid: Air, Non-corrosive gas, Non-flammable gas
• Power Supply Voltage: 12 to 24 VDC±10%
• Current Output Type: 4 to 20 mA
• Output Specification: Analog output: 4 to 20 mA (within rated differential pressure range)
• Allowable Load Impedance: 500 Ω or less (at 24 VDC), 100 Ω or less (at 12 VDC)
• Withstand Voltage: 1000 VAC
• Insulation Resistance: 50 MΩ
• Port Size: 4.8 mm
• Wetted Parts Material: Resin pipe: Nylon, Piston area of sensor: Silicon

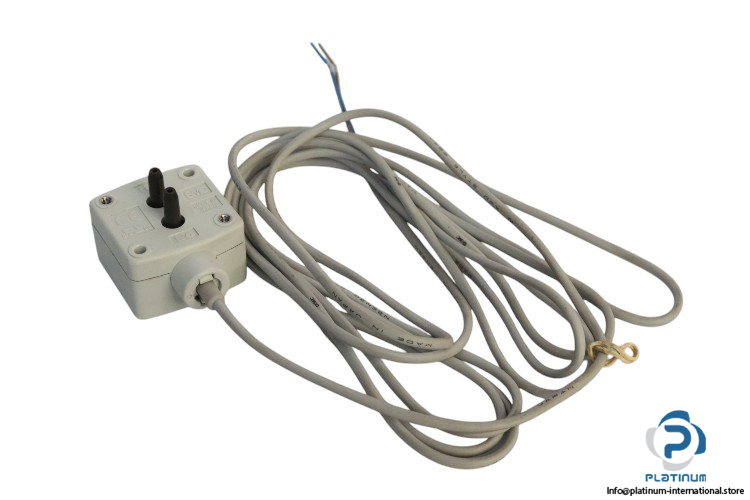

• Sensor Cable: Oil proof heavy-duty vinyl cable (ellipse), 2 cores, 2.7 x 3.2, 3 m
• Conductor Area: 0.15 mm²
• Insulator O.D.: 0.9 mm
• Degree of Protection: IP40
• Operating Temperature Range: 0 to 50°C

The SMC PSE550-28-AC2 Low Differential Pressure Sensor is designed to deliver high accuracy and reliability for measuring differential pressure. With its wide operating temperature range and high insulation resistance, it is a perfect solution for demanding applications that require precise fluid and gas pressure measurement.
