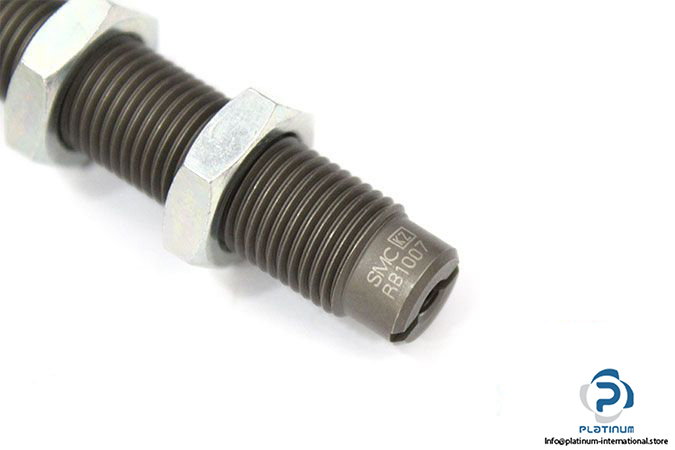

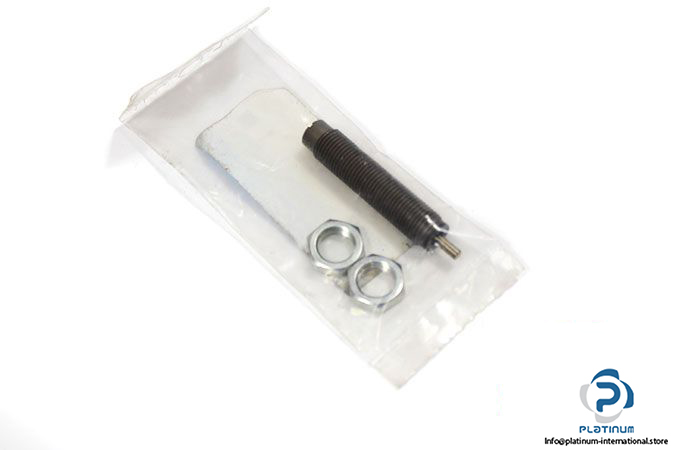

SMC RB1007 Shock Absorber

Manufacturer: SMC

Type: SHOCK ABSORBER

Series: RB

Part No.: RB1007

Max. energy absorption: 5.88 J

Collision speed: 0.05 … 5.0 m/s

Max. Operating Frequency: 70 cycle/min

Max. Allowable Thrust: 422 N

Extended Spring Force: 4.22 N

Retracted Spring Force: 6.86 N

Housing Material: Steel

Stroke Length: 7 mm

Rod Diameter: 3 mm

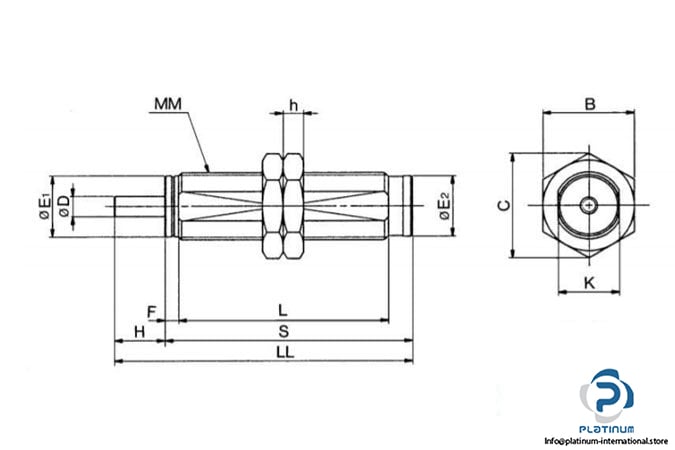

Length (E2): 8.6 mm

Total length (LL): 63.7 mm

Diameter and Step for Threaded Surface: M10 x 1.0

Hexagon nut Width(h): 4 mm

Temperature Range: -10 ….. 80 ^°C

Weight: 0.02 kg
