Smem 5AZPV 90S-8/4 B3 3-PHASE Electric Motor

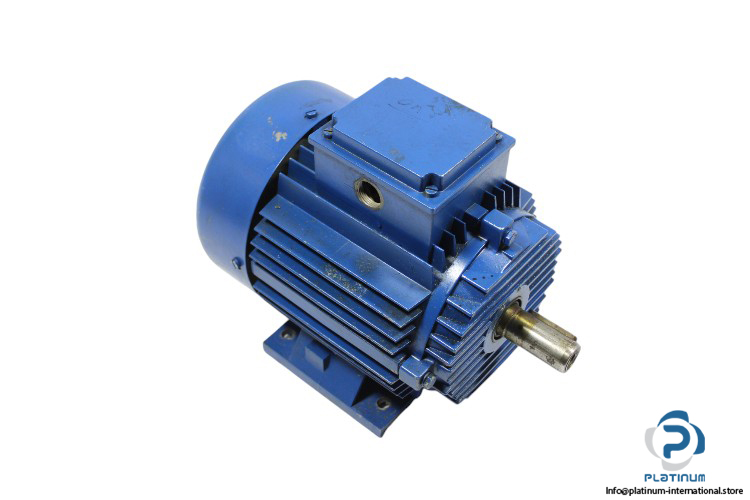

SMEM 3-PHASE ELECTRIC MOTOR

The SMEM 3-Phase Electric Motor (Model: 5AZPV 90S-8/4 B3) is designed for efficient performance in industrial applications. With a rated voltage of 380V, this motor operates at speeds of 690 and 1400 rpm, delivering power ranging from 0.25 kW to 1.1 kW. It offers robust protection with IP55 rating and an insulation class of F, making it suitable for demanding environments.

Manufacturer: SMEM

Type: 3-Phase Electric Motor

Model: 5AZPV 90S-8/4 B3

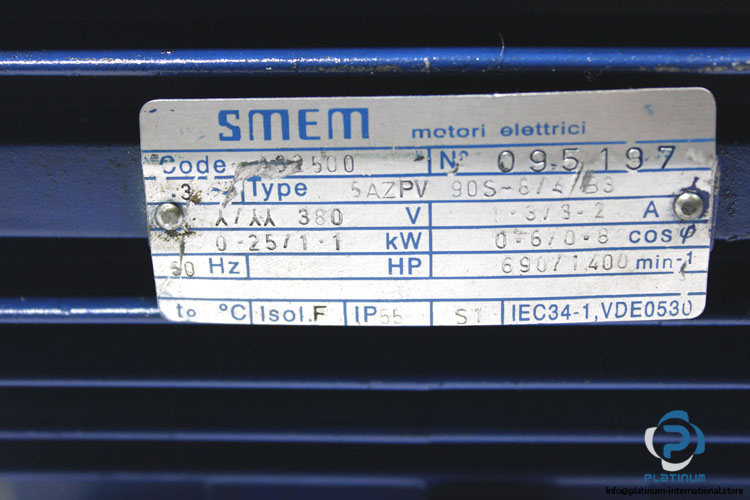

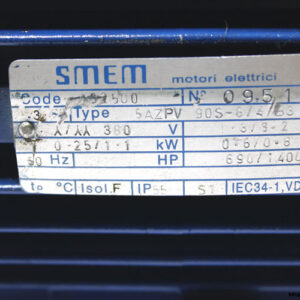

Technical Specifications

• Rated Voltage: 380 V
• Rated Speed: 690 / 1400 rpm
• Rated Power: 0.25 / 1.1 kW
• Rated Frequency: 50 Hz
• Rated Current: 1.3 / 3.2 A
• Power Factor: 0.6 / 0.8
• Protection Class: IP 55
• Insulation Class: F
• Duty: S1
