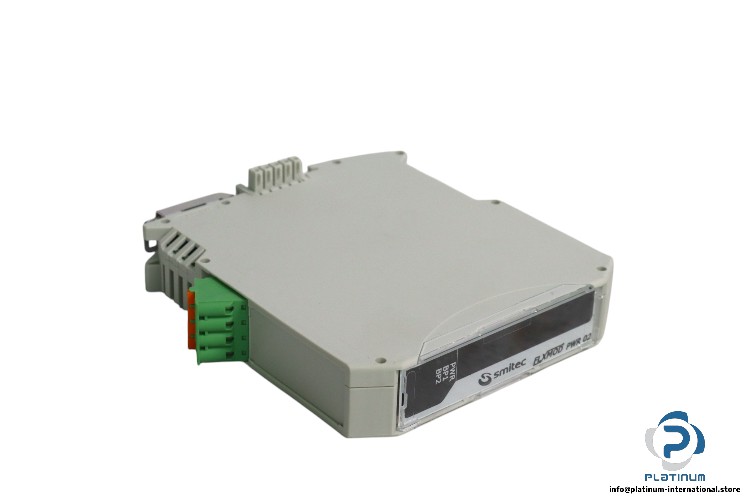

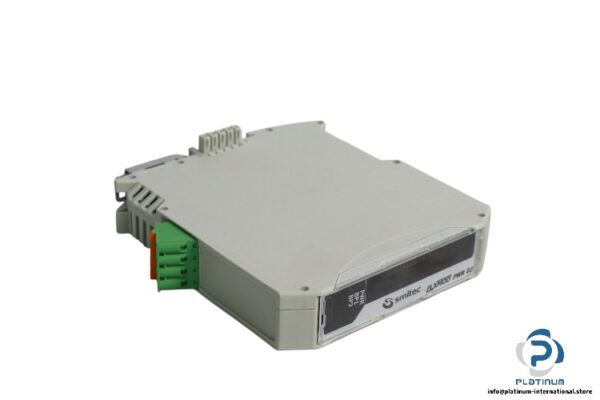

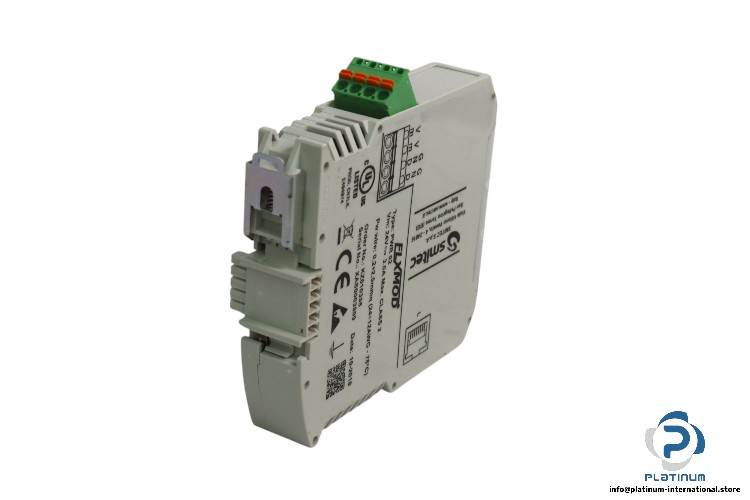

Smitec PWR 02 Power Supply Module
New
Available on request
The Power Supply Module (Model: PWR02, Order No.: KZ010355, Part No.: 13615) from Smitec is designed to provide 24 V DC, with a maximum current consumption of 3 A and visual power indicators. It features spring cage terminals for easy connections and an RJ-45 bus connection. Suitable for use in a temperature range of 5 to +55°C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

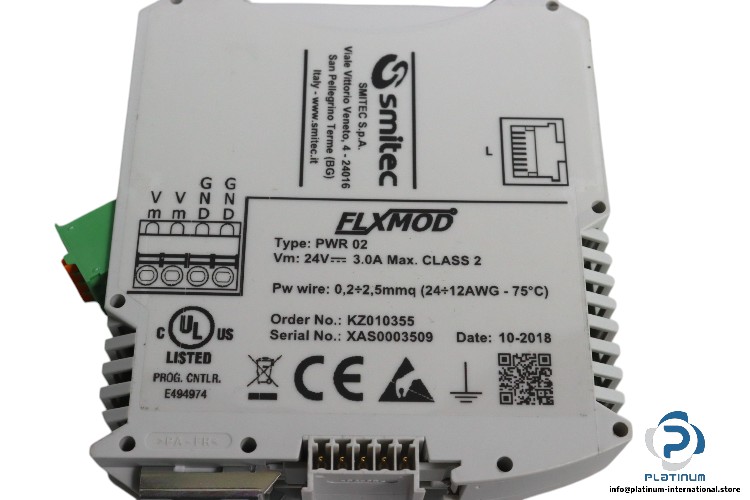

Smitec Power Supply Module PWR02
The Smitec Power Supply Module PWR02 is a compact, reliable, and efficient module designed for powering industrial systems. Its robust construction and advanced features make it suitable for various automation and control applications.
🔧 Technical Specifications:
- Manufacturer: Smitec
- Type: Power Supply Module
- Model: PWR02
- Order No.: KZ010355
- Part No.: 13615
- Main Power Supply (Vm): 24 V DC
- Current Consumption from Main Supply: 3 A max.
- Supply Fuse: 5 A
- Input Power Visual Indicators: Green LED lamp (PWR) lights when supply is present.
- Connection Method for Connectors: Spring cage terminals
- Bus External Connections: RJ-45 connector
- Recommended Cable Type: Straight CAT 5E Ethernet cable
- Permissible Air Pressure (Operation): 80 to 106 kPa
- Conductor Cross-Section (Power Connector): 0.2 to 2.5 mm² (24€“12 AWG)
- Functional Earth Connection: To the DIN rail with spring contact
- Degree of Protection: IP20
- Operating Temperature: 5 to +55°C
- Dimensions (W x H x D): 22.5 x 99 x 114.5 mm
