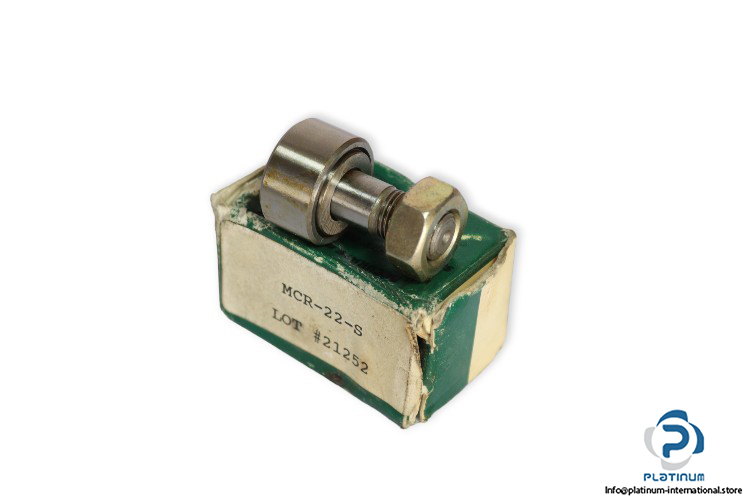

Smith MCR-22-S Stud Type Track Roller

Manufacturer: SMITH
Type: Stud type track roller
Model: MCR22S

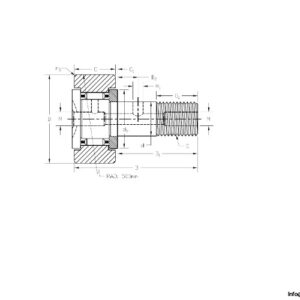

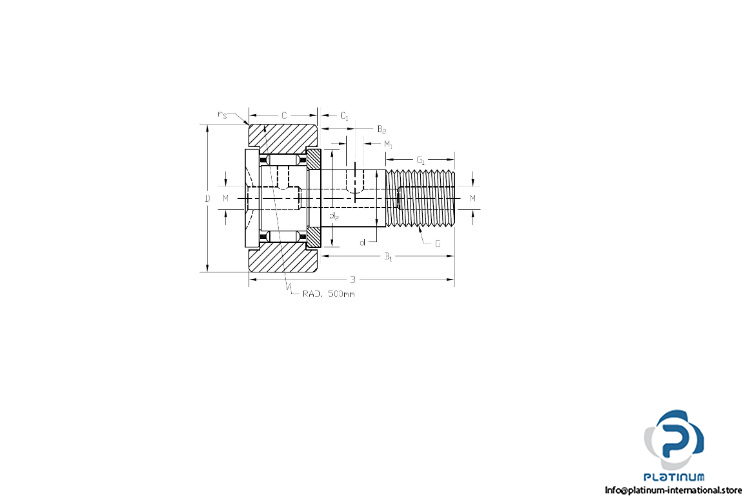

Dimensions:
Outside diameter D: 22 mm
Fit diameter of roller stud d: 10 mm
Roller Width C: 12 mm
Stud Length B1: 23 mm
Overall Length B: 36 mm
Thread G: M10X1
Thread length G1: 12 mm
Basic load ratings, radial:
Dynamic C_{r w}: 5700 N
Static C_{0r w}: 6500 N
Max. Speed: 11000 rpm
