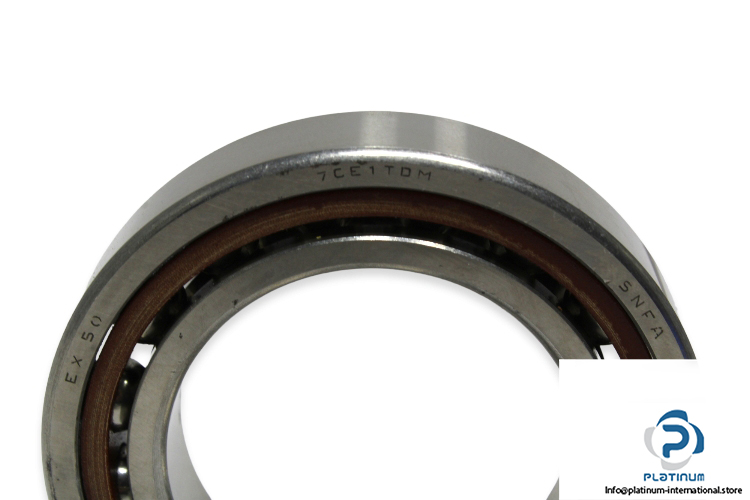

Snfa EX50 7CE1TDM Angular Contact Ball Bearing

Manufacturer: SNFA

Type: Super-precision, Hight load capacity, universally matchable single row angular contact ball bearing

Model: EX50 7CE1 TDM

Alternative part number: 7010



Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 80 mm

Width: 16 mm

Contact angle: 15 °

Dynamic load rating: 2860 daN

Static load rating: 2730 daN

Reference speed for oil lubrication: 23000 RPM

Preload: M, Medium preload

Precision class: 7, ABEC 7

Cage material: Phenolic Resin
