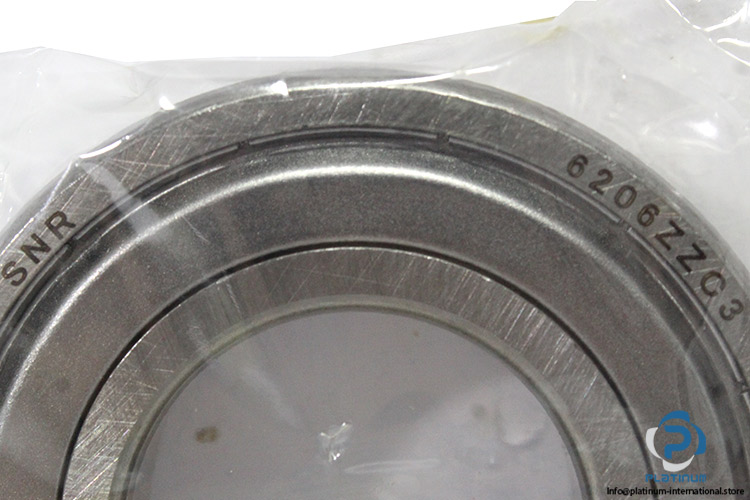

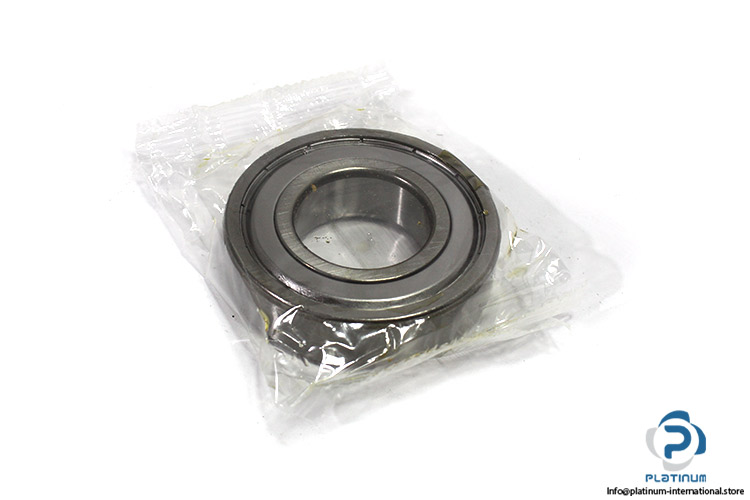

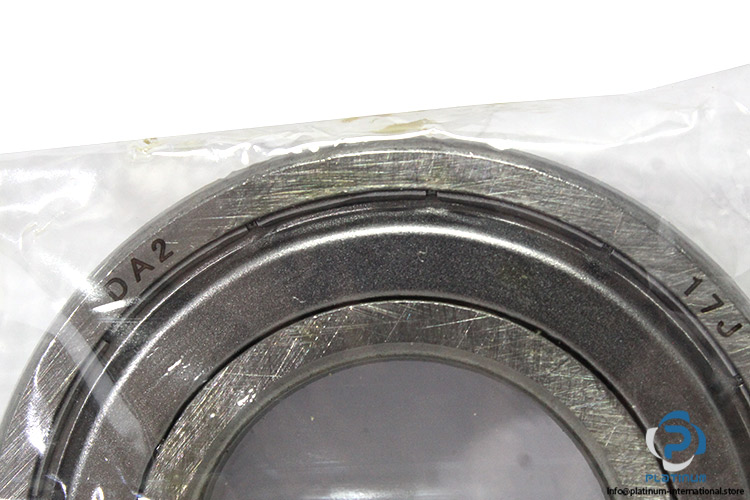

SNR 6206ZZC3 Deep Groove Ball Bearing

In stock1 unitReady to ship

Deep Groove Ball Bearing NTN/SNR single-row deep groove ball bearing with C3 radial clearance, 30 mm bore, 62 mm outer diameter and 16 mm width for industrial applications.

Manufacturer
SNR / NTN
SKU
1101127
Category
Deep Groove
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SN3413520129590
Bore diameter d30 mm
Outer diameter D62 mm
Width B16 mm
Radial clearance classC3
Dynamic Load Capacity C20,5 kN
Static Load Capacity C011,3 kN
Cu - Fatigue limit load0,51 kN
f0 – Coefficient13.8
N ref - Reference thermal speed12000 tr/min
N lim - Mechanical Limit Speed14000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
da min - Min shoulder diameter IR35 mm
Da max - Max shoulder diameter OR57 mm
ra max - Max shaft & housing fillet radius1 mm
Stock keyCON003
ConditionNew
SKU1101127
Weight0,20
