SNS 4R210-08 Hand Draw Valve
Used
In stock1 unitReady to ship
5/2 Hand Draw Valve
The SNS 4R210-08 is a mechanical 5 by 2 way valve with aluminum alloy body, NBR seals, and operating pressure up to 8 kilograms per square centimeter for reliable pneumatic air control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

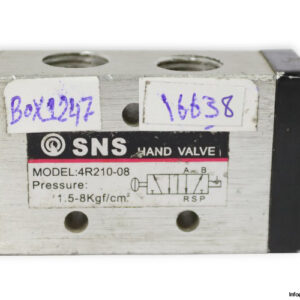

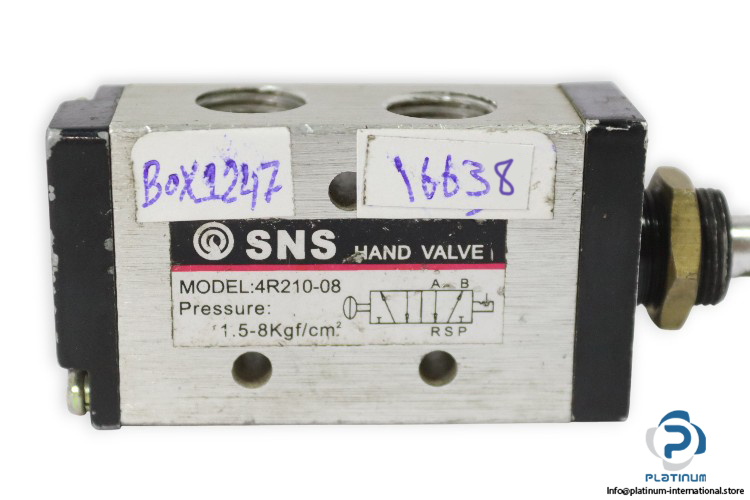

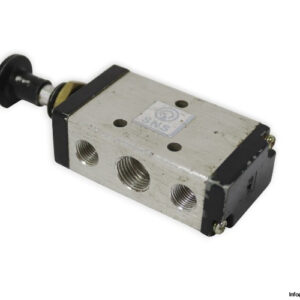

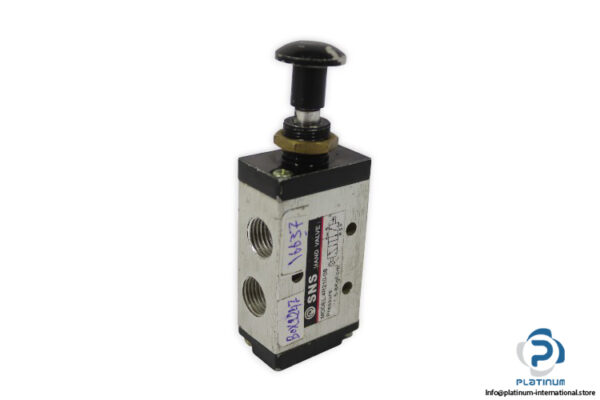

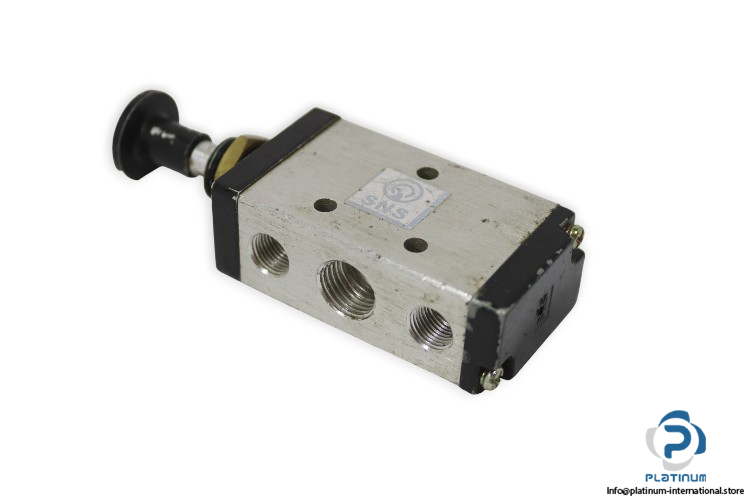

SNS 4R210-08 5/2 Hand Draw Valve
The SNS 4R210-08 5/2 Hand Draw Valve is a durable mechanical valve designed for reliable manual air control in pneumatic systems. Constructed with a strong aluminum alloy body and NBR seals, it ensures long-lasting performance and consistent operation across a wide pressure range.
Manufacturer: SNS
Type: 5/2 Hand Draw Valve
Model: 4R210-08
Series: 4R
| Type of Actuation | Mechanical |
| Function | 5 by 2 way valve |
| Operating Pressure | 1.5 to 8 kilograms per square centimeter |
| Fluid | Air |
| Working Pressure | 0 to 0.8 MPa |
| Proof Pressure | 1.0 MPa |
| Working Temperature | 0 to 60 degree Celsius |
| Material Body | Aluminum Alloy |
| Material Seal | NBR |
| Port Size | G1 by 8, G1 by 4 |
