Solar Edge OP300-MV-MC4SM-4 Power Optimizer
The SolarEdge Power Optimizer (Model: OP300-MV-MC4SM-4) optimizes the performance of solar systems, offering 300W max output power, a wide input voltage range, and protection class IP65, suitable for residential and commercial solar installations.
SolarEdge Power Optimizer – Model OP300-MV-MC4SM-4
The SolarEdge Power Optimizer (Model: OP300-MV-MC4SM-4) is designed to optimize the performance of solar systems by managing the output from individual solar modules. This device provides improved energy harvest, monitoring, and protection of the system, making it ideal for residential and commercial photovoltaic installations.

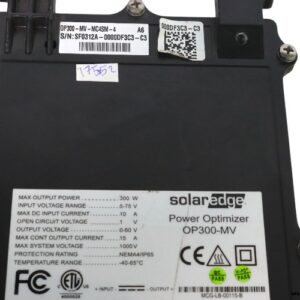

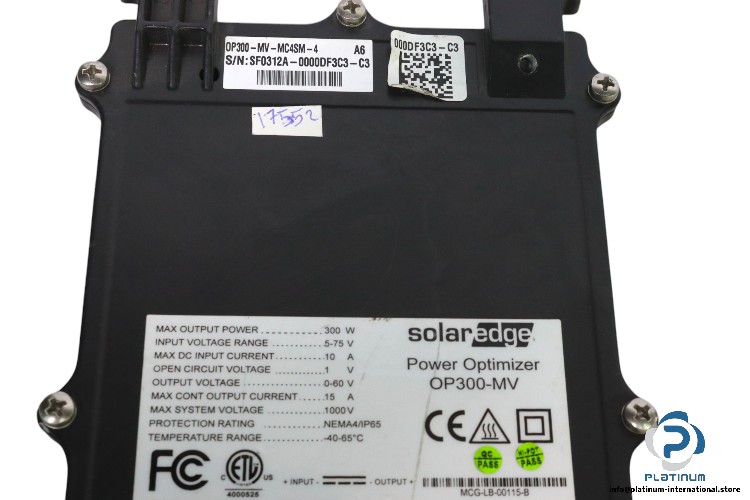

Key Features:
- Manufacturer: SolarEdge
- Model: OP300-MV-MC4SM-4
- Type: Power Optimizer
- Max Output Power: 300 W
- Input Voltage Range: 5-75 V
- Max DC Input Current: 10 A
- Open Circuit Voltage: 1 V
- Output Voltage: 0-60 V
- Max Continuous Output Current: 15 A
- Max System Voltage: 1000 V
- Protection Rating: IP65
- Temperature Range: -40 to 65°C
- Dimensions: 143 x 210 x 45 mm
SolarEdge™s Power Optimizer is essential for maximizing the performance of each solar panel, ensuring better overall energy generation and efficiency. With a protection rating of IP65, it can withstand harsh outdoor conditions, providing high reliability and longevity in solar installations.
