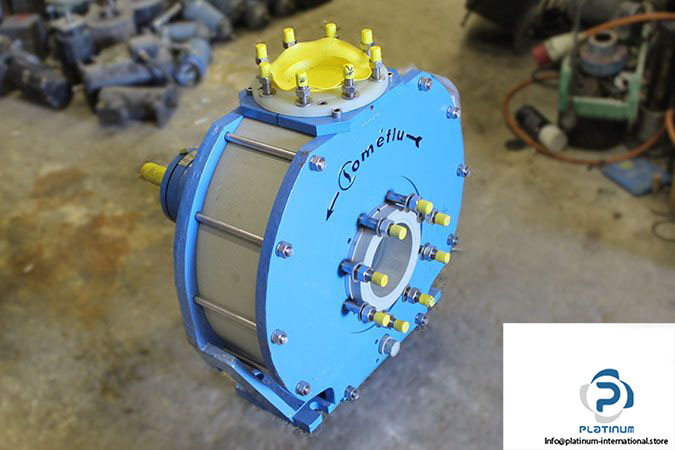

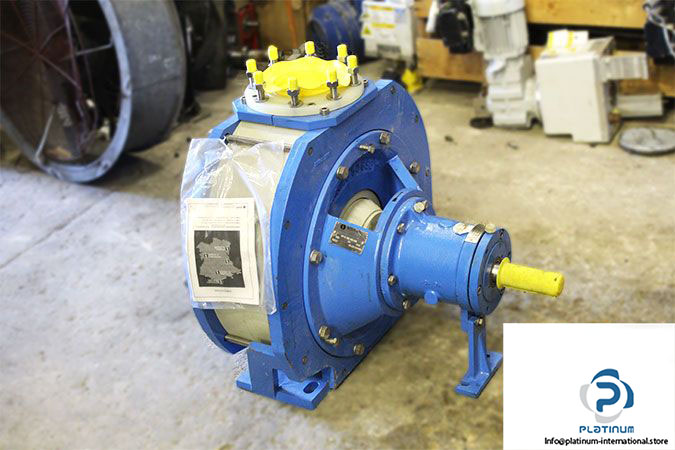

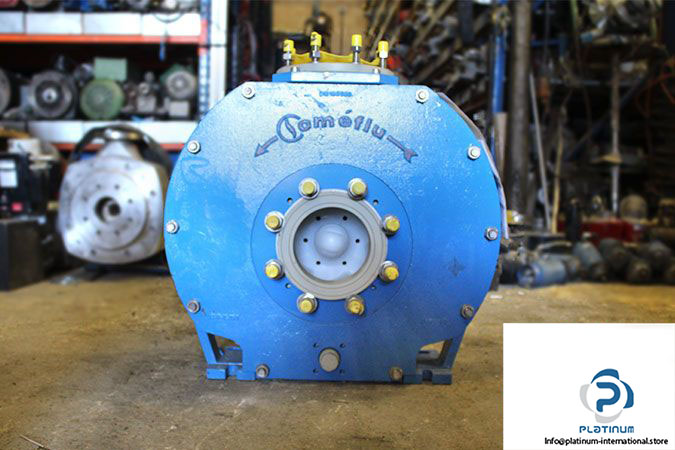

SOMEFLU NP-S 150-125-315 CENTRIFUGAL PUMP with MECHANICAL SEAL
Manufacturer: Someflu
Type: Centrifugal Thermo Plastic Process Pump

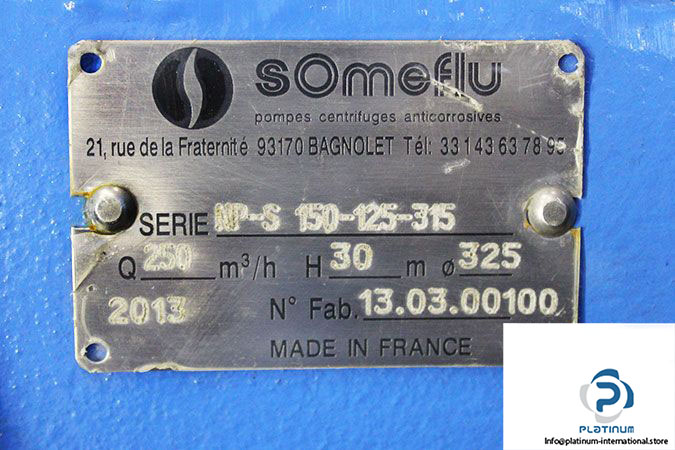

Model: NP S150-125-315
Application:
- Highly concentrated acids (98% H2SO4, 36% HCl, 70% HF)
- Wastewater treatment
- Odor control / Gas scrubber
- Steel industry (pickling, surface treatment, …)
- Chemical industry
- Fertilizer
- Mining
Suction (Input): DN 150
Discharge (Output): DN 125
Flow Rates: 250 m3/h
Frequency: 50/60 Hz
Head Loss: 30 m
Input Flange Diameter: 300 mm
Output Flange Diameter: 250 mm
Shaft Diameter: 42 mm
Impeller: 325 Ø
Temperature Range: -60 … 200°C
Weight: 230 kg
