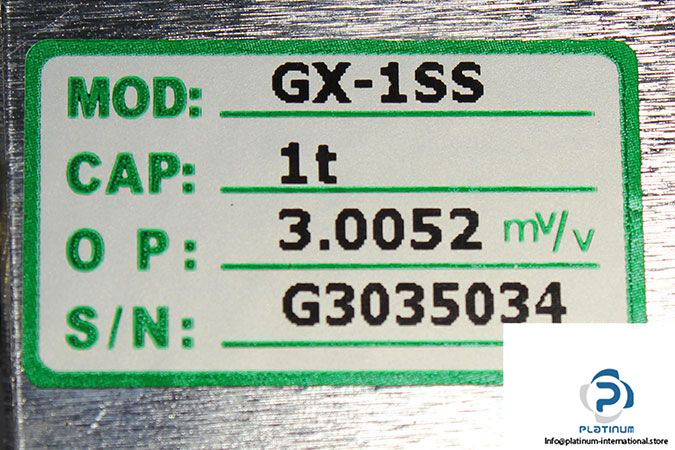

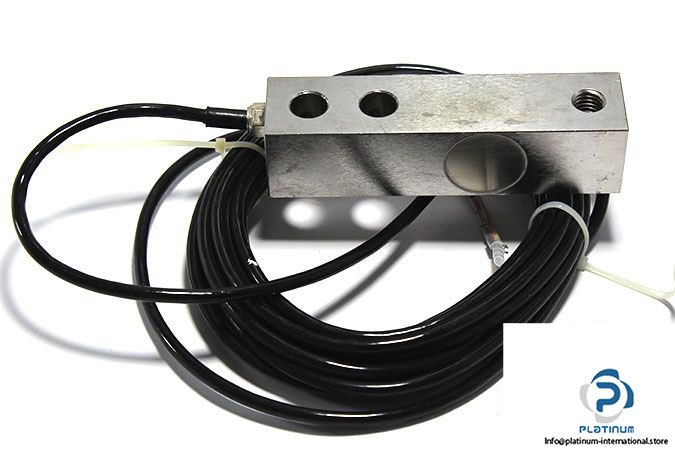

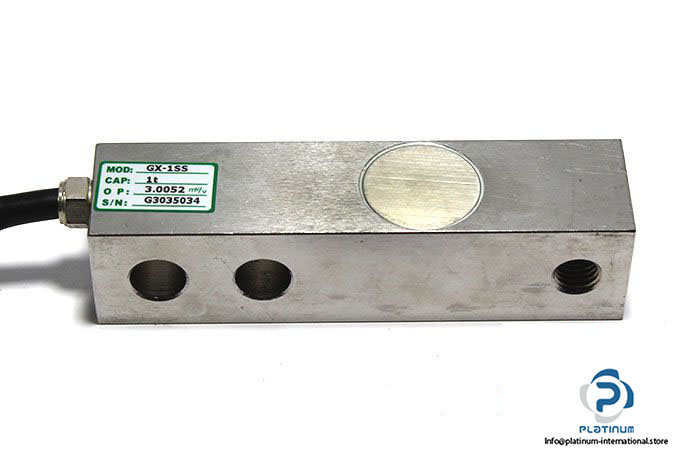

Southocean GX-1SS MAX 1000 KG Shear Beam Load Cell

Manufacturer: SOUTHOCEAN

Type: Shear Beam Load Cell

Model: GX-1SS

Features

• Self-Centering, Simple to Install, Easy to Use, Diverse Loading.
• One End Fixed, Good Seal Structure.
• Materials:


  • Alloy Steel
  • Stainless Steel
  • Fully Welded (IP68)

Application

• Suitable for Various Ultrathin Electronic Truck Scale, One Truck Crane Scale, Hopper Scale, Etc
• Weighs Axes
• Hoppers
• Weighing Platforms

Maximum weight limit (E max): 1000 kg

Nominal Output: 3.0052 mV/V

Nominal Supply Voltage: 10 V

Input Resistance: 385±10% Ω

Output Resistance: 350±3% Ω

Nominal Temperature: -10…40 °C

Cable Length: 6 m

Protection Class: IP68

Weight: 1.080 kg
