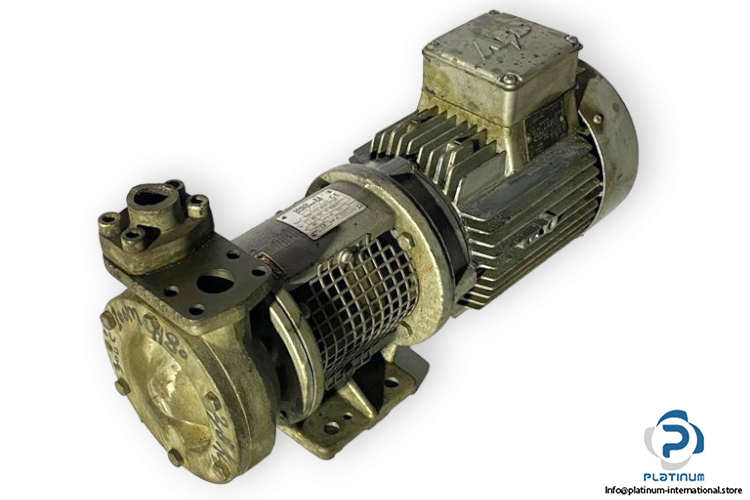

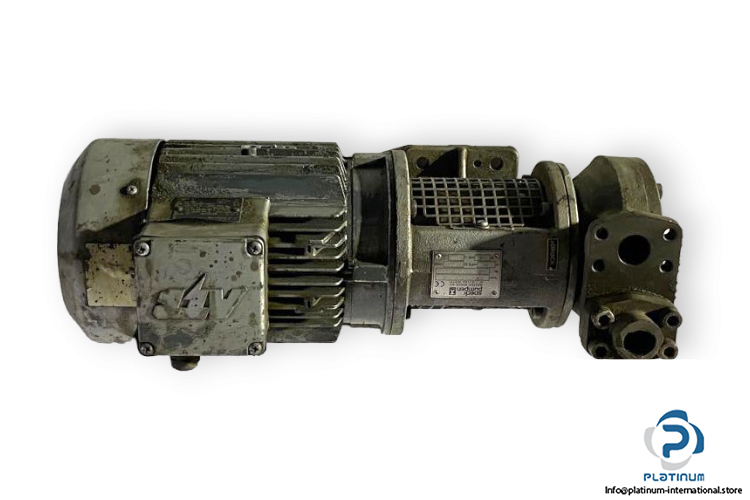

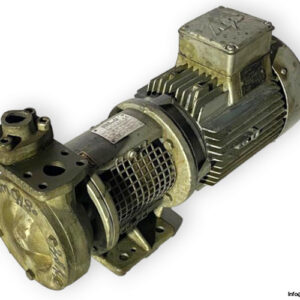

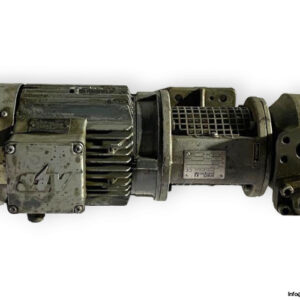

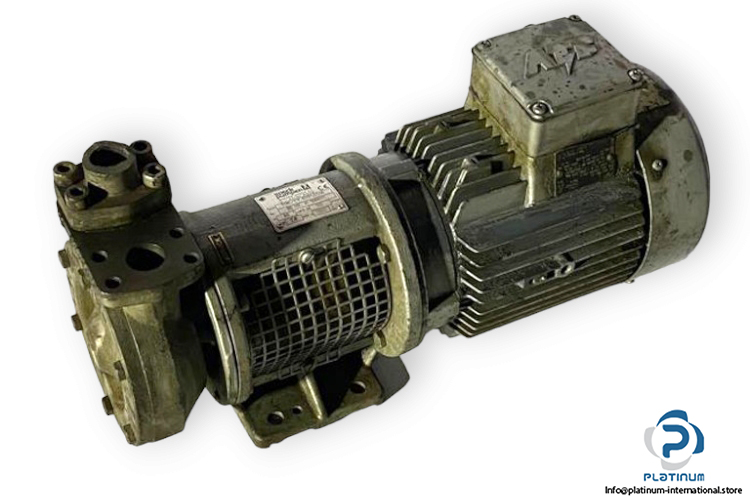

Speck Pumpen TOE/CY-6091.0246 Heat Transfer Pump

Speck Pumpen TOE/CY-6091.0246 Heat Transfer Pump

The Speck Pumpen TOE/CY-6091.0246 Heat Transfer Pump is designed for efficient oil transfer in high-temperature applications. Constructed from spheroidal graphite cast iron, this pump offers robust performance with a rated power of 2.8 kW and can handle a max temperature of 350°C. It is ideal for demanding industrial environments, providing reliable flow with a capacity of 100 l/min and a total pumping height of 80 meters.

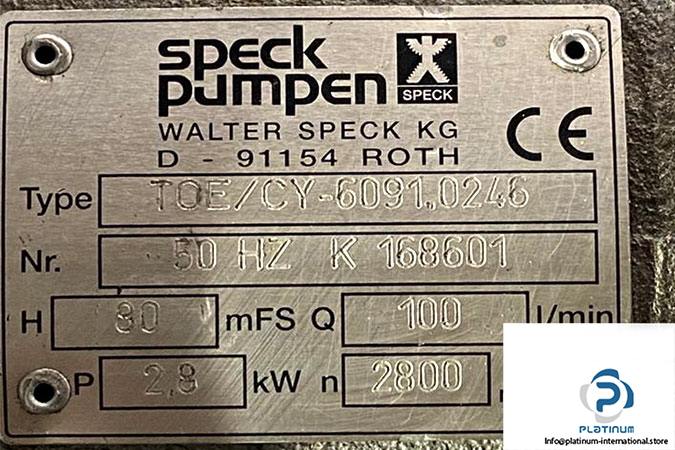

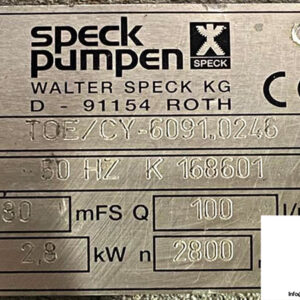

Manufacturer: SPECK PUMPEN

Type: Heat Transfer Pump

Model: TOE/CY-6091.0246

Ref No.: 50 HZ K 168601

Technical Data:

• Media: Oil
• Material Design: Spheroidal graphite cast iron
• Rated Power: 2.8 kW
• Rated Speed: 2800 1/min
• Capacity: 100 l/min
• Total Pumping Height: 80 mfs
• Max. Temperature: 350 °C

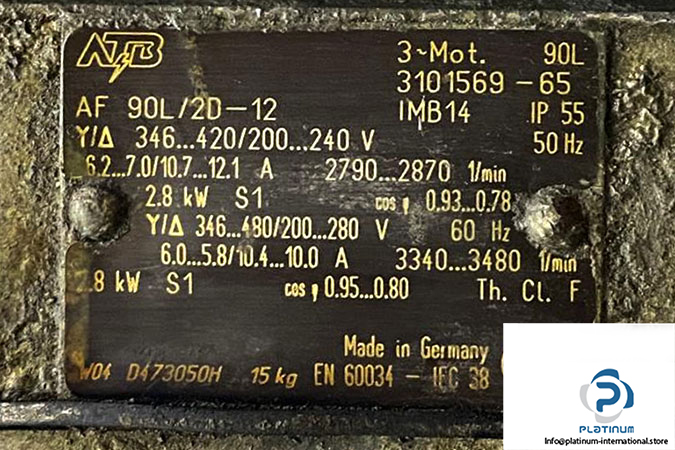

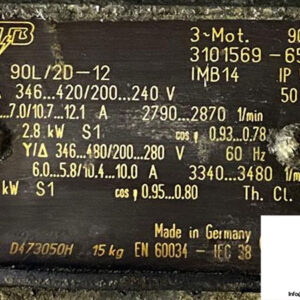

Motor Attachment:

Manufacturer: ATB

Type: Motor

Model: AF 90L/2D-12

Part No.: 3101569-65

Motor Technical Data:

• Voltage Rating at 50 Hz: 346 / 420 / 200 / 240 V (star / delta)
• Current: 6.2 / 7.0 / 10.7 / 12.1 A
• Speed Rating: 2790 / 2870 1/min
• Power Rating: 2.8 kW
• Protection Class: IP55
• Voltage Rating at 60 Hz: 346 / 420 / 200 / 280 V (star / delta)
• Current at 60 Hz: 6.0 / 5.8 / 10.4 / 10 A
• Speed Rating at 60 Hz: 3340 / 3480 1/min
• Power Rating at 60 Hz: 2.8 kW
• Protection Class at 60 Hz: IP55
