Spirax Sarco SA 121 Self-Acting Temperature Control System
New
Available on request
150,00$
Temperature Control System
Spirax Sarco SA121 self-acting temperature control system designed for precise industrial temperature regulation, featuring brass components, capillary sensing system, and multiple temperature ranges.ActingcapillaryControlControllerDN25IndustrialProcessregulatorSA121SarcoSelfSpiraxSteamSystemTemperatureValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

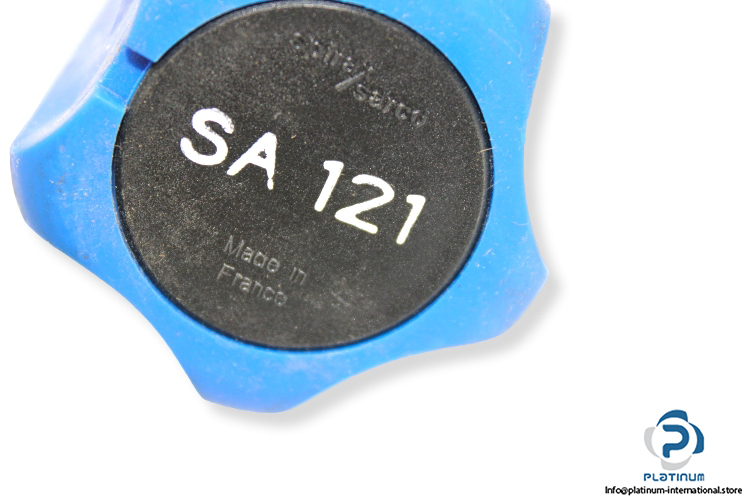

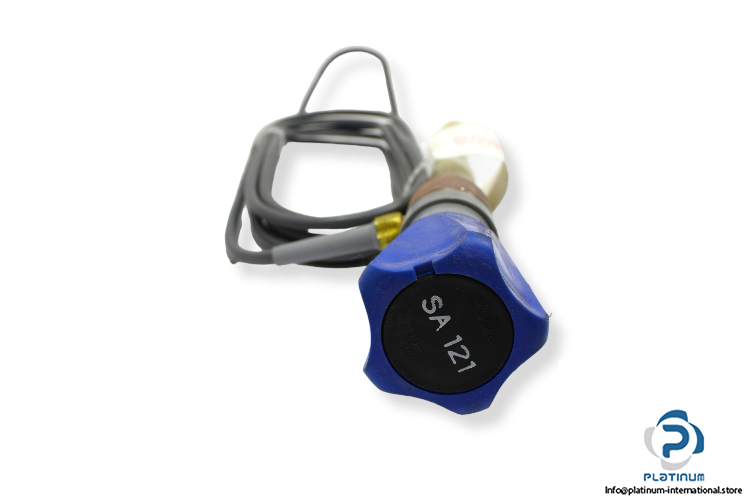

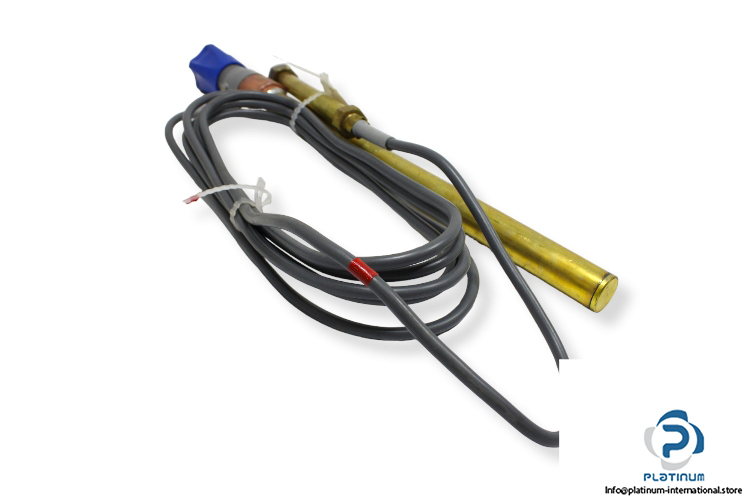

Spirax Sarco SA121 Temperature Control System
The Spirax Sarco SA121 is a self-acting temperature control system designed for precise temperature regulation in industrial heating and process control applications. The system operates without external power and utilizes a sensor, capillary tube, and actuator mechanism to maintain stable temperature control.
Manufacturer: SPIRAX SARCO
Type: Self-acting Temperature Control System
Model: SA121
Temperature Ranges:
Dimensions:
| Sensor Material | Brass |
| Actuator Material | Brass |
| Capillary Tube | Copper With PVC Coated Armoured Covering |
| Adjustment Head | Polypropylene |
| Union Kit | Brass |
| Range 1 | -15 °C To 50 °C |
| Range 2 | 40 °C To 105 °C |
| Range 3 | 95 °C To 160 °C |
| Standard Capillary Length | 4 m |
| Nominal Diameter DN | 25 mm |
| Sensor Length | 252 mm |
| Overall Height | 594 mm |
| Union Kit | Direct Immersion |
| Over Temperature Protection | 55 °C Over Set Value To 190 °C Maximum |
