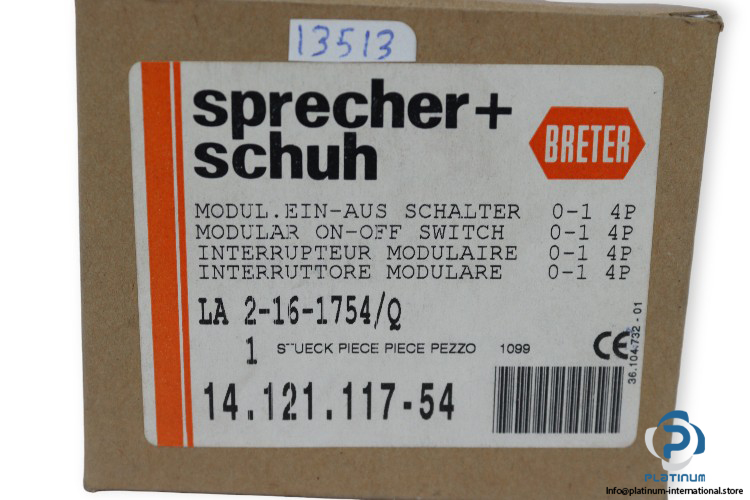

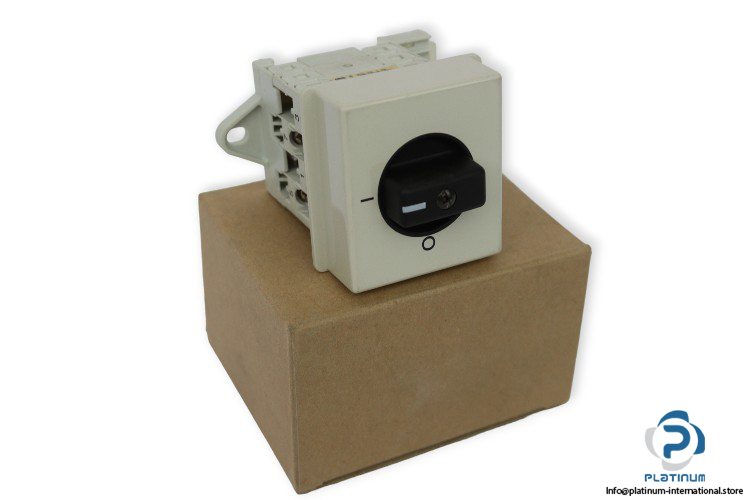

Sprecher+Schuh LA 2-16-1754/Q ON-OFF Switch

Manufacturer: Sprecher+Schuh / Breter
Type: On-Off Switch
Model: LA2161754/Q
Part No.: 14.121.117.54

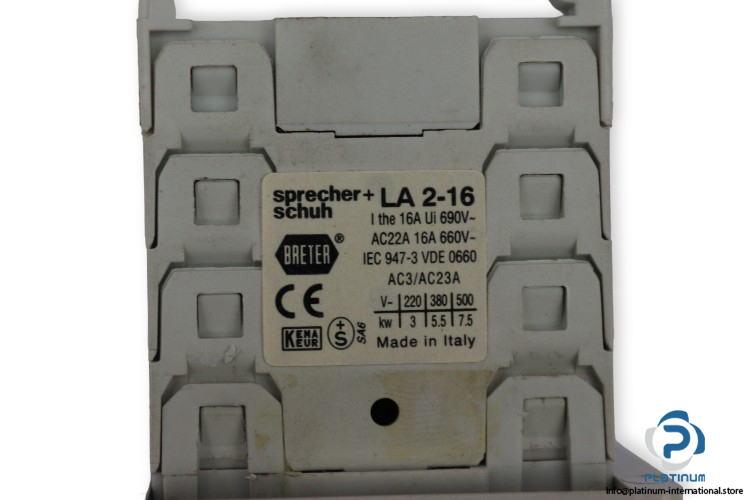

Thermal current Ith: 16 A
Rated Insulation Voltage Ui: 690 V AC
Switching rating AC22A: 660 V AC,16 A
Standard: IEC 947-3 , VDE 0660
Power Consumption:
3 kW (220 V AC)
5.5 kW (380 V AC)
7.5 kW (500 V AC)
Function Switching angle: 0-1 (90°)
No. of Poles: 4
Switch blanks: 3
Protection degree: IP20
Depth: 69 mm
