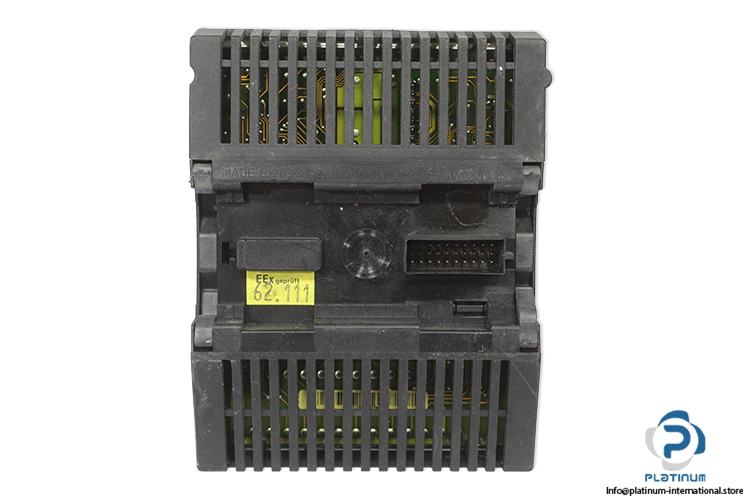

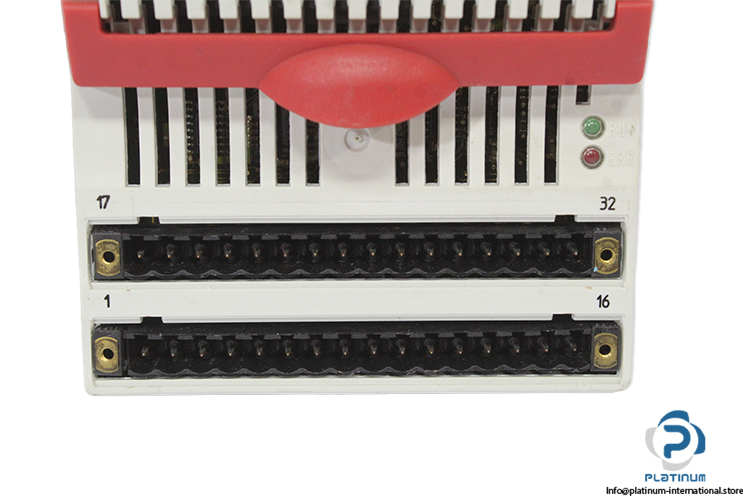

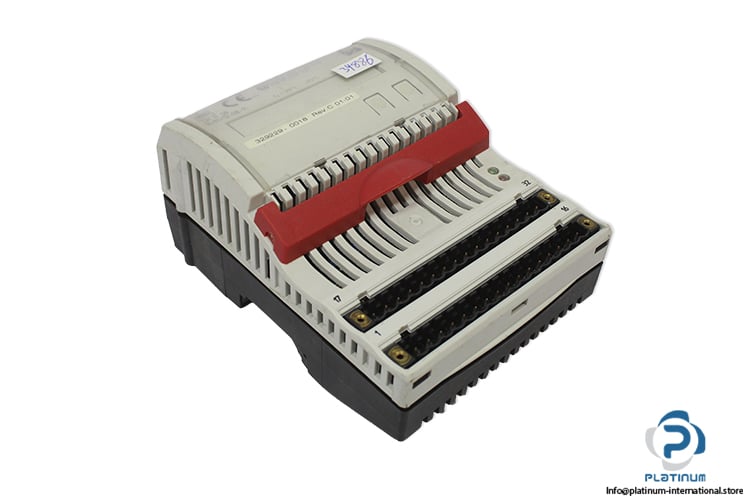

Stahl 9480/12-08-11 Temperature Input Module

In stock5 unitsReady to ship

99,99$

Temperature Input Module

STAHL TIM R 08 temperature input module for the IS1 system featuring 8 channels, RTD and potentiometer sensor compatibility, multiplexed measuring current, and explosion-proof design for industrial applications.

Manufacturer
STAHL
SKU
1096067
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

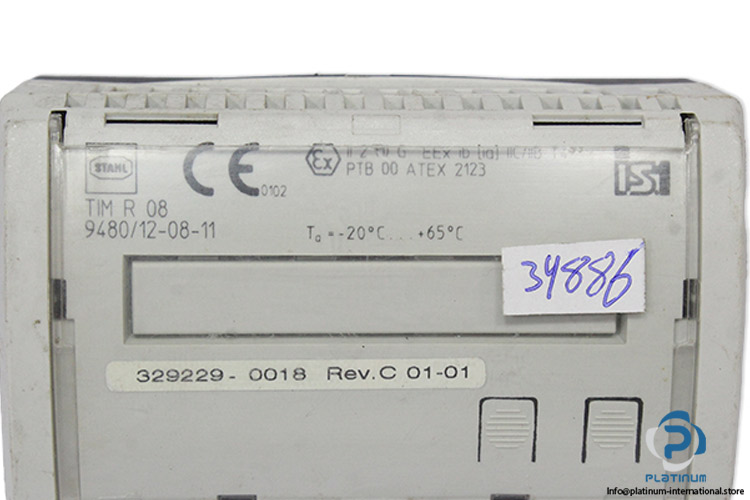

STAHL TIM R 08 Temperature Input Module

The STAHL TIM R 08 temperature input module from the IS1 system is designed for reliable temperature signal acquisition in hazardous and industrial environments. This module supports multiple RTD and potentiometer sensor types and provides accurate measurement performance with multiplexed current input.

Manufacturer: STAHL

Type: Temperature Input Module

Model: TIM R 08

Order No.: 9480/12-08-11

Code: 329229-0018

Revision: C 01-01

Series: 9480

System: IS1

Connectable Sensors

Max. Voltage Uo6.51 V
Max. Current Io26.3 mA
Max. Power Po42.8 mW
Max. Capacitance Ca For IIC1.6 mF
Max. Inductance La For IIC5 mH
Inputs “ Number Of Channels8
Signal Range0 “ 10 kOhm
Measuring Current0.2 mA multiplexed
Max. Line Resistance Per Conductor100 Ohm
Linearity (Parameterizable)Temperature linear, resistance linear
Power Supply “ Max. Power Consumption1.6 W
Max. Power Loss1.6 W
Ambient Temperature-20 ... +65 °C
Explosion ProtectionExplosion proof
Pt100-200 ... +850 °C / 0.1 K
Pt500-200 ... +850 °C / 0.1 K
Pt1000-200 ... +850 °C / 0.1 K
Potentiometer (3-wire-circuit)0 “ 500 Ohm / 0.02 Ohm
Potentiometer (3-wire-circuit)0 “ 2.5 kOhm / 0.10 Ohm
Potentiometer (3-wire-circuit)0 “ 5 kOhm / 0.20 Ohm
Potentiometer (3-wire-circuit)0 “ 10 kOhm / 0.4 Ohm
