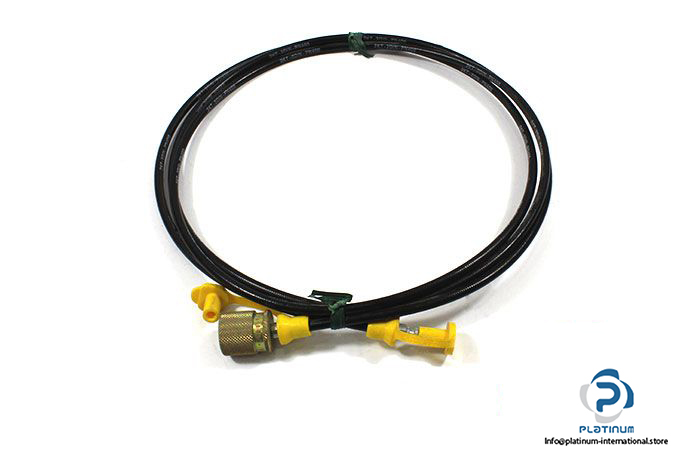

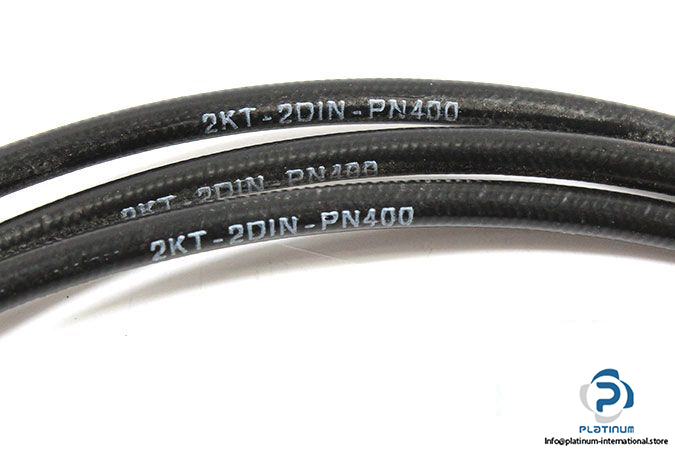

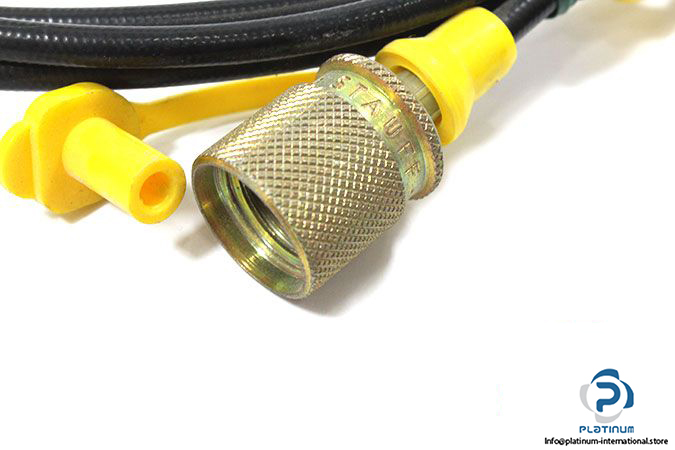

Stauff Test 20 Test Coupling
Manufacturer: STAUFF
Type: TEST COUPLING WITH PISTON VALVE
Model: TEST 20
Application:
- Stauff Test 20 Fittings allows connection between two fittings
- Perfect for remote mounting transmitters/gauges
- Hydraulic Pipe, Pneumatic Connections, Gas pipe
- Monitoring and control of pressure
- Venting
- Sampling in high- and low-pressure systems
Material: Steel, zinc with nickel-plated
Connection Thread Size: M16
Hose Outside Diameter: 5 mm
Minimum Bend Radius: 20 mm
Max. Operating Pressure: 630 bar
Max. Operating Temperature: -35 °C
Min. Operating Temperature: 100 °C
Weight: 0.08 kg
