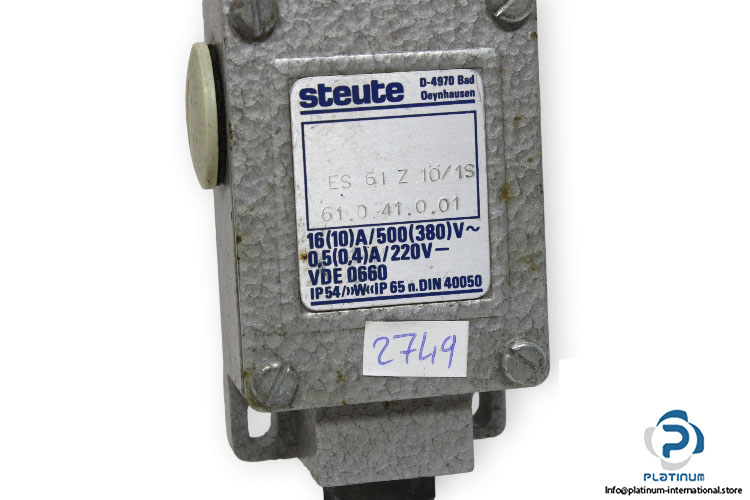

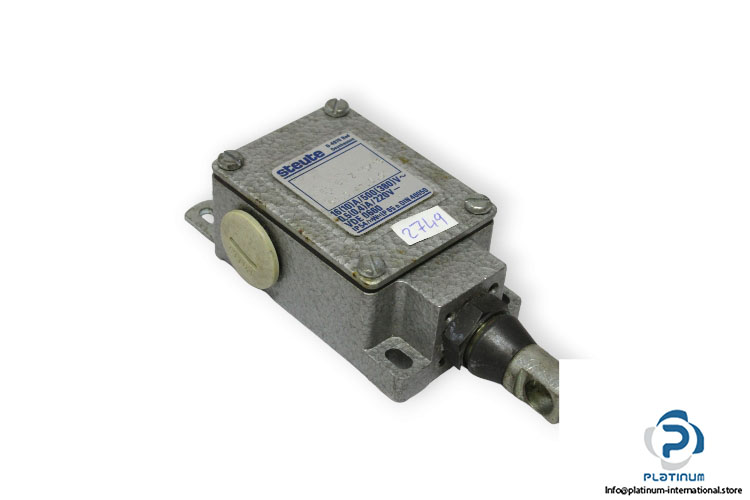

Steute ES 61 Z 10/1S Pull-Wire Switch

Manufacturer: Steute
Type: Pull-wire switch
Model: ES 61 Z 10/1S
Part No.: 61.0.41.0.01

Rated operating Voltage Ue: 500(380) V AC / 220 V DC
Rated operating current Ie: 16(10) A AC/ 0.5(0.4) A DC
Rated insulation voltage Ui: 400 V
Rated impulse withstand voltage Uimp: 6 kV
Conventional thermal current Ith: 16 A
Switching elements: 1 Normally closed contact, 1 Normally open contact, type Zb
Contact material: silver
Switching system: slow action
Connection: screw connection terminals
Cable cross-section: max. 2.5 mm² (incl. conductor ferrules)
Ambient Temperature: -20 … +80 °C
Degree of protection: IP65
Material: Enclosure: aluminium die-cast, powder-coated, Cover: steel, powder-coated
