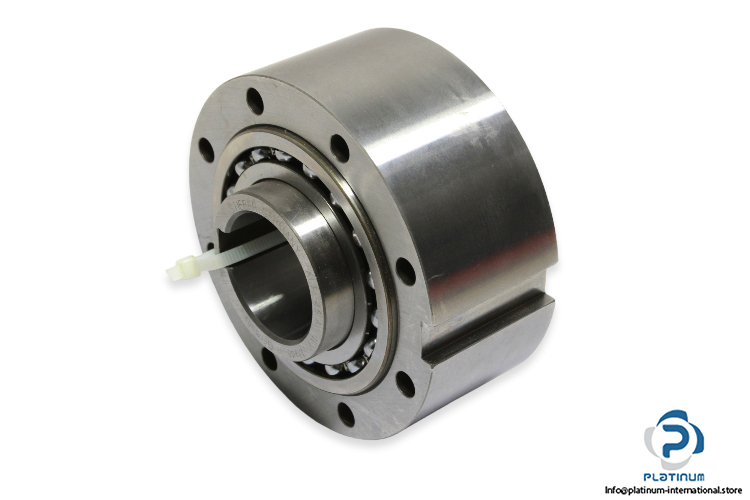

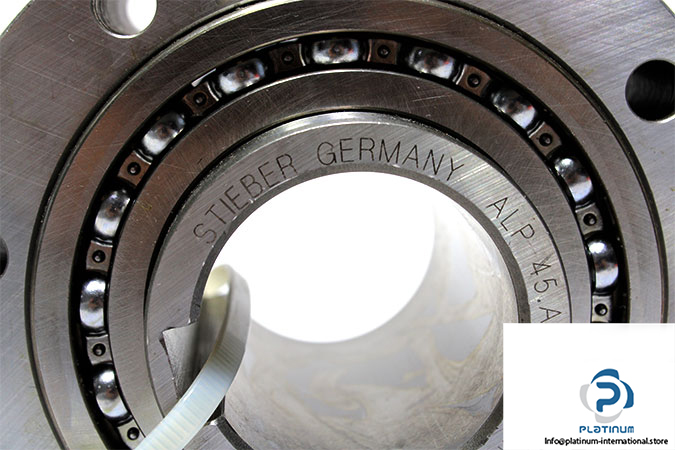

Stieber ALP 45.A Roller Freewheel Clutch Bearing

Manufacturer: STIEBER

Type: Roller Type Freewheel With Keyways

Model: ALP45 A

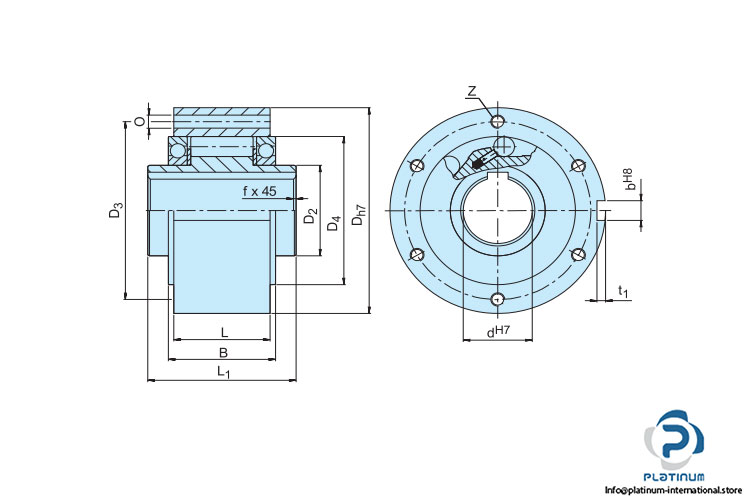

Dimensions

Bore Diameter d^H7: 45 mm

Outer diameter D_h7: 130 mm

Width L₁: 86 mm

L: 56.3 mm

D₂: 60 mm

B: 62.1 mm

Keyway width b^H8: 14 mm

T_KN: 1125 Nm

Drag torque T_r: 140 Ncm

No. of holes Z: 8
